RF Circulators and Isolators

Mfr. Part #	Availability	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Frequency	Isolation	Power - Average Forward	Insertion Loss	VSWR	Connector Type	Supplier Device Package

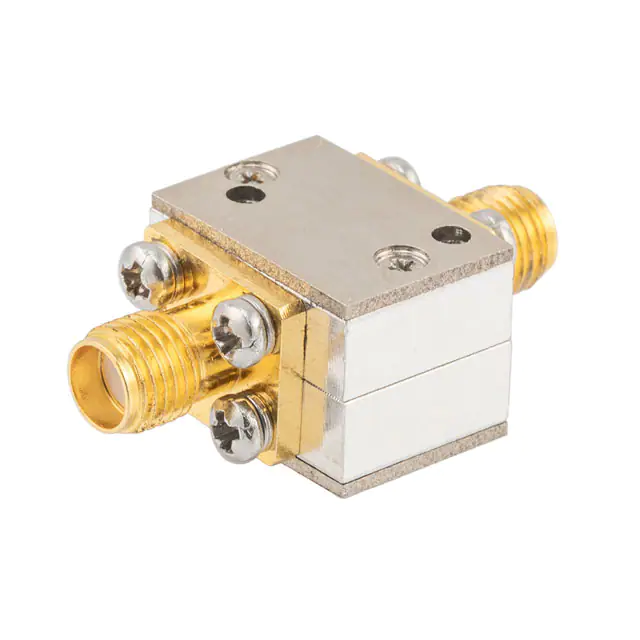

PE83IR1028 12-18GHZ ISLTR 30W SMA Pasternack	4	RFQ	Datasheet	-	Module, SMA Connectors	Bag	Active	Isolator	12 GHz ~ 18 GHz	20dB (Min)	-	0.5dB (Max)	1.35	SMA-FEMALE	Module
PE83IR1031 6-18GHZ ISLTR 10W SMA(F-M) Pasternack	4	RFQ	Datasheet	-	Module, SMA Connectors	Bag	Active	Isolator	6 GHz ~ 18 GHz	10dB (Min)	-	1.5dB (Max)	1.6	SMA-FEMALE, SMA-MALE	Module
PE83IR1010A High Power Isolator With 16 dB I Pasternack	16	RFQ	Datasheet	-	Module, SMA Connectors	Retail Package	Active	Isolator	8 GHz ~ 18 GHz	16dB (Min)	50 W	0.6dB (Max)	1.45	SMA-FEMALE	-
PE83IR1040 4-8GHZ ISLTR 30W SMA Pasternack	5	RFQ	Datasheet	-	Module, SMA Connectors	Bag	Active	Isolator	4 GHz ~ 8 GHz	19dB (Min)	-	0.5dB (Max)	1.35	SMA-FEMALE	Module
PE83IR1020 Dual Junction Isolator With 36 d Pasternack	3	RFQ	Datasheet	-	Module	Retail Package	Active	Isolator	4 GHz ~ 8 GHz	36dB (Min)	10 W	1dB	1.3	TYPE-N FEMALE, SMA-FEMALE	Module
PE8421 High Power Isolator With 18 dB I Pasternack	4	RFQ	Datasheet	-	Module, SMA Connectors	Retail Package	Active	Isolator	698 MHz ~ 960 MHz	18dB (Min)	1 kW	0.35dB (Max)	1.3	TYPE-N FEMALE	-
PE8413 Circulator With 20 dB Isolation Pasternack	7	RFQ	Datasheet	-	Module	Retail Package	Active	Circulator	7 GHz ~ 12.4 GHz	20dB	10 W	0.6dB (Max)	1.25	TYPE-N FEMALE	Module
PE83IR1030 6-18GHZ ISLTR 10W SMA(M-F) Pasternack	2	RFQ	Datasheet	-	Module, SMA Connectors	Bag	Active	Isolator	6 GHz ~ 18 GHz	10dB (Min)	-	1.5dB (Max)	1.6	SMA-FEMALE, SMA-MALE	Module

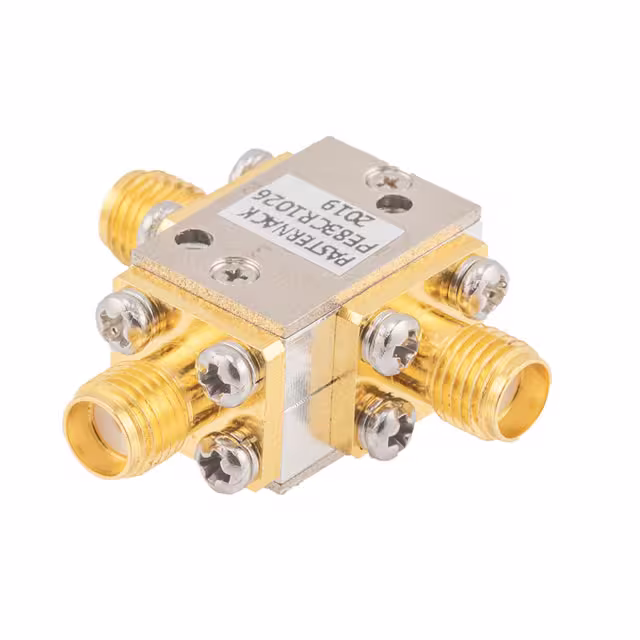

PE83CR1026 CIR 8-12GHZ SMA 10W Pasternack	5	RFQ	Datasheet	-	Module, SMA Connectors	Bag	Active	Circulator	8 GHz ~ 12 GHz	18dB (Min)	-	0.6dB (Max)	1.5	SMA-FEMALE	Module
PE83CR1012 CIR 18-26.5GHZ SMA 50W Pasternack	13	RFQ	Datasheet	-	Module, SMA Connectors	Bag	Active	Circulator	18 GHz ~ 26.5 GHz	17dB (Min)	-	0.6dB (Max)	1.4	SMA-FEMALE	Module
PE83CR1011 HIGH POWER CIRCULATOR WITH 20 DB Pasternack	7	RFQ	Datasheet	-	Module, SMA Connectors	Retail Package	Active	Circulator	11 GHz ~ 18 GHz	20dB (Min)	50 W	0.6dB (Max)	1.25	SMA-FEMALE	-
PE8422 High Power Circulator With 20 dB Pasternack	2	RFQ	Datasheet	-	Module	Retail Package	Active	Circulator	380 MHz ~ 460 MHz	20dB (Min)	1 kW	0.35dB (Max)	1.25	SMA-FEMALE	-
PE83CR1014 Dual Junction Circulator with 36 Pasternack	4	RFQ	Datasheet	-	Module	Retail Package	Active	Circulator	1 GHz ~ 2 GHz	36dB (Min)	10 W	1.2dB (Max)	1.35	TYPE-N FEMALE	Module
PE8412 Circulator With 18 dB Isolation Pasternack	6	RFQ	Datasheet	-	Module	Retail Package	Active	Circulator	4 GHz ~ 8 GHz	18dB (Min)	10 W	0.6dB (Max)	1.3	TYPE-N FEMALE	Module
PE8424 High Power Isolator With 20 dB I Pasternack	4	RFQ	Datasheet	-	Module, SMA Connectors	Retail Package	Active	Isolator	380 MHz ~ 460 MHz	20dB (Min)	100 W	0.35dB (Max)	1.25	SMA-FEMALE	-
PE83CR1007 High Power Circulator With 18 dB Pasternack	11	RFQ	Datasheet	-	Module	Retail Package	Active	Circulator	4 GHz ~ 8 GHz	18dB (Min)	50 W	0.6dB (Max)	1.3	TYPE-N FEMALE	-
PE83CR1021 Dual Junction Circulator With 40 Pasternack	7	RFQ	Datasheet	-	Module, SMA Connectors	Retail Package	Active	Circulator	7 GHz ~ 12.4 GHz	18dB	5 W	1.2dB (Max)	1.3	SMA-FEMALE	-
PE83IR1007 High Power Isolator With 18 dB I Pasternack	8	RFQ	Datasheet	-	N-Type In-Line Module	Retail Package	Active	Isolator	4 GHz ~ 8 GHz	18dB (Min)	50 W	0.6dB (Max)	1.3	TYPE-N FEMALE	Module
PE8312 Isolator With 18 dB Isolation Fr Pasternack	5	RFQ	Datasheet	-	N-Type In-Line Module	Retail Package	Active	Isolator	4 GHz ~ 8 GHz	18dB (Min)	10 W	0.6dB (Max)	1.3	TYPE-N FEMALE	Module
PE83CR1005 High Power Circulator with 20 dB Pasternack	10	RFQ	Datasheet	-	Module	Retail Package	Active	Circulator	2 GHz ~ 4 GHz	20dB (Min)	100 W	0.6dB (Max)	1.3	TYPE-N FEMALE	-

Total 2310 Record«Prev 1... 7 8 9 101112 13 14...116 Next»

RF Circulators and Isolators Electronic Components

Explore RF Circulators and Isolators electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
