RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Y4066RF ANT 418MHZ YAGI N FEM BRKT MT |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 418MHz | 406MHz ~ 430MHz | Yagi, 6-Element | 1 | 1.5 | - | 10.2dBd | - | - | N Type Female | - | - | - | Bracket Mount | 44.000" (111.76cm) | - |
|
|
6GK58956ML000AA0IRC ANTENNA ANT895-6ML |
0 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | - | - | 3dBi | - | - | N Type Female | IP67 | - | - | Magnetic | 2.008" (51.00mm) | GPS |
|

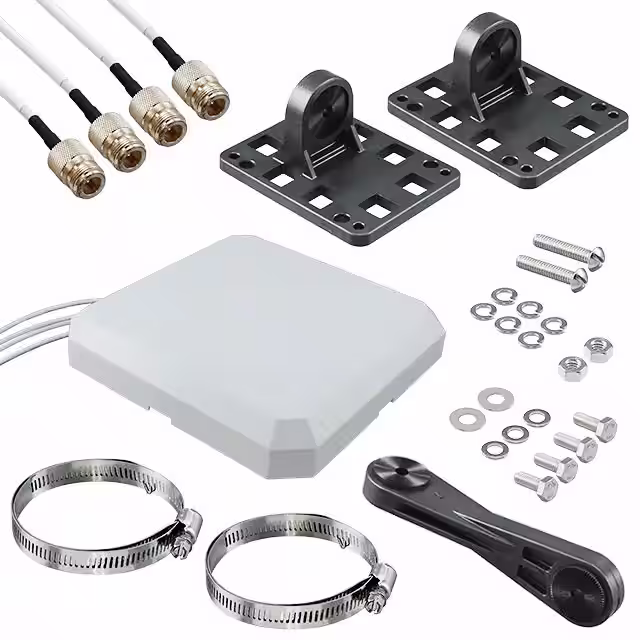

PDQ24496-91NFRF ANT 2.4/5.4GHZ PANEL N 91CM |
0 |
|
Datasheet |
- | Bulk | Active | WiFi | Wide Band | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.95GHz | Panel | 2 | 2 | - | 6.4dBi | - | - | N Type Female | IP67 | - | - | Bracket Mount | 1.614" (41.00mm) | Wi-Fi |
|
|
HG2414DP-3NFANTPANEL 2.4GHZ 14DBI |
0 |
|
- |
HG | Bag | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Panel | 1 | 1.5 | - | 14dBi | 10 W | - | N Type Female (3) | - | - | - | Mast Mount | 0.980" (24.89mm) | 802.11b/g/n, Wi-Fi, WiMax, WLAN |
|
|
FMANOM1051ANTENNA TYPE N JACK 423 MHZ-443 |
0 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 423MHz ~ 443MHz | Whip, Straight | 1 | 1.5 | - | 8dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 23.600" (599.44mm) | General Purpose |
|
|
FMANLP1012ANTENNA TYPE N JACK 698 MHZ-4.2 |
0 |
|
- |
- | Bag | Active | Cellular, WiFi | Wide Band | 2.449GHz | 698MHz ~ 4.2GHz | Panel | 1 | 1.7 | - | 11dBi | 100 W | Cable - 200mm | N Type Female | - | - | - | Bracket Mount | 16.100" (408.94mm) | 3G, 4G, 5G, 802.11a/b/g/n/ac/ad/ah/ax, CBRS, GSM, IoT, LoRa, LPWAN, LTE-M, M2M, NB-IoT, Wi-Fi, WLAN |
|
|
FMANKIT1011ANTENNA KIT 8 DBI 20 FT LOW LOSS |
0 |
|
- |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 914MHz | 900MHz ~ 928MHz | Whip, Straight | 1 | 1.6 | - | 8dBi | 50 W | Cable - 6.09m | N Type Female | - | - | - | Bracket Mount | 57.300" (145.54cm) | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|
SA24-90-17-WBRF ANT 2.4GHZ PANEL N FEM BRKT |
0 |
|
Datasheet |
- | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.3GHz ~ 2.7GHz | Panel | 1 | 1.5 | - | 17dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 2.520" (64.00mm) | Wi-Fi, WiMax™ |
|
|
GPS-17751GNSS MULTI-BAND L1/L2 SURVEYING |
0 |
|
- |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.238GHz, 1.585GHz | 1.198GHz ~ 1.278GHz, 1.555GHz ~ 1.615GHz | Dome | 2 | 2 | - | 5dBi, 5dBi | - | LNA | TNC Female | IP67 | - | - | Screw Mount | 2.185" (55.50mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
|
Y4303RF ANT 440MHZ YAGI N FEM BRKT MT |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 440MHz | 430MHz ~ 450MHz | Yagi, 3-Element | 1 | 1.5 | - | 7.1dBd | - | - | N Type Female | - | - | - | Bracket Mount | 20.157" (512.00mm) | - |
|
|
MA931.W.A.LBICGH.001GUARDIAN MA931.W 6-IN-1 ADHESIVE |
0 |
|
Datasheet |
Guardian | Box | Active | Cellular, Navigation, WiFi | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.575.42GHz,1.561098GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 3.45GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.563GH, 1.574GHz ~ 1.575GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz | Module | 12 | 2, 3 | 10dB | 3.18dBi, 3.6dBi, 2.14dBi, 3dBi, 1.98dBi, 3.01dBi, 3.98dBi, 4.37dBi, 4.37dBi, 4.35dBi, 3.7dBi, 4.49dBi, 4.84dBi | - | Cable - 1m, LNA, Filter | RP-SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | Beidou, DCS, Galileo, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
|
PAL90209H-FNFRF ANT 915MHZ PANEL N FEM CHASS |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Panel | 1 | 1.3 | - | 9dBic | 10 W | - | N Type Female | IP67 | - | - | Chassis Mount | 1.320" (33.53mm) | - |
|
|
1399.32.00151399.32.0015 |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 2.192GHz, 3.75GHz, 4.75GHz, 5.575GHz | 1.695GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.5GHz ~ 5GHz, 5.15GHz ~ 6GHz | Module | 4 | 1.5 | - | 4.5dBi, 4.5dBi, 6dBi, 6.5dBi | - | - | N Type Female (2) | - | - | - | Chassis Mount | 1.260" (32.00mm) | General Purpose |
|
|
SA24-120-16-WBRF ANT 2.4GHZ PANEL N FEM BRKT |
0 |
|
Datasheet |
- | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.3GHz ~ 2.7GHz | Panel | 1 | 1.5 | - | 16dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 2.520" (64.00mm) | Wi-Fi, WiMax™ |
|
|
PCTHPDLTEWIFI-SF-1MANTENNA, MULTIBAND, DUAL LTE-MSM |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FMANFP1028ANTENNA TNC PLUG 902 MHZ-928 MHZ |
0 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Panel | 1 | 1.3 | - | 10dBi | 20 W | Cable - 2m | RP-TNC Male | - | - | - | Connector Mount | 1.180" (29.97mm) | General Purpose |
|
|
FMANKIT1031ANTENNA KIT 6 DBI 20 FT LOW LOSS |
0 |
|
- |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 850MHz | 824MHz ~ 876MHz | Whip, Straight | 1 | 1.5 | - | 6dBi | 100 W | Cable - 6.09m | N Type Female | - | - | - | Bracket Mount | 22.200" (563.88mm) | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|
|
GPSTMG-HR-26NMSCLGPS TIMING ANT, 26 DB, HR, RED C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GPS-TMG-HR-26NMSCLGPS TIMING ANT, 26 DB, HR, RED C |
0 |
|
Datasheet |
GPS-TMG-HR-26N | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 3.5dBic | - | LNA | N Type Female | - | - | - | Bracket Mount | 5.000" (127.00mm) | GNSS, GPS |
|
|
HG245806U-4RSPANTOMNI 2.4/5GHZ 6DBI |
0 |
|
- |
HG | Bag | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | - | Dome | 2 | - | - | 6dBi, 6dBi | - | - | RP-SMA | - | - | - | Bracket Mount | 4.000" (101.60mm) | 802.11a/b/g/n/ac, ISM, UNII |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
