RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HG3512UP-NFANTOMNI 3.5GHZ 12DBI |
0 |
|
- |
HG | Bag | Active | Cellular, WiFi | UHF (3GHz ~ 4GHz) | 3.55GHz | 3.4GHz ~ 3.7GHz | Whip, Straight | 1 | 1.5 | - | 11.6dBi | 100 W | - | N Type Female | - | - | - | Mast Mount | 36.960" (938.78mm) | 802.16e, SOFDMA, WiMax, WLAN |
|
MA671.A.CGH.003RF ANT 4.7GHZ DOME RP-SMA MALE |
0 |
|
Datasheet |
Spartan | Box | Obsolete | - | SHF (f > 4GHz) | 4.7GHz | 4.5GHz ~ 4.9GHz | Dome | 1 | 2 | - | 4.4dBi | - | - | RP-SMA Male | IP67 | - | - | Panel Mount | 1.969" (50.00mm) | - |
|

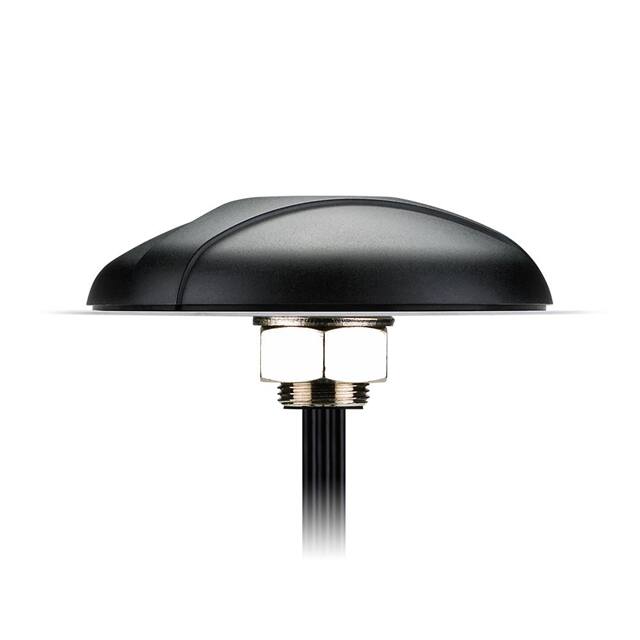

MA672.A.CGH.003RF ANT 5.4GHZ DOME RP-SMA PNL MT |
0 |
|
Datasheet |
Spartan | Box | Obsolete | - | SHF (f > 4GHz) | 5.4GHz | 5GHz ~ 5.8GHz | Dome | 1 | 2 | - | 4.84dBi | - | Cable - 3m | RP-SMA Male (3) | IP67 | - | - | Panel Mount | 1.400" (35.55mm) | - |
|
|
AEACAC055027-SG4L2CUSTOM: GNSS - EXTERNAL HELICAL |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | Wide Band | - | - | Dome | 1 | 2 | - | 4.5dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | - | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
|
1399.35.00041399.35.0004 |
0 |
|
- |
- | Bulk | Active | Cellular, WiFi | Wide Band | 2.545GHz, 5.542GHz | 2.4GHz ~ 2.69GHz, 5.15GHz ~ 5.935GHz | Module | 2 | 1.7 | - | 4dBi, 6dBi | - | - | QMA Female (3) | IP65 | - | - | Chassis Mount | 1.260" (32.00mm) | 802.11b/g/a/h/p/n/ac, LTE, Wi-Fi, WLAN |
|
|
1356.35.00031356.35.0003 |
0 |
|
Datasheet |
- | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.542GHz | 5.15GHz ~ 5.935GHz | Module | 1 | 1.7 | - | 8dBi | - | - | QMA Female (3) | IP66, IP67 | - | - | Chassis Mount | 3.976" (101.00mm) | 802.11a/h/n/p/ac, WLAN |
|
|
1399.31.00101399.31.0010 |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 744MHz, 875MHz, 1.533GHz, 1.932GHz, 2.435GHz, 3.5GHz, 3.7GHz | 698MHz ~ 790MHz, 790MHz ~ 960MHz, 1.447GHz ~ 1.66GHz, 1.695GHz ~ 2.17GHz, 2.17GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz, 3.6GHz ~ 3.8GHz | Module | 7 | 1.5, 1.7 | - | 2dBi, 2dBi, 4dBi, 6dBi, 7dBi, 6dBi, 6dBi | - | Cable - 350mm | 4.3/10 - Female (2) | - | - | - | Chassis Mount | 3.425" (87.00mm) | CDMA, GSM, LTE, UMTS, WLAN |
|
|
FM51YA1019ANTENNA TYPE N JACK 880 MHZ-960 |
0 |
|
Datasheet |
- | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 920MHz | 880MHz ~ 960MHz | Yagi | 1 | 1.5 | - | 7dBi | 150 W | Cable - 914.4mm | N Type Female | IP55 | - | - | Bracket Mount | 2.400" (60.96mm) | GSM, IoT, ISM, LoRa, LPWAN, M2M, RFID, WLAN |
|
|
FMMAROM1007ANTENNA UHF JACK 156 MHZ-163 MHZ |
0 |
|
Datasheet |
- | Bag | Active | General ISM | VHF (f < 300MHz) | 159.5MHz | 156MHz ~ 163MHz | Whip, Straight | 1 | 1.5 | - | 7dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | UHF Female | - | - | - | Bracket Mount | 125.980" (319.99cm) | General Purpose |
|
|
FM51PD1007ANTENNA SMA4.95 MHZ-7.125 GHZ |
0 |
|
- |
- | Bag | Active | Cellular, WiFi | SHF (f > 4GHz) | 6.037GHz | 4.95GHz ~ 7.125GHz | Dish | 1 | 2, 2.5 | - | 25dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | RP-SMA | - | - | - | Bracket Mount | 2.430" (61.72mm) | 5G, Wi-Fi |
|
|
HG4971DP-25D-RSP4950 MHZ TO 7125 MHZ, 1-FOOT PAR |
0 |
|
Datasheet |
HG | Bulk | Active | Cellular, WiFi | Wide Band | 5.025GHz, 5.5GHz, 6.512GHz | 4.95GHz ~ 5.1GHz, 5.1GHz ~ 5.9GHz, 5.9GHz ~ 7.125GHz | Parabolic | 3 | 2, 2.5 | - | 24dBi, 24.5dBi, 25dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | RP-SMA Female (2) | - | - | - | Mast Mount | 6.030" (153.16mm) | 5G, Wi-Fi |
|
|
LCANOM1051ANTENNA OMNI 380-470 MHZ 8 DBI N |
0 |
|
- |
LCAN | Bag | Active | General ISM | VHF (f < 300MHz) | 433MHz | 423MHz ~ 443MHz | Whip, Straight | 1 | 1.5 | - | 8dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 23.600" (599.44mm) | General Purpose |
|
|
AP-M2M2-CCWWG-Q-S22222-RP34-BL-15ANTENNA PLUS M2MAX V2 MIMO ANTEN |
0 |
|
- |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FMANKIT1030ANTENNA KIT 6 DBI 10 FT LOW LOSS |
0 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 850MHz | 824MHz ~ 876MHz | Whip, Straight | 1 | 1.5 | - | 6dBi | 100 W | Cable - 3.05m | N Type Female | - | - | - | Bracket Mount | 22.200" (563.88mm) | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|
RAZ62312DMRF ANT 802MHZ/1.582GHZ MOD PANEL |
0 |
|
Datasheet |
RAZORBACK | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 802MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz | 644MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Module | 6 | 2 | - | 4.6dBi, 4.9dBi, 6dBi, 6.6dBi | 45 W | Cable - 5.18m, LNA | SMA Male (3), RP-SMA Male (3) | IP67 | - | - | Panel Mount | 3.644" (92.55mm) | GPS, LTE, Wi-Fi |
|
|
FPMI34005-DP4MSMAFLAT PANEL ANTENNA, 3.3-4.2GHZ, |
0 |
|
- |
VenU® | Bulk | Active | General ISM | Wide Band | 3.75GHz | 3.3GHz ~ 4.2GHz | Panel | 1 | 2.2 | - | 3.5dBi | 20 W | Cable - 914.4mm | SMA Male | IP67 | - | - | Bracket Mount | 1.339" (34.00mm) | General Purpose |
|
|
LCANOM1073477 MHZ OMNI ANTENNA 6.5 DBI, VE |
0 |
|
Datasheet |
LCAN | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 477MHz | 472MHz ~ 482MHz | Whip, Straight | 1 | 2 | - | 6.5dBi | 100 W | Cable - 4.49m | FME Male | - | - | - | Connector Mount | 29.530" (750.06mm) | General Purpose |
|
|
LCANOM1074477 MHZ OMNI ANTENNA 6.5 DBI, VE |
0 |
|
Datasheet |
LCAN | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 477MHz | 472MHz ~ 482MHz | Whip, Straight | 1 | 2 | - | 6.5dBi | 100 W | Cable - 4.49m | FME Male | - | - | - | Connector Mount | 29.530" (750.06mm) | General Purpose |
|
|
LCANOM1075698-2700 MHZ OMNI ANTENNA 6.5 DB |
0 |
|
Datasheet |
LCAN | Bulk | Active | General ISM | Wide Band | 1.699GHz | 698MHz ~ 2.7GHz | Whip, Straight | 1 | 1.5 | - | 6.5dBi | 100 W | Cable - 4.49m | SMA Male | - | - | - | Connector Mount | 29.530" (750.06mm) | General Purpose |
|
|
LCANOM1076698-2700 MHZ OMNI ANTENNA 6.5 DB |
0 |
|
Datasheet |
LCAN | Bulk | Active | General ISM | Wide Band | 1.699GHz | 698MHz ~ 2.7GHz | Whip, Straight | 1 | 1.5 | - | 6.5dBi | 100 W | Cable - 4.49m | SMA Male | - | - | - | Connector Mount | 29.530" (750.06mm) | General Purpose |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
