RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NMOHFGPSFMESMAANT NMOHFGPS ANT WITH 17' |
0 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 2 | - | 5dBic | - | Cable - 5.18m | FME Female, SMA Male | IP65 | - | - | Through Hole | 0.700" (17.78mm) | GPS |
|
|
NMOHFGPSFMENOCONNANT CBL NMO TAP POGO NMOHF GPS |
0 |
|
- |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 2 | - | 5dBic | - | Cable - 5.18m | FME Female | IP65 | - | - | Through Hole | 0.700" (17.78mm) | GPS |
|
|
HG2403MGURB-SMANTMAGMNT 2.4GHZ 3DBI BLACK |
0 |
|
- |
HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 100 W | Cable - 3.05m | N Type Female, N Type Male | - | - | - | Magnetic | 3.000" (76.20mm) | 802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN |
|

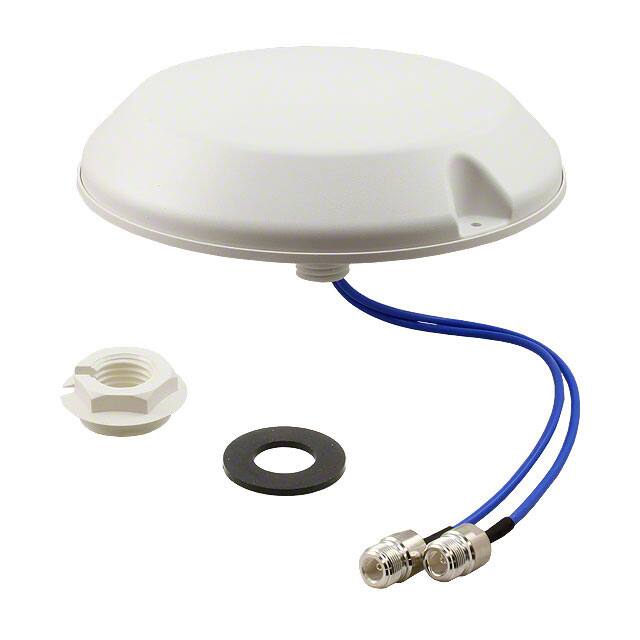

CMD69273P-46NFRF ANT 700MHZ/850MHZ MOD CAB 18" |
0 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Module | 8 | 2 | - | 3.9dBi, 3.8dBi, 3.5dBi, 6.8dBi, 5.1dBi, 4.7dBi, 6.3dBi, 7.4dBi | 50 W | Cable - 1.2m | N Type Female | - | - | - | Panel Mount | 1.713" (43.50mm) | LTE, WiMax™, WLAN |
|
|
FM51YA1013TYPE N JACK 900 MHZ 13 DBI SS YA |
0 |
|
Datasheet |
- | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Yagi | 1 | 1.5 | - | 13dBi | 100 W | Cable - 457.2mm | N Type Female | - | - | - | Bracket Mount | 64.100" (162.81cm) | GSM, IoT, ISM, LoRa, LPWAN, M2M, RFID, WLAN |
|
|
FM51YA1002TYPE N JACK 2.4 GHZ 12 DBI YAGI |
0 |
|
Datasheet |
- | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Panel | 1 | 1.5 | - | 12dBi | 50 W | Cable - 304.8mm | N Type Female | - | - | - | Bracket Mount | 12.000" (304.80mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
FM51MP1008ANTENNA NMO MOUNT440 MHZ-480 MHZ |
0 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 460MHz | 440MHz ~ 480MHz | Whip, Straight | 1 | 2 | - | 3dBi | 150 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | NMO | - | - | - | Base Mount | 27.200" (690.88mm) | General Purpose |
|
|
FM51YA1003TYPE N JACK 2.4 GHZ 15 DBI YAGI |
0 |
|
Datasheet |
- | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Panel | 1 | 1.5 | - | 14.5dBi | 50 W | Cable - 304.8mm | N Type Female | - | - | - | Bracket Mount | 18.250" (463.55mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
LCSMA1014-50PK2412 - 2484 & 5150 - 5825 MHZ 0. |
0 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.448GHz, 5.487GHz | 2.412GHz ~ 2.484GHz, 5.15GHz ~ 5.825GHz | Stamped Metal | 2 | 2 | - | 0.5dBi, 3.5dBi | 1 W | Cable - 109.22mm | I-PEX | - | - | - | Surface Mount | 0.200" (4.00mm) | 802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
33-1829-06-0020ACCUTENNA 20MM |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2276GHz, 1.248GHz, 1.575GHz, 1.602GHz | 1.215GHz ~ 1.261GHz, 1.557GHz ~ 1.606GHz | Ceramic Patch | 4 | 1.8 | - | 3.7dBic, 4dBic | - | Cable - 20mm, LNA, Filter | MCX Male | IP67 | - | - | Chassis Mount | 0.480" (12.20mm) | Beidou, Galileo, GLONASS, GPS |
|
|
33-1829-03-0080CUSTOM ANTENNA |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2276GHz, 1.248GHz, 1.575GHz, 1.602GHz | 1.215GHz ~ 1.261GHz, 1.557GHz ~ 1.606GHz | Ceramic Patch | 4 | 1.8 | - | 3.7dBic, 4dBic | - | Cable - 80mm, LNA, Filter | MCX Male | IP67 | - | - | Chassis Mount | 0.480" (12.20mm) | Beidou, Galileo, GLONASS, GPS |
|
|
33-1889-00-3000ANTENNA |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
33-1829-00-3000ANTENNA |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
33-1825-00-3000ANTENNA |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NMOHFGPSSMASMAANT NMOHFGPS ANT WITH 17' |
0 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 2 | - | 5dBic | - | Cable - 5.18m | SMA Male (2) | IP65 | - | - | Through Hole | 0.700" (17.78mm) | GPS |
|
|
LCANKIT1025HGV-903U ANTOMNI 800MHZ 3DBI, RP |
0 |
|
- |
LCAN | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 850MHz | 824MHz ~ 876MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 100 W | Cable - 3.05m | N Type Female | - | - | - | Bracket Mount | 12.300" (312.42mm) | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|
|
GPPB-204-U3-B1GPS PLUS, 26 DB, PERMANENT, BLAC |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GPPB-204-S1-N1GPS PLUS, 26 DB, PERM, BLACK, 17 |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CRX150RF ANT 162MHZ WHIP STR UHF FEM |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | VHF (f < 300MHz) | 162MHz | 150MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 5dBi | 500 W | - | UHF Female | - | - | - | Bracket Mount | 115.748" (294.00cm) | - |
|
2885676RF ANT 900MHZ WHIP STR RP-SMA ML |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 900MHz | - | Whip, Straight | 1 | - | - | 2dBi | - | - | RP-SMA Male | IP55 | - | - | Connector Mount | 7.992" (203.00mm) | - |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
