RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-418-CW-RHRF ANT 418MHZ WHIP STR RP-SMA ML |
534 |
|
Datasheet |
RH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 413MHz ~ 423MHz | Whip, Straight | 1 | 1.9 | - | -6.7dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.008" (51.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
TG.19.0112RF ANT 892MHZ/1.9GHZ WHIP RA SMA |
147 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Right Angle | 2 | 2.3 | -10dB | 0dBi, 1.2dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 0.307" (7.80mm) | CDMA, GSM |
|
ANT-2.4-CW-HW-SMARF ANT 2.4GHZ WHIP STR SMA MALE |
452 |
|
Datasheet |
HW | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.3GHz ~ 2.6GHz | Whip, Straight | 1 | 2 | - | 3.2dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.724" (120.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
MIKROE-3372WIFI RUBBER ANTENNA |
248 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.5 | - | 9dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 11.614" (295.00mm) | Wi-Fi |
|
MIKROE-3371LTE RUBBER ANTENNA |
224 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 800MHz, 900MHz, 1.8GHz, 2.1GHz, 2.6GHz | 700MHz ~ 2.7GHz | Whip, Tilt | 5 | 3 | - | 5dBi | 20 W | - | SMA Male | - | - | - | Connector Mount | 8.268" (210.00mm) | 3G, 4G, LTE |
|
FXUWB10.01.0100CULTRA WIDE BAND FLEX ANTENNA 3.1 |
655 |
|
- |
- | Bag | Active | - | SHF (f > 4GHz) | 4.05GHz, 7.1GHz, 9.25GHz | 3.1GHz ~ 5GHz, 6GHz ~ 8.2GHz, 8.2GHz ~ 10.3GHz | FlexPIFA | 3 | 1.8, 2.2, 3 | - | 4.8dBi, 5.9dBi, 7.1dBi | 10 W | Cable - 100mm | SMA Male | - | - | - | Surface Mount | 0.004" (0.10mm) | UWB |
|
X9001248-4GMSMB3000L4G/CELLULAR MAGNET MOUNT EXTERNA |
1,875 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | - | -5.8dB, -5.2dB | -0.5dBi, -0.2dBi | - | Cable - 3m | SMA Male | IP65 | - | - | Magnetic | 3.228" (82.00mm) | 2G, 3G, LoRa, LTE Cat 1, LTE-M, M2M, NB-IoT, SigFox |
|
DBA6927C1-FSMAMRF ANT 698-960MHZ/1.71-2.7GHZ |
3,216 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Blade, Tilt | 2 | 2.5 | - | 0.5dBi, 2.2dBi | 3 W | - | SMA Male | - | - | - | Connector Mount | 9.016" (229.00mm) | AWS, GSM, LTE, PCS, UMTS, WiMax™ |
|
ANT-5GWWS5-SMARF ANT 617MHZ-6GHZ 5G TILT SMA |
257 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.9475GHz, 2.495GHz, 3.75GHz, 4.7GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Blade, Tilt | 10 | 1.7, 1.9, 2, 2.1, 2.3, 2.4, 2.5, 2.8, 4.5 | - | 1.4dBi, 1.1dBi, 1.1dBi, 2.3dBi, 2.8dBi, 8.5dBi, 9.9dBi, 5.4dBi, 4dBi, 5.1dBi | 30 W | - | SMA Male | - | - | - | Connector Mount | 7.130" (181.10mm) | 2G, 3G, 4G, 5G, LTE |
|

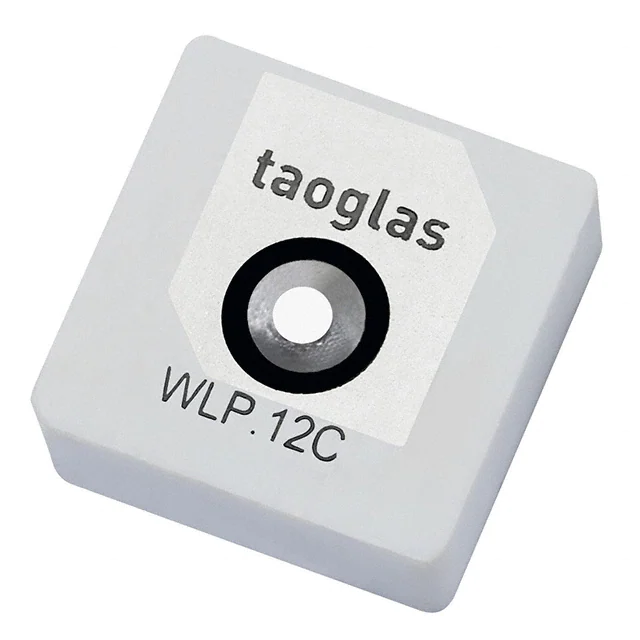

WLP.4958.12.4.A.02RF ANT 5.4GHZ CER PATCH PIN SMD |
263 |
|
Datasheet |
- | Tray | Active | 802.15.4, WiFi | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.825GHz | Ceramic Patch | 1 | 1.5 | - | 6dBic | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | WLAN, Zigbee™ |
|
ANT-2.4-CW-HW-TRF ANT 2.4GHZ WHIP STR RP-SMA ML |
475 |
|
Datasheet |
HWT-T | Bag | Active | Bluetooth | UHF (2GHz ~ 3GHz) | 2.475GHz | 2.35GHz ~ 2.6GHz | Whip, Straight | 1 | 2 | - | 3.2dBi | - | - | RP-SMA Female | - | - | - | Connector Mount | 4.724" (120.00mm) | General Purpose |
|
AFAG3030-SG3ANTENNA GNSS FLEX 100MM IPEX |
2,507 |
|
Datasheet |
AFAG | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.585GHz | 1.55GHz ~ 1.62GHz | PCB Trace | 1 | 2.5 | - | 2dBi ~ 3dBi | 3 W | Cable - 100mm | I-PEX | - | - | - | Adhesive | 0.008" (0.20mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
ANT-916-CW-QW-SMARF ANT 916MHZ WHIP STR SMA MALE |
195 |
|
Datasheet |
CW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 800MHz, 900MHz, 915MHz | 865MHz ~ 965MHz | Whip, Straight | 1 | 1.9 | - | 1.8dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.150" (80.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-DB1-VDP-RPSRF ANT 892MHZ/1.85GHZ FLAT BAR |
451 |
|
Datasheet |
VDP | Bulk | Active | - | Wide Band | 892MHz, 1.85GHz, 2.45GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.4GHz ~ 2.48GHz | Flat Bar | 3 | 1.5, 1.9, 1.9 | - | -1.8dBi, -1.7dBi, -1.3dBi | - | Cable - 3m | RP-SMA Male | - | - | - | Adhesive | 0.177" (4.50mm) | - |
|
|
ST1326-30-001-ARF ANTENNA STICK SMA PLUG WIDE B |
403 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 825MHz, 1.945GHz, 2.495GHz, 4.575GHz | 690MHz ~ 960MHz, 1.72GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5.85GHz | Whip, Straight | 4 | - | - | 5.1dBi, 3.9dBi, 4dBi, 3.2dBi | 2 W | - | SMA | - | - | - | Connector Mount | 5.945" (151.00mm) | 4G, LTE |
|
|
YG0035AAMAGGNSS L1&B1&G1 ACTIVE 3M SMAM |
521 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz | - | Dome | 2 | 2 | - | 1.5dBi, 1.5dBi | - | Cable - 3m, LNA | SMA Male | IP64 | - | - | Magnetic | 0.673" (17.10mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|

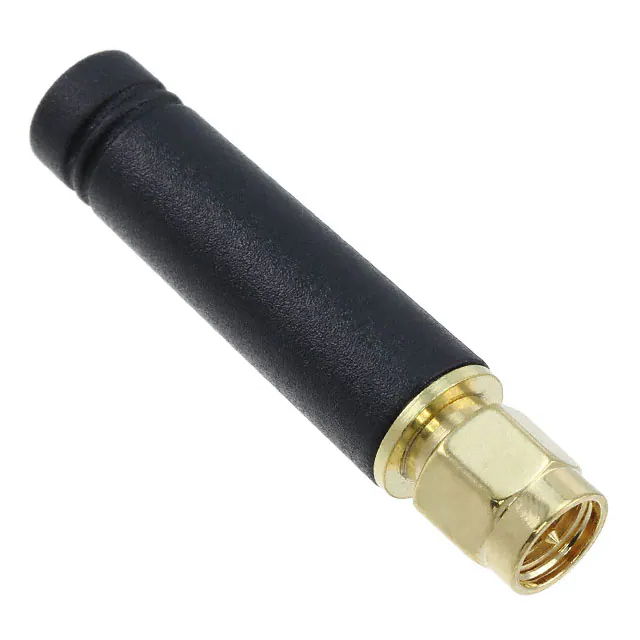

APAMSJ-137RF ANT 5GHZ WHIP STR SMA MALE |
275 |
|
Datasheet |
APAMS | Bulk | Active | WiFi | SHF (f > 4GHz) | 5GHz | 4.9GHz ~ 5.9GHz | Whip, Straight | 1 | 3 | - | 5dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.732" (44.00mm) | WLAN |
|
ANT-W63-MON-SMARF ANT WIFI6/6E HINGED WHIP SMA |
657 |
|
Datasheet |
MON | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt/Swivel | 3 | 2.4, 2.3, 2 | -7.7dB, -8.1dB, -9.5dB | 3.2dBi, 4.2dBi, 3.4dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 2.835" (72.00mm) | 802.11, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi6, Wi-Fi6E, WLAN, ZigBee |
|
ANT-2.4-PW-QW-UFLRF ANT 2.4GHZ WHIP STR CAB PAN |
963 |
|
Datasheet |
PW | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | Cable - 216mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 4.134" (105.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
GW.15.2113RF ANT 2.4GHZ WHIP TILT SMA MALE |
1,862 |
|
Datasheet |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.8 | - | 2dBi | 1 W | - | SMA Male | IP65 | - | - | Connector Mount | 4.272" (108.50mm) | Bluetooth, WLAN |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
