RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MHODB24490507NF-IPVENU SEALED DUAL BAND HIGH PERF |
0 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4325GHz | 2.4GHz ~ 2.5GHz, 4.94GHz ~ 5.925GHz | Whip, Straight | 2 | 2 | - | 5dBi, 7dBi | 25 W | - | N Type Female | IP67 | - | - | Base Mount | 11.000" (279.40mm) | Wi-Fi |
|
|
MHODB24490507NM-IPVENU SEALED DUAL BAND HIGH PERF |
0 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4325GHz | 2.4GHz ~ 2.5GHz, 4.94GHz ~ 5.925GHz | Whip, Straight | 2 | 2 | - | 5dBi, 7dBi | 25 W | - | N Type Male | IP67 | - | - | Base Mount | 11.000" (279.40mm) | Wi-Fi |
|
|
NMO2/70CANT COIL-WHP 1.6-3.5DB 144-148 |
0 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 146MHz, 445MHz | 144MHz ~ 148MHz, 440MHz ~ 450MHz | Whip, Straight | 2 | - | -10dB | 3.8dBi, 5.2dBi | 100 W | - | NMO | - | - | - | Magnetic | 34.500" (876.30mm) | - |
|

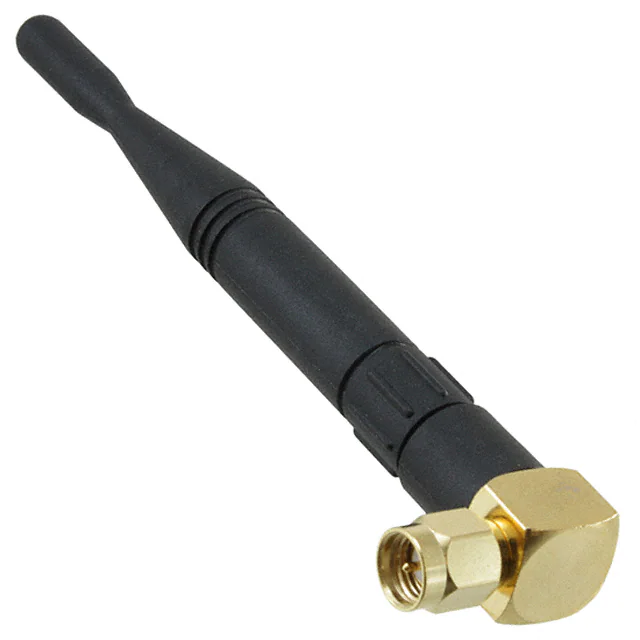

2313342RF ANT 850MHZ/900MHZ WHIP RA |
1 |
|
Datasheet |
- | Bulk | Obsolete | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Right Angle | 5 | 2 | - | 0dB | - | - | SMA Male | - | - | - | Connector Mount | 3.374" (85.70mm) | GSM |
|
|
LCANMOB1001-RTP617-7125MHZ 3DBI OMNI ANTENNA WI |
0 |
|
Datasheet |
LCAN | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 3.871GHz | 617MHz ~ 7.125GHz | Whip, Straight | 1 | 1.5 | - | 5dBi | 100 W | Cable - 3.05m | RP-TNC | - | - | - | Connector Mount | 5.000" (127.00mm) | Bluetooth, IoT, Wi-Fi, Zigbee™ |
|
|
CFSA69594P-30NFOMNI,CEILING,30CM,NF |
0 |
|
- |
- | Bulk | Active | Cellular | Wide Band | 761MHz, 859MHz, 920MHz, 1.45GHz, 1.785GHz, 1.92GHz, 2.055GHz, 2.5GHz, 3.65GHz, 4.1GHz, 5.537GHz | 698MHz ~ 824MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 4GHz, 4GHz ~ 4.2GHz, 5.15GHz ~ 5.925GHz | Module | 11 | 1.7, 2, 2.5 | - | 3.7dBi, 3.4dBi, 3.2dBi, 4.5dBi, 5.4dBi, 5.6dBi, 5.6dBi, 5.6dBi, 4.3dBi, 4.1dBi, 4.9dBi | 50 W | Cable - 304.8mm | N Type Female | - | - | - | Ceiling Mount | 0.300" (7.62mm) | 5G, 802.11 a/b/g/n/ac/ad, Bluetooth, Wi-Fi, Zigbee™ |
|
|
CFSA35606P-B30NFOMNI,LOW PIM,30CM,NF |
0 |
|
- |
- | Bulk | Active | Cellular | Wide Band | 435MHz, 780MHz, 1.45GHz, 3.845GHz | 350MHz ~ 520MHz, 600MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 6GHz | Dome | 3 | 2.5 | - | 6dBi | - | Cable - 304.8mm | N Type Female | - | - | - | Ceiling Mount, Wall Mount | 0.300" (7.62mm) | 5G |
|
|
FM51MP1000ANTENNA NMO MOUNT108 MHZ-520 MHZ |
0 |
|
Datasheet |
- | Bag | Active | General ISM | Wide Band | 314MHz | 108MHz ~ 520MHz | Whip, Straight | 1 | 2 | - | 2dBi | 150 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | NMO | - | - | - | Base Mount | 27.800" (706.12mm) | General Purpose |
|
|
FM51OM1002ANTENNA TYPE N JACK 2.4 MHZ-5.85 |
0 |
|
Datasheet |
- | Bag | Active | WiFi | Wide Band | 4.125GHz | 2.4GHz ~ 5.85GHz | Whip, Straight | 1 | 2.5 | - | 6dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 11.700" (297.18mm) | 802.11a/b/g/n/ac, WiMax™, WLAN |
|
|
CW1503RF ANT 156MHZ WHIP STR NMO BASE |
0 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 156MHz | 150MHz ~ 162MHz | Whip, Straight | 1 | 2 | - | 3dB | 200 W | - | NMO | - | - | - | Base Mount | 48.500" (123.19cm) | - |
|
|
3971D-HR-N-WGPS, 28DB, HR, LOW PROFILE, WHIT |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GEO-GNSS-PS-S1GPS/GLONASS ENCLOSED HELIX, PASS |
0 |
|
Datasheet |
- | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.592GHz | 1.574GHz ~ 1.61GHz | Dome | 1 | 2.5 | - | 1.5dBic | - | - | - | IP67 | - | - | Direct Mount | 3.346" (85.00mm) | GLONASS, GNSS, GPS |
|
|
RE11DS-RTPREANTPATCH 2.4GHZ 11DBI |
0 |
|
- |
RE | Bag | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Flat Patch | 1 | - | - | 11dBi | - | Cable - 914.4mm | RP-TNC | - | - | - | Ceiling Mount | 1.100" (27.94mm) | 802.11b/g/n, Wi-Fi |
|
|
C27SRF ANT 29MHZ WHIP STR NMO BASE |
0 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 29MHz | 26.75MHz ~ 31MHz | Whip, Straight | 1 | 2 | - | 0dB | - | - | NMO | - | - | - | Base Mount | 52.500" (133.35cm) | - |
|
|
C40SRF ANT 44MHZ WHIP STR NMO BASE |
0 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 44MHz | 40MHz ~ 47MHz | Whip, Straight | 1 | 2 | - | 0dB | - | - | NMO | - | - | - | Base Mount | 52.500" (133.35cm) | - |
|
|
GPSNMO07ANTENNA GPS NMO W/MOUNT |
0 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Dome | 1 | 2 | -10dB | 5dBic | - | Cable - 5.1816m | SMB | - | - | - | Magnetic | 1.300" (33.02mm) | GPS |
|
LP800WSMAFRF ANT 883MHZ DOME CBL PNL 2.5FT |
0 |
|
Datasheet |
Antenna | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 883MHz | 806MHz ~ 960MHz | Dome | 1 | 2.1 | - | 2.14dBi | 100 W | Cable - 762mm | SMA Female | - | - | - | Panel Mount | 1.339" (34.00mm) | ISM |
|
|
HG245803MGURW-NMANTMAGMT 2.4/5.8 GHZ WHT NM |
0 |
|
- |
HG | Bag | Active | WiFi | Wide Band | 2.4GHz, 5.35GHz | 4.9GHz ~ 5.8GHz | Whip, Straight | 2 | - | - | 3dBi, 3dBi | - | Cable - 3.05m | N Type Male | - | - | - | Magnetic | 2.700" (68.58mm) | 802.11a/b/g/n/ac, WLAN |
|
|
HG911P-NF880 TO 960 MHZ, 11 DBI HEAVY-DUT |
0 |
|
- |
HG | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 920MHz | 880MHz ~ 960MHz | Yagi | 1 | 1.5 | - | 11dBi | 150 W | Cable - 914.4mm | N Type Female | - | - | - | Mast Mount | 2.400" (60.96mm) | GSM, IoT, ISM, LoRa, LPWAN, M2M, RFID, WLAN |
|
|
HG2408P-NMANTRND PATCH 2.4GHZ 7.5DBI |
0 |
|
- |
HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.5 | - | 8dBi | - | - | Connector | - | - | - | Through Hole | 1.000" (25.40mm) | 802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN |
