BOM Upload
RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PD698-3800M2NFANT DAS DIR 4G LTE 5G CBRS MIMO |
0 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 829MHz, 1.45GHz, 2.205GHz, 3.55GHz | 698MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz | Module | 4 | 1.7, 2 | - | 6dBi, 8dBi, 9dBi, 9dBi | 50 W | Cable - 300mm | N Type Female | IP50 | - | - | Wall Mount | 2.913" (74.00mm) | 4G, 5G |
|
|
KGI825MPLANT DIPOLE I/S GLS 806-896 MHZ |
0 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MS3E900SMAANT 2 MAG MT-WHP ENC 3DB 890-9 |
0 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Whip, Straight | 1 | - | -10dB | 5.6dBi | 40 W | Cable - 304.8mm | SMA | - | - | - | Magnetic | 13.000" (330.20mm) | - |
|
|
FM51OM1043ANTENNA TYPE N JACK 1.71 MHZ-2.7 |
0 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 2.205GHz | 1.71GHz ~ 2.7GHz | Whip, Straight | 1 | 2.3 | - | 10dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 38.600" (980.44mm) | 5G, LTE |
|
|
CW30RF ANT 32MHZ WHIP STR NMO BASE |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | VHF (f < 300MHz) | 32MHz | 30MHz ~ 34MHz | Whip, Straight | 1 | 2 | - | 0dB | 200 W | - | NMO | - | - | - | Base Mount | 63.500" (161.29cm) | - |
|
|
FMANMOB1008-RSPANTENNA SMA136 MHZ-174 MHZ |
0 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (300MHz ~ 1GHz) | 155MHz | 136MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 5.5dBi | 50 W | Cable - 3.05m | RP-SMA | - | - | - | Base Mount | 54.400" (138.18cm) | Wi-Fi, WLAN |
|
|
ANT-GW715153RF ANT 2.4/5.35GHZ WHIP TILT 7" |
0 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.35GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Whip, Tilt | 2 | 2.1 | - | 5.5dBi | 2 W | - | RP-SMA Male | - | - | - | Connector Mount | 7.638" (194.00mm) | WLAN |
|
|
FM51FP1006TYPE N JACK 9 DBI WIDEBAND PANEL |
0 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 892MHz | 824MHz ~ 960MHz | Panel | 1 | 1.8 | - | 9dBi | 10 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Bracket Mount | 1.000" (25.40mm) | IoT, ISM, LoRa, LPWAN, M2M, RFID |
|
|
RE09P-NFREANTPATCH 2.4GHZ 8DBI |
0 |
|
- |
RE | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Flat Patch | 1 | 1.5 | - | 8dBi | - | Cable - 1.2192m | Connector | - | - | - | Through Hole | 0.900" (22.86mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi |
|
|
RE09P-RSPREANTPATCH 2.4GHZ 8DBI |
0 |
|
- |
RE | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Flat Patch | 1 | 1.5 | - | 8dBi | - | Cable - 1.2192m | Connector | - | - | - | Through Hole | 0.900" (22.86mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi |
|
|
EAN0900WC896-940MHZ 5.15 DBI OPEN COIL AN |
0 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CMM24513S4-91RSMRF ANT 2.4/5.5GHZ PUCK CAB 91CM |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | Puck | 2 | 2 | - | 6.6dBi | 5 W | Cable - 914mm | RP-SMA (4) | - | - | - | Panel Mount | - | - |
|
|
FM51YA1012TYPE N JACK 900 MHZ 9 DBI SS YAG |
0 |
|
- |
- | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Yagi | 1 | 1.5 | - | 9dBi | 100 W | Cable - 457.2mm | N Type Female | - | - | - | Bracket Mount | 21.800" (553.72mm) | GSM, ISM, RFID |
|

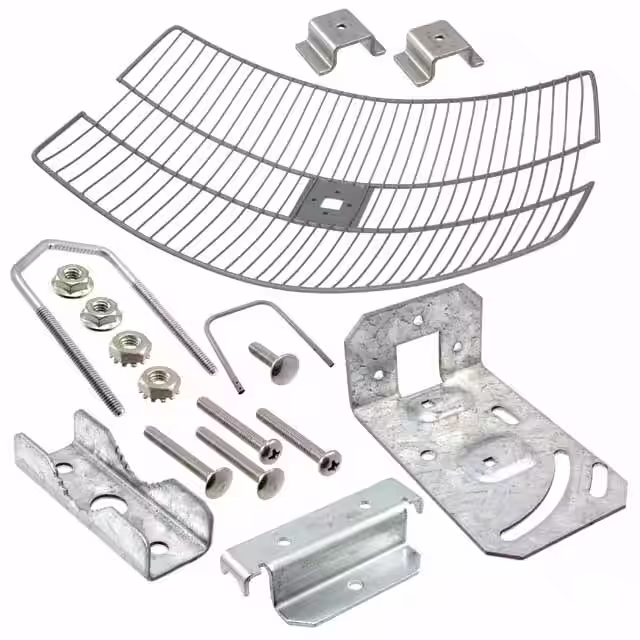

GD26-MTRF ANT 4.1GHZ GRID |
0 |
|
Datasheet |
- | Bulk | Obsolete | WiFi | Wide Band | 4.1GHz | 2.4GHz ~ 5.85GHz | Parabolic Grid | 1 | - | - | 18dBi, 24dBi | - | - | - | - | - | - | Bracket Mount | 24.000" (609.60mm) | WiMax™, WLAN |
|
|
FM51229ANTENNA 4.3-10 JACK 698 MHZ-4.2 |
0 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 752MHz, 883MHz, 2.205GHz, 3.8GHz | 698MHz ~ 806MHz, 806MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.4GHz ~ 4.2GHz | Panel | 4 | 2 | - | 5dBi, 6dBi, 7dBi, 7dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 4.3/10 - Female | - | - | - | Bracket Mount | 2.420" (61.47mm) | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
|
RO2406NFRF ANT 2.4GHZ WHIP STR N FEM |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 6dBi | 20 W | - | N Type Female | IP67 | - | - | Bracket Mount | 12.440" (315.97mm) | - |
|
33-2108-03-0100RF ANT 1.575GHZ CERM ADH 100MM |
0 |
|
Datasheet |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.58GHz | Ceramic Patch | 1 | 1.5 | - | 4.25dBic | - | Cable - 100mm, LNA, Filter | MMCX Male | - | - | - | Adhesive, Chassis Mount | 0.299" (7.59mm) | GPS |
|
|
SL6081PV48SMMRF ANT 611MHZ PANEL CAB BRKT 48" |
0 |
|
- |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 611MHz | 608MHz ~ 614MHz | Panel | 1 | 2 | - | 2dBi | - | Cable - 1.2m | SMA Male | - | - | - | Bracket Mount | 1.260" (32.00mm) | - |
|
|
FMANMOB1002-RSPANTENNA SMA617 MHZ-7.125 GHZ |
0 |
|
- |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 3.871GHz | 617MHz ~ 7.125GHz | Dome | 1 | 1.5 | - | 5dBi | 100 W | Cable - 3.05m | RP-SMA | - | - | - | Magnetic | 4.700" (119.38mm) | Bluetooth, IoT, Wi-Fi, Zigbee™ |
|
|
FMANMOB1001-RSPANTENNA SMA617 MHZ-7.125 GHZ |
0 |
|
- |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 3.871GHz | 617MHz ~ 7.125GHz | Dome | 1 | 1.5 | - | 5dBi | 100 W | Cable - 3.05m | RP-SMA | - | - | - | Magnetic | 5.000" (127.00mm) | Bluetooth, IoT, Wi-Fi, Zigbee™ |
