RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GPSDM06ANT BLK GPS DIR MNT 17' RG174 |
0 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Dome | 1 | - | -10dB | 5dBi, 28dBi | - | Cable - 431.8mm | SMB | - | - | - | - | 0.070" (1.78mm) | GPS |
|
TRA8063PRF ANT 836MHZ DOME N FEM PAN MT |
0 |
|
Datasheet |
Phantom® | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 836MHz | 806MHz ~ 866MHz | Dome | 1 | 2 | - | 3dBi | 150 W | - | N Type Female | - | - | - | Panel Mount | 2.700" (68.58mm) | GSM |
|
CFS60383P-30D43FRF ANT PANEL DIN FEMALE PAN MT |
0 |
|
Datasheet |
CBRS | Bulk | Active | - | Wide Band | - | - | Panel | 5 | 1.8 | - | 6.8dBi | 50 W | - | 4.3/10 - Female | - | - | - | Panel Mount | 0.299" (7.60mm) | - |
|
CFSA69383P-30D43FRF ANT 829MHZ/1.45GHZ FLAT PNL N |
0 |
|
Datasheet |
CBRS | Bulk | Active | Cellular, WiFi | Wide Band | 829MHz, 1.45GHz, 2.75GHz | 698MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 3.8GHz | Flat Panel | 3 | 2 | - | 5.8dBi | 50 W | - | N Type Female | - | - | - | Panel Mount | 0.299" (7.60mm) | GSM, LTE, WiMax™ |
|
|
FM51224ANTENNA 4.3-10 JACK 617 MHZ-6 GH |
0 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 788.5MHz, 1.45GHz, 2.195GHz, 3.55GHz, 5.45GHz | 617MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | Dome | 5 | 1.8 | - | 2.2dBi, 3.5dBi, 4.5dBi, 6dBi, 6dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 4.3/10 - Female | - | - | - | Ceiling Mount | 0.710" (18.03mm) | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
|
HG2409MGRD-RTPANTRUBBER DUCK 2.4GHZ MAGMNT |
0 |
|
- |
HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.5 | - | 9dBi | 50 W | Cable - 1.524m | RP-TNC | - | - | - | Magnetic | 16.600" (421.64mm) | 802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
RE905U-TMANTOMNI 800-900MHZ 5DBI |
0 |
|
- |
RE | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 900MHz | - | Whip, Straight | 1 | - | - | 5dBi | - | Cable - 1.2192m | TNC | - | - | - | Magnetic | 7.200" (182.88mm) | GSM, ISM, LoRa, LPWAN |
|
|
HG-PCGM01-03FJANTGPS/CELLULAR/3G/LTE |
0 |
|
- |
HG | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HG2458MGRD-RTPANTMAGMNT 2.4/5GHZ |
0 |
|
- |
HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.441GHz, 5.525GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.9GHz | Whip, Straight | 2 | 2 | - | 3dBi, 5dBi | - | Cable - 127mm | RP-TNC | - | - | - | Magnetic | 10.100" (256.54mm) | 802.11a/b/g/n, Bluetooth, ISM, Wi-Fi, WiMax |
|

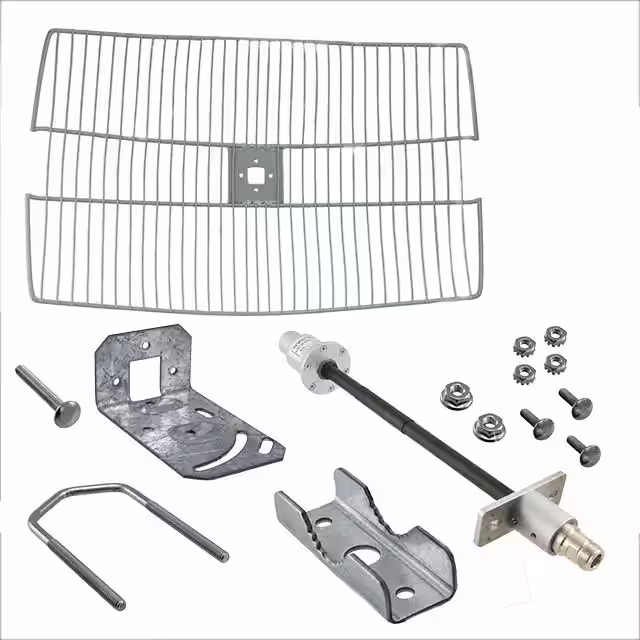

GD57-25RF ANT 5.7GHZ GRID N FEM BRKT MT |
0 |
|
Datasheet |
- | Bulk | Obsolete | WiFi | SHF (f > 4GHz) | 5.7GHz | 5.47GHz ~ 5.725GHz | Parabolic Grid | 1 | 1.5 | - | 25dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 24.000" (609.60mm) | WiMax™, WLAN |
|
SG103N-2450RF ANT 2.4GHZ WHIP STR N FEM |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 8.5dBi | - | - | N Type Female | - | - | - | Connector Mount | 23.622" (600.00mm) | - |
|
WM.80.B.305111RF ANT 169MHZ WHIP STR SMA MALE |
0 |
|
Datasheet |
Cyclops | Box | Active | - | VHF (f < 300MHz) | 169MHz | - | Whip, Straight | 1 | - | - | 0dBi | 50 W | - | SMA Male | IP67 | - | - | Bracket Mount | 10.945" (278.00mm) | - |
|
|
OSCAR42B/X/NTYPEF/S/S/194G/LTE OMNI ANTENNA 1/4DBI GAIN |
0 |
|
Datasheet |
OSCAR 42B | Bulk | Active | Cellular | Wide Band | 830MHz, 2.2GHz | 700MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Whip, Straight | 2 | 3.7 | - | 1dBi, 4dBi | - | - | N Type Female | - | - | - | Base Mount | 11.811" (300.00mm) | 2G, 3G, 4G, GPRS |
|
3997D-HRRF ANT 1.575GHZ MODULE MCX SCREW |
0 |
|
Datasheet |
- | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Module | 1 | 1.9 | - | 3dBic, -2dBic | - | LNA, Filter | MCX | - | - | - | Stud, Through Hole | 0.528" (13.42mm) | 2G, 3G, 5G, Cellular, GNSS, GPS, LTE |
|
|
HG110TEL-BNCANT 0 DBI TELESCOPIC PORTABLE AN |
0 |
|
- |
HG | Bag | Active | General ISM | VHF (f < 300MHz) | 146MHz | 118MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 0dBi | 10 W | - | BNC | - | - | - | Connector Mount | 8.400" (213.36mm) | General Purpose |
|
WAN05RSPRF ANT 2.4GHZ WHIP TILT RP-SMA |
0 |
|
- |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Tilt | 1 | - | - | 9dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | - | - |
|
|
FMANLP1009ANTENNA TYPE N JACK 2.3 MHZ-2.5 |
0 |
|
Datasheet |
- | Bag | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.3GHz ~ 2.5GHz | Panel | 1 | 1.5 | - | 10dBi | 100 W | Cable - 300mm | N Type Female | - | - | - | Bracket Mount | 5.900" (149.86mm) | 3G, 4G, 5G, 802.11a/b/g/n/ac/ad/ah/ax, CMDA, IoT, LoRa, LPWAN, LTE, LTE-M, M2M, NB-IoT, Wi-Fi |
|
|
FMANLP1008ANTENNA TYPE N JACK 1.92 MHZ-2.1 |
0 |
|
- |
- | Bag | Active | Cellular, WiFi | Wide Band | 2.045GHz | 1.92GHz ~ 2.17GHz | Panel | 1 | 1.5 | - | 10dBi | 100 W | Cable - 238.76mm | N Type Female | - | - | - | Bracket Mount | 5.900" (149.86mm) | 3G, 4G, 5G, CMDA, GSM, IoT, LoRa, LPWAN, LTE, LTE-M, M2M, NB-IoT, Wi-Fi |
|
|
3917D-230CM-TNC3917, 230 CM RG-174 SIZE, TNC MA |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Module | 1 | - | - | 3dBic | - | Cable - 230mm, LNA, Filter | SMA Male | IP67 | - | - | Magnetic, Screw | 0.535" (13.60mm) | GPS |
|
|
CRS150RF ANT 162MHZ WHIP STR UHF FEM |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | VHF (f < 300MHz) | 162MHz | 150MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 2dBi | - | - | UHF Female | - | - | - | Bracket Mount | 44.882" (114.00cm) | - |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
