RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A08-HABUF-P5IRF ANT 868MHZ WHIP STR U.FL FEML |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Straight | 1 | - | - | 2.1dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | - | - |
|
2600130011ANTENNA 169MHZ SMA MALE |
0 |
|
Datasheet |
WIRL-ACCE | Bulk | Obsolete | - | VHF (f < 300MHz) | 169MHz | - | Whip, Straight | 1 | 2 | - | 1dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 12.598" (320.00mm) | - |
|
ALPHA6/2M/SMAM/S/S/FMEF/S/S/7RF ANT 850MHZ/900MHZ PUCK FME |
0 |
|
Datasheet |
ALPHA 6 | Bulk | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz | - | Puck | 5 | 2 | - | 28dBi | - | - | FME Female | - | - | - | Adhesive | 0.551" (14.00mm) | GPRS, GPS, GSM |
|
6001127INTERNAL WIFI/BT ANTENNA - 2.4GH |
0 |
|
Datasheet |
AirLink® - Accessory | Box | Active | Bluetooth, WiFi | - | - | - | Whip, Tilt | - | - | - | - | - | Cable - 3m | - | - | - | - | Connector Mount | - | Bluetooth, Wi-Fi |
|
|
HG2405RD-1-NMANTRUBBER DUCK 2.4GHZ 5DB |
0 |
|
- |
HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | 2 | - | 4.52dBi | 10 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Male | - | - | - | Connector Mount | 8.189" (208.00mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN |
|

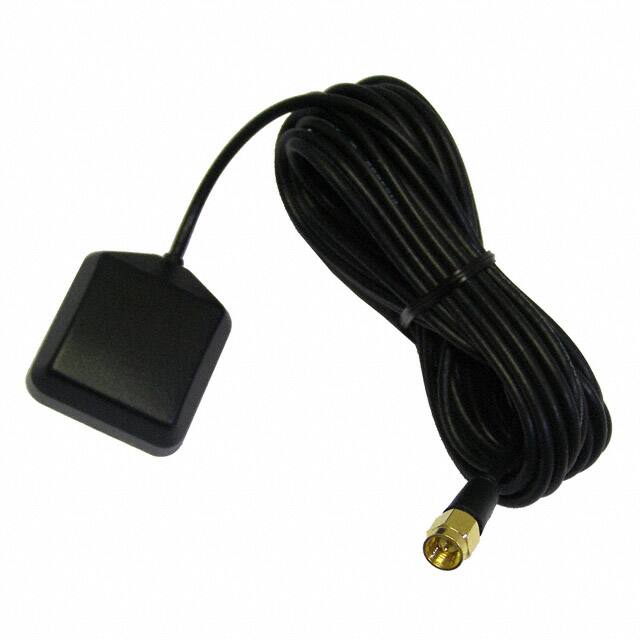

ANT-GPSMGRF ANT 1.575GHZ MOD SMA MALE MAG |
0 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1570.42MHz ~ 1580.42MHz | Module | 1 | 1.5 | - | 5dB | - | LNA | SMA Male | - | - | - | Magnetic, Chassis Mount | 0.472" (12.00mm) | GPS |
|
|
TANGO24/1M/SMAM/S/S/17IP67 2.4GHZ WIFI THROUGH HOLE MO |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FM51RD1014ANTENNA TYPE N PLUG 2.4 MHZ-2.5 |
0 |
|
Datasheet |
- | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 4.52dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Male | - | - | - | Connector Mount | 8.189" (208.00mm) | 802.11b/g/n/x, Bluetooth, IoT, ISM, Wi-Fi, WLAN |
|
|
FM51RD1016ANTENNA TNC PLUG 2.4 MHZ-2.5 GHZ |
0 |
|
Datasheet |
- | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 4.52dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | RP-TNC Male | - | - | - | Connector Mount | 7.953" (202.00mm) | 802.11b/g/n/x, Bluetooth, IoT, ISM, Wi-Fi, WLAN |
|
001-0028RF ANT 868MHZ WHIP RA SMA CONN |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 868MHz | 863MHz ~ 870MHz | Whip, Right Angle | 1 | 2 | - | 2dBi | - | - | SMA | - | - | - | Connector Mount | 7.756" (197.00mm) | General Purpose |
|
|
AECW0801C09C-0500SEXTERNAL MIMO 2XLTE + WIFI + GNS |
0 |
|
Datasheet |
AECW | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.581GHz, 2.2GHz, 2.441GHz, 5.362GHz | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.483GHz, 4.9GHz ~ 5.825GHz | Dome | 5 | 1.5, 2.5, 3 | - | 2.5dBi, 2dBic, 2dBi, 3dBi, 3dBi | - | Cable - 500mm | SMA Male | IP67 | - | - | Screw Mount | 0.642" (16.30mm) | 4G, BeiDou, GLONASS, GNSS, GPS, IoT, LTE, M2M, QZSS, Wi-Fi |
|
|
SPHL17FTANT SP HELICAL 1-4 WAVE TUNABL |
0 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 178.5MHz | 136MHz ~ 221MHz | Helical | 1 | - | - | - | - | - | TN | - | - | - | Connector Mount | 8.000" (203.20mm) | - |
|
|
R380500109ANT DIPOLE DROIT SMA 2 4GHZ |
0 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.5 | - | 2dBi | - | - | - | - | - | - | Connector Mount | 3.500" (88.90mm) | 4G, LTE |
|
ANT-GPS-UC-SMARF ANT 1.575GHZ MOD SMA MALE MAG |
0 |
|
Datasheet |
UC | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5 | - | 3dBi | - | Cable - 5m | SMA Male | - | - | - | Magnetic | 0.555" (14.10mm) | GPS |
|
|
ANT-GPS-UC-RPSRF ANT 1.575GHZ MOD RP-SMA MAGNT |
0 |
|
Datasheet |
UC | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5 | - | 3dBi | - | Cable - 5m | RP-SMA Male | - | - | - | Magnetic | 0.555" (14.10mm) | GPS |
|
|
ANT-GPS-UC-MCXRF ANT 1.575GHZ MOD MCX MALE MAG |
0 |
|
Datasheet |
UC | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5 | - | 3dBi | - | Cable - 5m | MCX Male | - | - | - | Magnetic | 0.555" (14.10mm) | GPS |
|
|
FM51217ANTENNA TYPE N JACK 617 MHZ-6 GH |
0 |
|
- |
- | Bag | Active | Cellular | Wide Band | 788.5MHz, 1.45GHz, 2.195GHz, 3.55GHz, 5.45GHz | 617MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | Dome | 5 | 1.8 | - | 2.2dBi, 3.5dBi, 4.5dBi, 6dBi, 6dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Ceiling Mount | 0.670" (17.02mm) | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
|
FM51226ANTENNA 4.3-10 JACK 698 MHZ-4.2 |
0 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.45GHz, 2.195GHz, 3.75GHz | 698MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz | Dome | 4 | 1.8 | - | 2.2dBi, 3.5dBi, 4.5dBi, 5dBi | 50 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 4.3/10 - Female | - | - | - | Ceiling Mount | 0.670" (17.02mm) | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
|
SB90012ANT STEALTH BLD 890-960 MHZ 12FT |
0 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Flat Bar | 1 | - | - | 2.14dBi | 3 W | Cable - 304.8mm | - | - | - | - | Adhesive | - | - |
|
|
W1978RF ANT 829MHZ/1.94GHZ DOME PANEL |
0 |
|
Datasheet |
LPT Antenna | Bulk | Active | - | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Dome | 3 | 2, 2.5 | - | 1.4dBi, 2.7dBi, 3.5dBi | 10 W | Cable - 700mm | U.FL (UMCC), I-PEX MHF1 | IP67 | - | - | Panel Mount | 3.039" (77.20mm) | General Purpose |
RF Antennas Electronic Components
Frequently Asked Questions
Q1: What products are included in RF Antennas?
This category includes related RF Antennas subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for RF Antennas components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for RF Antennas and other electronic components.
