RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-868-PMLRF ANT 868MHZ WHIP/TILT PANEL MT |
0 |
|
Datasheet |
PML | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 853MHz ~ 883MHz | Whip, Tilt | 1 | 1.9 | - | -2.0dBi | - | Cable - 305mm | Solder | - | - | - | Panel Mount | 5.917" (150.30mm) | ISM, LoRa, Sensor Networks, SigFox |
|
LCSMA10102400 - 2500 MHZ 3.67 DBI, STAMPE |
0 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | - | 3.67dBi | 1 W | Cable - 144.78mm | I-PEX | - | - | - | Surface Mount | 0.010" (0.25mm) | 802.11a/b/g/n/ac, Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
SB2459RPSMA12ANTENNA DIPOLE WIFI 2.4/5GHZ |
0 |
|
- |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ANT-2.4-PMLRF ANT 2.4GHZ WHIP/TILT PANEL MT |
0 |
|
Datasheet |
PML | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Tilt | 1 | 1.9 | - | 2.4dBi | - | Cable - 305mm | Solder | - | - | - | Panel Mount | 5.917" (150.30mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
|
DELTA5A/X/BNCM/S/S/17RF ANT 868MHZ WHIP STR BNC MALE |
0 |
|
Datasheet |
DELTA 5A | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Straight | 1 | 2.1 | - | 3dBi | - | - | BNC Male | - | - | - | Connector Mount | 3.937" (100.00mm) | ISM |
|
ANT-8/9-MMG2-SMA-3RF ANT 868/915 MHZ MAG 3M SMA |
0 |
|
Datasheet |
ANT-8/9-MMG2-SMA | Bag | Obsolete | General ISM, WiFi | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 862MHz ~ 876MHz, 902MHz ~ 930MHz | Whip, Straight | 2 | 1.4, 1.6 | - | 3dBi, 3dBi | 10 W | Cable - 3m | SMA Male | - | - | - | Magnetic | 3.484" (88.50mm) | ISM, LoRaWAN, LPWA, Sigfox, Wi-Fi |
|
|
DBA6927C2-FTNCMRF ANT 700MHZ/850MHZ WHIP STR |
0 |
|
Datasheet |
- | Bulk | Obsolete | Cellular, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 2 | 2.5 | - | 0.5dBi, 2.2dBi | 3 W | - | RP-TNC Male | - | - | - | Connector Mount | 9.016" (229.00mm) | AWS, GSM, LTE, PCS, UMTS, WiMax™ |
|
ANLTE3-50HRAANTENNA RF LTE 7.5" 1 DBI |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | - | - | - | Whip, Straight | - | - | - | 1dBi | - | - | Connector | - | - | - | Connector Mount | 7.000" (177.80mm) | LTE |
|
|
EXD450BNRF ANT 460MHZ WHIP STR BNC MALE |
0 |
|
Datasheet |
EXD | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | - | - | - | BNC Male | - | - | - | Connector Mount | 3.880" (98.55mm) | - |
|
ANT-2.4-MMG1-SMA-2RF ANT 2.4GHZ MAGNETIC 2M SMA |
0 |
|
Datasheet |
ANT-2.4-MMG1-SMA | Bag | Obsolete | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.8 | - | 0.7dBi | 10 W | Cable - 2m | SMA Male | - | - | - | Magnetic | 3.260" (82.80mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
1003657ANTENNA |
0 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 725MHz, 766.5MHz, 1.7325GHz, 2.1325GHz | 704MHz ~ 746MHz, 746MHz ~ 787MHz, 1.71GHz ~ 1.755GHz, 2.11GHz ~ 2.155GHz | Module | 4 | 2.1, 2.5 | - | 1dBi, 1.6dBi, 3.2dBi, 3.4dBi | - | Cable - 218mm | MMCX | - | - | - | Surface Mount | 0.165" (4.20mm) | LoRa, LPWAN, LTE, Sigfox |
|

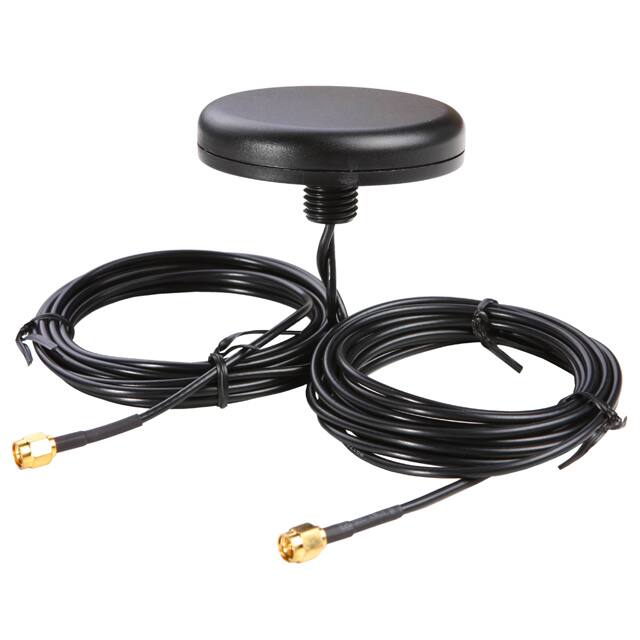

APAMPS-106RF ANT 900MHZ/1.575GHZ MOD ADH |
0 |
|
Datasheet |
APAMPS | Bulk | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.575GHz, 1.8GHz | 806MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 1.88GHz | Module | 3 | 1.5, 2.0 | -26dB | -1dBi, 1dBi, 5dBic | - | Cable - 2m, LNA | SMA Male (2) | - | - | - | Adhesive, Panel Mount | 0.555" (14.10mm) | GPS, GSM |
|
|
ST0430-31-001-AIP 67 RF ANTENNA EXTERNAL WIDE B |
0 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.495GHz, 3.55GHz, 4.7GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.4GHz ~ 5GHz | Flat Bar | 5 | - | -6dB, -5.1dB | 4.6dBi, 4.8dBi, 3.7dBi, 3.5dBi, 2.4dBi | 1 W | - | SMA | IP67 | - | - | Adhesive | 0.311" (7.90mm) | 4G, 5G, IoT, LTE |
|
|
ST0428-41-001-AIP 66 RF ANTENNA EXTERNAL WIDE B |
0 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.495GHz, 4.15GHz, 5.487GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.825GHz | Whip, Tilt | 5 | - | -6dB, -5.1dB, -4.4dB | 3.1dBi, 4dBi, 2.3dBi, 4.4dBi, 4.7dBi | 1 W | - | SMA | IP66 | - | - | Connector Mount | 9.055" (230.00mm) | 5G, IoT |
|
FLEXI-BNC-868RF ANT 868MHZ WHIP STR BNC CONN |
0 |
|
Datasheet |
- | - | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Straight | 1 | - | - | - | - | - | BNC | - | - | - | Connector Mount | - | General Purpose |
|
|
2JW0983-C952BCUTLASS 5GNR/4GLTE/3G/2G UWB SLI |
6 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.059GHz, 4.15GHz, 5.538GHz | 617MHz ~ 960MHz, 1.43GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.93GHz | Whip, Tilt | 4 | 1.6, 2.2, 2.4, 3.1 | -6.9dB, -9.3dB, -9.8dB, -13.7dB | 2.2dBi, 2.6dBi, 2dBi, 4.2dBi | 25 W | - | SMA Male | - | - | - | Connector Mount | 6.693" (170.00mm) | 2G, 3G, 4G, 5G, LTE |
|
ANT-5GW-MMG1-SMA-2RF ANT 5G CELLULAR MAG 2M SMA |
0 |
|
Datasheet |
ANT-5GW-MMG1-SMA | Bag | Active | Cellular, General ISM | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.9475GHz, 2.495GHz, 3.75GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz | Whip, Straight | 8 | 2, 2.1, 2.2, 2.3, 2.7, 2.9, 3.1, 3.6 | - | -0.4dBi, 2.5dBi, 2.5dBi, 2.5dBi, -1.5dBi, 2.1dBi, 1.7dBi, 3.5dBi | 10 W | Cable - 2m | SMA Male | - | - | - | Magnetic | 3.260" (82.80mm) | 2G, 3G, 4G, 5G, Cellular, ISM, LTE, NB-IoT |
|
|
PEANRBD1014400-520 MHz Rubber Duck Antenna, |
8 |
|
Datasheet |
- | Retail Package | Active | General ISM | UHF (300MHz ~ 1GHz) | 460MHz | 400MHz ~ 520MHz | Whip, Straight | 1 | 1.5 | - | 2.15dBi | 50 W | - | SMA Female | - | - | - | Connector Mount | 3.100" (78.74mm) | General Purpose |
|
|
PEANRBD1021400-520 MHz Rubber Duck Antenna, |
8 |
|
Datasheet |
- | Retail Package | Active | General ISM | UHF (300MHz ~ 1GHz) | 460MHz | 400MHz ~ 520MHz | Whip, Straight | 1 | 1.5 | - | 2.15dBi | 50 W | - | SMA Female | - | - | - | Connector Mount | 5.900" (149.86mm) | General Purpose |
|
|
PEANRBD1019136-174 MHz Rubber Duck Antenna, |
5 |
|
Datasheet |
- | Retail Package | Active | General ISM | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 1.8dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 6.400" (162.56mm) | General Purpose |
