RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

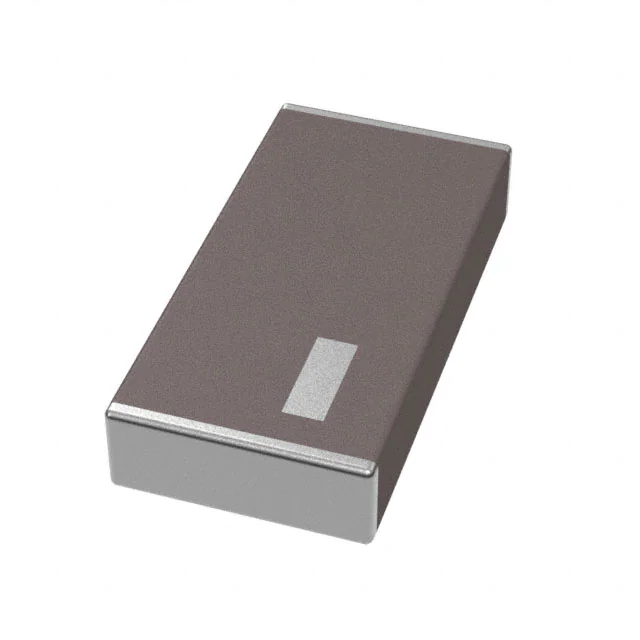

ACAG0301-5500-TRF ANT 5.5GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
ACAG | Tape & Reel (TR) | Active | General ISM, WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.85GHz | Chip | 1 | 2 | - | 4.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | ISM, Wi-Fi, WLAN |
|
W3930ANTENNA 824-2170MHZ 5 BAND |
0 |
|
- |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

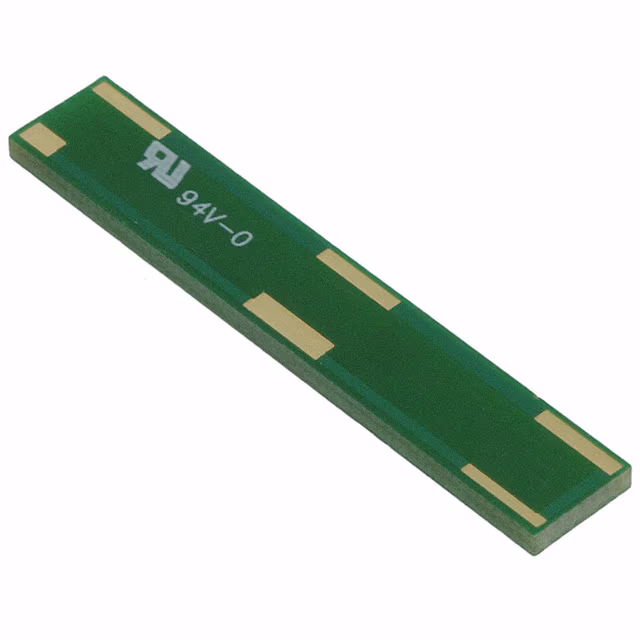

1513156-2RF ANT 915MHZ PCB TRACE SLDR SMD |
0 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | 802.15.4 | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | PCB Trace | 1 | 2.5 | - | 1dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | ZigBee™ |
|
|
YFCA011AAINT_CELLULAR_FPC_ADH_150MM_IPEX- |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
W3917B0050ANT INTERNAL FPC 3G 880-960/17 |
0 |
|
Datasheet |
Internal Antenna | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Flat Patch | 2 | 2 | - | 2dBi, 4dBi | 2 W | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Bluetooth, DSRC, Wi-Fi, Zigbee™ |
|
|
W3918B0050RF ANT 2.45/5.45GHZ FLAT PATCH |
0 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.45GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Flat Patch | 2 | 2 | - | 3dBi, 4dBi | 2 W | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
A10192RF ANT 2.4GHZ PCB TRACE SLDR SMD |
0 |
|
Datasheet |
Fusca | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2.1 | -10dB | 0.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Bluetooth, WiMax™, WLAN, Zigbee™ |
|
ANT-868-USPRF ANT 868MHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
microSplatch™ | Tube | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 859MHz ~ 877MHz | Chip | 1 | 1.9 | - | 0.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.100" (2.54mm) | ISM, LoRa, Sensor Networks, SigFox |
|
|
2108971-7FPC ANT, MHF 4L, 150MM, UWB 3~8. |
0 |
|
Datasheet |
- | Bag | Active | Ultra Wide Band | Wide Band | 4.05GHz, 7.2GHz | 3GHz ~ 8.5GHz | Flat Patch | 2 | 2 | - | 1.2dBi, 3.6dBi | 10 W | Cable - 150mm | MHF4L | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
|
|
2108971-3FPC ANT, MHF, 150MM, UWB 3~8.5 G |
0 |
|
Datasheet |
- | Bag | Active | Ultra Wide Band | Wide Band | 4.05GHz, 7.2GHz | 3GHz ~ 8.5GHz | Flat Patch | 2 | 1.7, 2 | - | 1.3dBi, 3.8dBi | 10 W | Cable - 150mm | MHF | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
|
7488910520RF ANT 5.3GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
WE-MCA | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 5.3GHz | 5.15GHz ~ 5.35GHz | Chip | 1 | 2 | - | 3.6dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
7488910570RF ANT 5.8GHZ CHIP SOLDER SMD |
0 |
|
Datasheet |
WE-MCA | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 5.8GHz | 5.725GHz ~ 5.825GHz | Chip | 1 | 2 | - | 3.9dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
9000130RF ANT 2.4GHZ/4.9GHZ PCB TRACE |
0 |
|
Datasheet |
Prestta™ | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz | 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 4 | - | -10dB | 2dBi, 4dBi, 5dBi, 6dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
APRA2504G3ZRF ANT 1561/1575/1602MHZ CER PAT |
0 |
|
Datasheet |
APRA | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Chip | 3 | 3 | -10dB | 2.2dBi, 1.5dBi, 3.5dBi | - | - | Solder | - | Automotive | AEC-Q200 | Adhesive, Through Hole | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
20914200804000MHZ FLEXIBLE ANTENNA 80MM |
0 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ST1243-00-N01-BRF ANTENNA EMBEDDED MULTIBAND IO |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4875GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz, 5.925GHz ~ 7.125GHz | Chip | 3 | - | -10dB, -5dB | 2.8dBi, 1.5dBi, 2.1dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Wi-Fi |
|
|
ABAR1504-S2450-REV BWIFI PCB ANTENNA |
0 |
|
- |
ABAR | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.442GHz | 2.4GHz ~ 2.484GHz | Flat Patch | 1 | 2.7 | - | 2.28dBi | - | Cable - 250mm | I-PEX | - | - | - | Connector Mount | 0.031" (0.80mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
YFGC035WWAINT,GPS&GNSS,CERAMIC,-,NA,1559-1 |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AANI-FB-0085-0150WFPC ANT WI-FI6E/7 TRI-BAND 2.4/ |
0 |
|
Datasheet |
AANI-FB | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | - | Flat Patch | 2 | 2 | - | 0.4dBi, 1.5dBi | - | Cable - 150mm | I-PEX MHF4, W.FL | - | - | - | Adhesive | 0.008" (0.20mm) | ISM, LoRa, Sigfox |
|
|
AANI-FB-0085-0200WFPC ANT WI-FI6E/7 TRI-BAND 2.4/ |
0 |
|
Datasheet |
AANI-FB | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | - | Flat Patch | 2 | 2 | - | 0.4dBi, 1.5dBi | - | Cable - 200mm | I-PEX MHF4, W.FL | - | - | - | Adhesive | 0.008" (0.20mm) | ISM, LoRa, Sigfox |
RF Antennas Electronic Components
Frequently Asked Questions
Q1: What products are included in RF Antennas?
This category includes related RF Antennas subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for RF Antennas components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for RF Antennas and other electronic components.
