RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEANED1015Antenna Dipole 400-520 MHz 3 dBi |
7 |
|
Datasheet |
- | Retail Package | Active | General ISM | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 435MHz | 400MHz ~ 470MHz | Module | 1 | 1.5 | - | 3dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 11.900" (302.26mm) | General Purpose |
|
|
PEANFP10382400-2500, 5150-7125 MHz Wi-Fi 6 |
7 |
|
Datasheet |
- | Retail Package | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 4.762GHz | 2.4GHz ~ 7.125GHz | Panel | 1 | 2 | - | 6dBi | 50 W | Cable - 914.4mm | N Type Male | - | - | - | Pole Mount | 1.180" (29.97mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
PEANFP10392400-2500, 5150-7125 MHz Wi-Fi 6 |
2 |
|
Datasheet |
- | Retail Package | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 4.762GHz | 2.4GHz ~ 7.125GHz | Panel | 1 | 2 | - | 6dBi | 50 W | Cable - 914.4mm | N Type Female | - | - | - | Pole Mount | 1.180" (29.97mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
PE51OM10396 DBI OMNI 617-2700MHZ N(F) |
4 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 788.5MHz, 2.205GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 2 | 2 | - | 6dBi, 6dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 35.100" (891.54mm) | 5G, LTE |
|
|
PEANED1012Antenna Folded Dipole 136-174 MH |
4 |
|
Datasheet |
- | Retail Package | Active | General ISM | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Module | 1 | 1.5 | - | 3dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 35.800" (909.32mm) | General Purpose |
|
PE51FP10125.5 DBI PANEL ANTEANNS 2XN (F) |
12 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 2.205GHz, 3.75GHz, 5.45GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Panel | 5 | 2 | - | 5.5dBi, 6dBi, 7dBi, 6dBi, 6.5dBi | 50 W | Cable - 300mm | N Type Female (2) | - | - | - | Wall Mount | 3.940" (100.08mm) | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|
|
PE51SE10022.4/4.9-5.8 GHZ 15 DBI 90 DUAL |
3 |
|
Datasheet |
- | Retail Package | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.375GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Panel | 2 | 2 | - | 13dBi, 15dBi | 100 W | - | N Type Female (2) | - | - | - | Bracket Mount | 61.500" (156.21cm) | 802.11a/b/g/n/ac |
|
|
PE51PD10024.9-5.8 GHz Dual Polarized/X-Pol |
5 |
|
Datasheet |
- | Retail Package | Active | General ISM, WiFi | SHF (f > 4GHz) | 5.075GHz, 5.6GHz | 4.75GHz ~ 5.85GH, 5.4GHz ~ 5.8GHz | Dish | 2 | 1.5 | - | 30dBi, 28dBi | 100 W | - | N Type Female (2) | - | - | - | Bracket Mount | 7.300" (185.42mm) | 802.11n, ISM, WiMax™ |
|
|
PEANOM10592400-2500, 5150-7125 MHz Wi-Fi 6 |
25 |
|
Datasheet |
- | Retail Package | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 4.762GHz | 2.4GHz ~ 7.125GHz | Dome | 1 | 2 | - | 6dBi | 50 W | Cable - 914.4mm | RP-SMA Male | - | - | - | Panel Mount | 3.150" (80.01mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
PEANOM10602400-2500, 5150-7125 MHz Wi-Fi 6 |
7 |
|
Datasheet |
- | Retail Package | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 4.762GHz | 2.4GHz ~ 7.125GHz | Dome | 1 | 2 | - | 6dBi | 50 W | Cable - 914.4mm | N Type Male | - | - | - | Panel Mount | 3.150" (80.01mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
PEANOM10612400-2500, 5150-7125 MHz Wi-Fi 6 |
3 |
|
Datasheet |
- | Retail Package | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 4.762GHz | 2.4GHz ~ 7.125GHz | Dome | 1 | 2 | - | 6dBi | 50 W | Cable - 914.4mm | N Type Female | - | - | - | Panel Mount | 3.150" (80.01mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

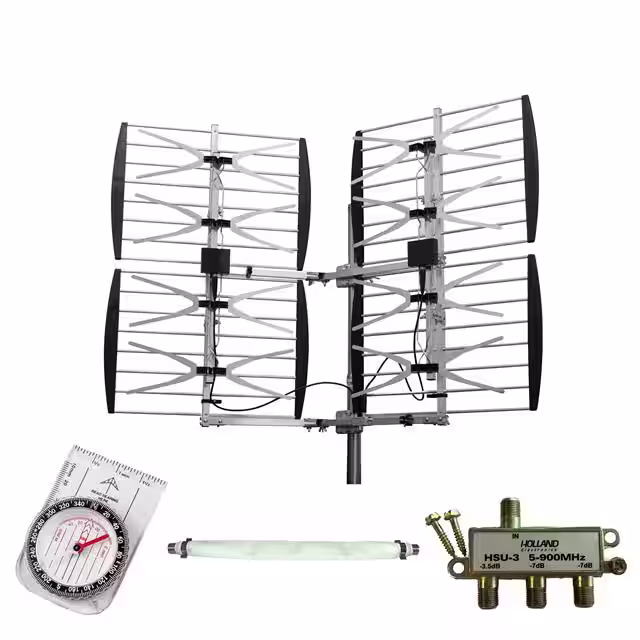

ANT7DX9098Outdoor 8-Bay HDTV Antenna Kit |
5 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PEANOM11302 Cellular, 2 Wi-Fi, 1 GPS Combi |
3 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 788.5MHz, 1.587GHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 6 | 2 | - | 4dBi, 26dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.182m, LNA | N Type Male, RP-SMA Male, TNC Male | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
PEANOM11312 Cellular, 2 Wi-Fi, 1 GPS Combi |
3 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 788.5MHz, 1.587GHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 6 | 2 | - | 4dBi, 26dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.182m, LNA | N Type Male, RP-SMA Male, TNC Male | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
PEANOM11102 Cellular, 2 Wi-Fi, 1 GPS Combi |
3 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 788.5MHz, 1.587GHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 6 | 2 | - | 4dBi, 26dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.182m, LNA | N Type Male, RP-SMA Male, SMA Male | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
PEANOM11212 Cellular, 2 Wi-Fi, 1 GPS Combi |
3 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 788.5MHz, 1.587GHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 6 | 2 | - | 4dBi, 26dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.182m, LNA | RP-SMA Male, SMA Male, TNC Male | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
PEANOM11002 Cellular, 2 Wi-Fi, 1 GPS Combi |
3 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 788.5MHz, 1.587GHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 6 | 2 | - | 4dBi, 26dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.182m, LNA | RP-SMA Male, SMA Male | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
PEANOM11012 Cellular, 2 Wi-Fi, 1 GPS Combi |
3 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 788.5MHz, 1.587GHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 6 | 2 | - | 4dBi, 26dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.182m, LNA | RP-SMA Male, SMA Male | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
PEANOM11202 Cellular, 2 Wi-Fi, 1 GPS Combi |
3 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 788.5MHz, 1.587GHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 6 | 2 | - | 4dBi, 26dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.182m, LNA | RP-SMA Male, SMA Male, TNC Male | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
PEANOM11112 Cellular, 2 Wi-Fi, 1 GPS Combi |
3 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 788.5MHz, 1.587GHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 6 | 2 | - | 4dBi, 26dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.182m, LNA | N Type Male, RP-SMA Male, SMA Male | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
