RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SZK-C-0W07RF ANT WIFI 6GHZ FLEX ADHES UFL |
100 |
|
Datasheet |
WOLF | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.375GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 1.84, 2.2, 2.6 | -7dB, -8.5dB, -10.1dB | 1.85dBi, 5.5dBi, 3.4dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 802.11a/b/g/-c/ax, Bluetooth, Wi-Fi, WLAN |
|
PE51MO10032.4 GHz 3 dBi Black Radome Enclo |
50 |
|
Datasheet |
- | Retail Package | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.5 | - | 3dBi | 100 W | - | NMO | IP66 | - | - | Panel Mount | 2.710" (68.83mm) | 802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN |
|
PE51RD10233DBI RBR DUCK 2400-2500MHZ RPSMA |
86 |
|
Datasheet |
- | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Blade, Tilt/Swivel | 1 | 2 | - | 3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.550" (140.97mm) | Bluetooth, ISM, Wi-Fi, WLAN |
|
|
MIA-HB-800-2700/100-00273-01Ultra-wideband 4GLTE Antenna |
50 |
|
Datasheet |
- | Tape & Box (TB) | Active | Cellular | Wide Band | 892MHz, 2.205GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Flat Patch | 2 | 3 | - | 2.5dBi, 3.5dBi | 50 W | - | I-PEX | - | - | - | - | 0.004" (0.10mm) | 2G, 3G, 4G, LTE |
|
|
MEA-960-LTE/100-00140-014G LTE Omni-Directional Antenna |
50 |
|
Datasheet |
- | Tape & Box (TB) | Active | Cellular | Wide Band | 825MHz, 2.205GHz | 690MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 2 | 3.5 | - | 3dBi | 20 W | - | SMA Male | IP63 | - | - | - | 3.228" (82.00mm) | 4G, LTE |
|
|
MEA-2400-SMA/100-00152-012.4 GHz WIFI/Bluetooth/ISM Anten |
40 |
|
Datasheet |
- | Tape & Box (TB) | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | - | 2dBi | - | - | SMA Male | IP66 | - | - | Connector Mount | 3.150" (80.00mm) | Bluetooth, ISM, Wi-Fi |
|
|
PEANLP100811920-2170 MHz, 10 dBi, Gain, V- |
30 |
|
Datasheet |
- | Retail Package | Active | Cellular | Wide Band | 2.045GHz | 1.92GHz ~ 2.17GHz | Panel | 1 | 1.5 | - | 10dBi | 100 W | Cable - 238.76mm | N Type Female | - | - | - | Bracket Mount | 5.900" (149.86mm) | 4G, 5G, CDMA, GSM, IoT, LoRa, LPWAN, LTE, LTE-M, M2M, NB-IoT |
|
|
PEANRBD1036860 MHz to 870 MHz Stubby Antenn |
50 |
|
Datasheet |
- | Retail Package | Active | General ISM | UHF (300MHz ~ 1GHz) | 865MHz | 860MHz ~ 870MHz | Whip, Tilt | 1 | 2 | - | 1dBi | 10 W | - | SMA Male | IP65 | - | - | Connector Mount | 2.010" (51.05mm) | General Purpose |
|
|
PEANRBD1037860 MHz to 870 MHz Stubby Antenn |
100 |
|
Datasheet |
- | Retail Package | Active | General ISM | UHF (300MHz ~ 1GHz) | 865MHz | 860MHz ~ 870MHz | Whip, Straight | 1 | 2 | - | 1dBi | 10 W | - | SMA Male | IP65 | - | - | Connector Mount | 2.010" (51.05mm) | General Purpose |
|
|
PE51OM10232.4 GHz 3 dBi Black Radome Enclo |
18 |
|
Datasheet |
- | Retail Package | Active | Bluetooth, General ISM, WiFi | UHF (1GHz ~ 2GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.5 | - | 3dBi | 100 W | - | N Type Female | IP66 | - | - | Panel Mount | 2.700" (68.58mm) | 802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
MEA-500-LP-CM/100-00298-012.4/5.0/6.0 GHZ ISM Connector Mo |
10 |
|
Datasheet |
- | Tape & Box (TB) | Active | General ISM, WiFi | Wide Band | 2.45GHz, 5.422GHz | 2.41GHz ~ 2.49GHz, 4.92GHz ~ 5.925GHz | Whip, Straight | 2 | 1.7, 1.4 | -17.1dB, -12.3dB | 4.1dBi, 3.9dBi | - | - | SMA | - | - | - | Connector Mount | 5.315" (135.00mm) | ISM, Wi-Fi |
|
|
NW-42AH1271TV Antenna Transformer 75/30Ohm |
6 |
|
- |
* | Bulk | Active | VHF, UHF, P25 | - | - | - | - | - | - | - | - | - | Filter | F Type | - | - | - | - | - | - |
|

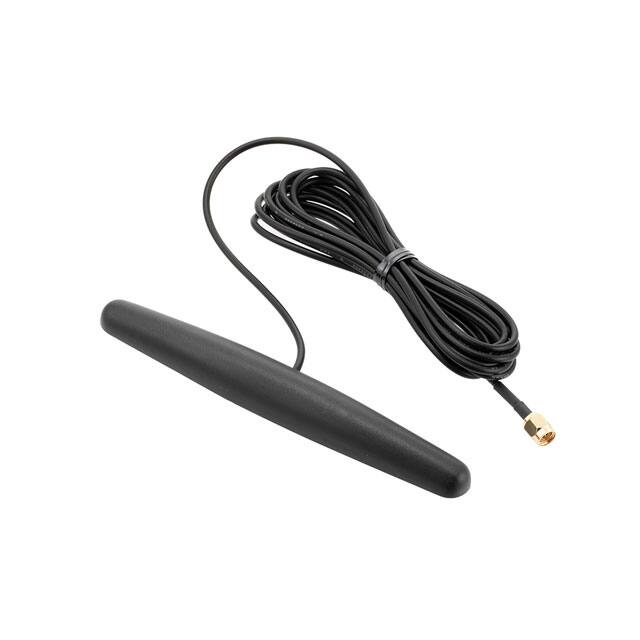

PE51GM10012DBI GLASS/SURFACE MOUNT ANT SMA |
41 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | - | 2 | 2 | - | 2dBi | - | Cable - 2.794m | SMA Male | - | - | - | Surface Mount | - | General Purpose |
|
|
MPA-406-1612/189-00050-01PASSIVE GPS IRIDIUM MICROSTRIP A |
8 |
|
Datasheet |
- | Tape & Box (TB) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.602GHz | 1.565GHz ~ 1.64GHz | Ceramic Patch | 1 | - | - | 2dBi | - | - | Connector | - | - | - | Connector Mount | 0.256" (6.50mm) | GPS |
|
|
MEA-915-01-SMA/100-00159-01915 MHz ISM Connector Mount |
25 |
|
Datasheet |
- | Tape & Box (TB) | Active | General ISM | UHF (300MHz ~ 1GHz) | 950MHz | 900MHz ~ 1GHz | Whip, Straight | 1 | - | -8dB | 3.3dBi | 25 W | - | SMA Male | IP56 | - | - | Screw | 1.890" (48.00mm) | ISM |
|
|
MEA-5GNR-UWB-AM/100-00253-015GNR ADHESIVE MOUNT ANTENNA |
10 |
|
Datasheet |
- | Tape & Box (TB) | Active | Cellular | Wide Band | 788.5MHz, 2.059GHz, 4.15GHz, 5.537GHz | 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Flat Bar | 4 | 1.7, 1.9, 2, 2.9 | -135dB, -11.7dB, -10.9dB, -8.5dB | 2dBi, 2.4dBi, 4.6dBi, 5.8dBi | 25 W | Cable - 3m | SMA Male | - | - | - | Adhesive | 0.256" (6.50mm) | 2G, 3G, 4G, 5G |
|
|
MEA-UWB-LTE-90/100-00139-01Ultra Wideband 4G LTE Antenna |
10 |
|
Datasheet |
- | Tape & Box (TB) | Active | Bluetooth, Navigation, WiFi | Wide Band | 825MHz, 2.205GHz | 690MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Whip, Tilt | 2 | 2.2 | - | 2.5dBi, 3.5dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 5.433" (138.00mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|
|
PEANRBD10462.4 GHz to 2.5 GHz Concave Shape |
49 |
|
Datasheet |
- | Retail Package | Active | Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 3dBi | 10 W | - | SMA Male | IPX7 | - | - | Connector Mount | 5.870" (149.10mm) | 5G, 802.11b/g/n, ISM, Wi-Fi, WLAN |
|
|
PEANRBD1027136-174 MHz Rubber Duck Antenna, |
10 |
|
Datasheet |
- | Retail Package | Active | General ISM | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 1.8dBi | 50 W | - | - | - | - | - | Connector Mount | 6.000" (152.40mm) | General Purpose |
|
ANT1000RF ANT 5921MHZ CERAMIC PATCH PI |
10 |
|
Datasheet |
- | Tray | Active | WiFi | SHF (f > 4GHz) | 5.921GHz | 5.916GHz ~ 5.926GHz | Ceramic Patch | 1 | 1.8 | -10dB | 4.5dBi | - | - | Solder | - | - | - | Adhesive | 0.157" (4.00mm) | 802.11a |
RF Antennas Electronic Components
Frequently Asked Questions
Q1: What products are included in RF Antennas?
This category includes related RF Antennas subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for RF Antennas components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for RF Antennas and other electronic components.
