| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AN110505-02C-160-MHF1RF ANT ISM915/2400/5800 3G 4G 5G |
78 |
|
Datasheet |
AN110505 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 880MHz, 2.4475GHz, 5.5375GHz | 832MHz ~ 928MHz, 2.4GHz ~ 2.495GHz, 5.15GHz ~ 5.925GHz | PCB Trace | 3 | 1.93, 2.32, 2.62 | -10dB, -7dB, -8dB | 1.8dBi, 4.3dBi, 5dBi | 10 W | Cable - 160mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.031" (0.80mm) | 5G, IoT, ISM, LP-WAN, LTE, RFID, Smart Meters |
|
|
SZK-C-1W09-100-012.4GHz, 5GHz, 6GHz 802.11ax, 802 |
75 |
|
Datasheet |
WOLF | Bulk | Active | Bluetooth, WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 1.8, 2.2, 2.6 | -10dB, -8.5dB, -7dB | 1.85dBi, 5.5dBi, 3.4dBi | 3 W | Cable - 100mm | IPEX MHF1, U.FL (UMCC) | - | - | - | Adhesive | 0.008" (0.20mm) | 802.11ax, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
|
SZP-C-2L145G ANT 617-5000MHZ SMD CHIP |
100 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 788.5MHz, 1.4725GHz, 1.955GHz, 2.35GHz, 2.595GHz, 3.75GHz | 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz | Chip | 6 | - | - | 1.47dBi, 0.01dBi, 2.82dBi, 3.69dBi, 3.26dBi, 5.91dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | 2G, 3G, 4G, 5G, LTE |
|
SZC-N-0G07RF ANT 1.575/1.602GHZ CER PATCH |
95 |
|
Datasheet |
ARIETISb | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.572GHz ~ 1.578GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 1 | 2.35, 2.9 | -10dB | 2.5dBi, 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Galileo, GLONASS, GNSS, GPS |
|
|
ATLTE-20144-2.0BT4G/3G/2G TERMINAL ANTENNA 2DB |
35 |
|
Datasheet |
ATLTE | Bulk | Active | Cellular | Wide Band | 704MHz, 824MHz, 960MHz, 1.71GHz, 1.88GHz, 2.17GHz, 2.3GHz, 2.5GHz, 2.7GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Blade, Tilt | 2 | 3.5, 4 | - | 2dBi | - | SMA Male | - | - | - | - | Connector Mount | 5.669" (144.00mm) | 2G, 3G, 4G, GSM, LTE |
|
ANT-ELE-S01-008RF ANT 892MHZ/1.85GHZ WHIP STR |
81 |
|
Datasheet |
MAG | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Straight | 2 | 2 | - | - | - | - | M5 | - | - | - | Magnetic | 12.750" (323.85mm) | - |
|
ATIGG1040-1RF ANT GNSS/GPS CER PATCH IPEX |
68 |
|
Datasheet |
ATIGG | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.6085GHz | 1.574GHz ~ 1.576GHz, 1.602GHz ~ 1.615GHz | Ceramic Patch | 2 | 2 | - | -3dBi | - | Cable - 60mm, LNA, Filter | I-PEX MHF | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
|
AT5G-25167-4.0BT5G/4G LTE TERMINAL ANTENNA 4DB |
35 |
|
Datasheet |
AT5G | Bulk | Active | Cellular | Wide Band | 704MHz, 960MHz, 1.71GHz, 2.7GHz, 3.3GHz, 5GHz, 5.85GHz | 704MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz, 5GHz ~ 5.85GHz | Blade, Tilt | 4 | 2, 3, 3.5, 4 | - | 4dBi | - | SMA Male | - | - | - | - | Connector Mount | 6.575" (167.00mm) | 2G, 3G, 4G, 5G, LTE |
|
PE51RD10155DBI RBR DUCK 2400-2500MHZ RPSMA |
96 |
|
Datasheet |
- | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Blade, Tilt/Swivel | 1 | 2 | - | 4.52dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.700" (195.58mm) | Bluetooth, ISM, Wi-Fi, WLAN |
|
|
H2P13APAXB0100GNSS 1560-1606 MHZ ULTRA WIDE BA |
85 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.561GHz, 1.602GHz | 1.598GHz ~ 1.606GHz | Ceramic Patch | 3 | 2 | - | 1.6dBi, 1.9dBi, 4.2dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
SZK-C-1L145G ANT FLAT PATCH IPEX |
100 |
|
Datasheet |
ARCTURUS | Bag | Active | Cellular | Wide Band | 788.5MHz, 1.5435GHz, 1.955GHz, 2.35GHz | 617MHz ~ 960MHz, 1.427GHz ~ 1.66GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz | PCB Trace | 4 | 1.3, 2.3, 4, 5.9 | -3dB, -4.4dB, -8dB, -17dB | 2.8dBi, 1.2dBi, 2.9dBi, 3.2dBi | 5 W | Cable - 180mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G |
|
|
1001044GPS CERAMIC PATCH ANTENNA |
74 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | 2 | - | 0.3dBic | - | - | - | - | - | - | Adhesive | 0.264" (6.70mm) | GPS |
|
RST-W5C9-195013-22M-GE-001RF ANT 2.4GHZ/5.8GHZ WHIP TILT |
86 |
|
Datasheet |
RST | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | 2, 2 | - | 4.5dBi, 5dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 7.677" (195.00mm) | 802.15.4, Bluetooth, Wi-Fi |
|

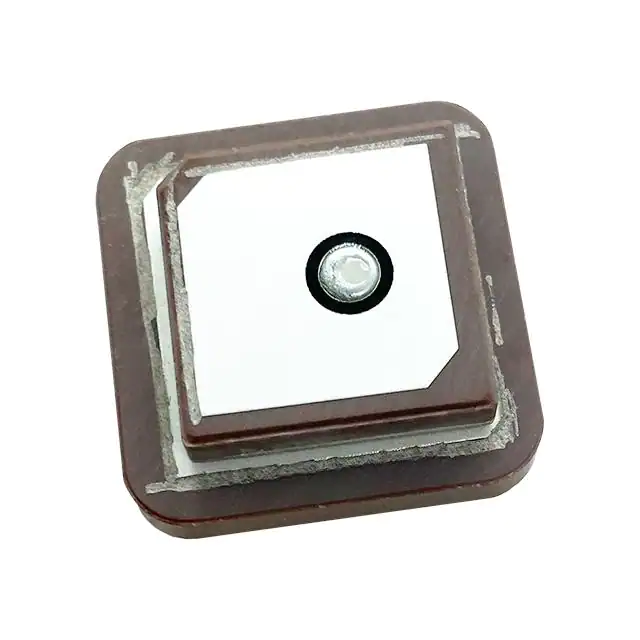

ATPGGBL5R2580ARF ANT GPS L1+L5/GLONASS/BEIDOU |
44 |
|
Datasheet |
ATPGGBL5 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.577GHz, 1.602GHz | 1.164GHz ~ 1.188GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.591GHz ~ 1.563GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 5 | 1.8 | - | 0.5dBi, 2.4dBi, 0.6dBi, 0.6dBi, 3.4dBi | - | - | Pin | - | - | - | Adhesive | 0.315" (8.00mm) | Beidou, GLONASS, GPS |
|
|
JCG401-1RUBBER ANTENNA WITH SMA MALE CON |
82 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 859MHz, 920MHz, 1.94GHz | 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 3 | 2.5 | - | 2dBi, 2dBi, 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.319" (58.90mm) | GSM |
|
|
JCG401RUBBER ANTENNA 824~894/1710~2170 |
38 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 859MHz, 920MHz, 1.94GHz | 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 3 | 2.5 | - | 2dBi, 2dBi, 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.102" (53.40mm) | GSM |
|
1513472-1UAM ASSEMBLY |
54 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.51GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.875GHz | Module | 2 | 3 | - | 3dBi | 10 W | Cable - 595mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.394" (10.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
AN.5G.INT1.100.IP45G INTERNAL ANTENNA Mini-profile |
58 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (3GHz ~ 4GHz) | 3.4GHz | 800MHz ~ 6GHz | Flat Patch | 1 | - | - | 2.5dBi | - | Cable - 100mm | I-PEX4 | - | - | - | Surface Mount | - | 3G, 4G, 5G, LTE, Wi-Fi |
|
PE51RD10212DBI RBR DUCK 2400-2500MHZ SMA |
91 |
|
Datasheet |
- | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 2dBi | 2 W | - | RP-SMA Male | - | - | - | Magnetic | 2.950" (74.93mm) | Bluetooth, ISM, Wi-Fi, WLAN |
|
|
ASGP.1575.25B.4.A.01RF ANT |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | - | - | 1.5dBi | - | - | SMA Female | - | - | - | Surface Mount | 0.266" (6.75mm) | GPS |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
