RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD617-6000S143ANT DAS OMNI 4G LTE 5G CBRS SISO |
20 |
|
Datasheet |
Omni Antenna | Box | Active | Cellular | Wide Band | 711.5MHz, 883MHz, 1.45GHz, 2.195GHz, 3.55GHz, 5.45GHz | 617MHz ~ 806MHz, 806MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | Module | 6 | 1.8 | - | 1.5dBi, 2.2dBi, 3.5dBi, 4.5dBi, 6dBi, 6dBi | 50 W | Cable - 300mm | 4.3/10 - Female | IP50 | - | - | Through Hole | 0.709" (18.00mm) | 4G, 5G |
|
|
TRAB4303RF ANT 440MHZ DOME NMO BASE MT |
19 |
|
Datasheet |
Phantom® | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 440MHz | 430MHz ~ 450MHz | Dome | 1 | 2 | - | 3dBi | 150 W | - | NMO | - | - | - | Base Mount | 3.300" (83.82mm) | - |
|
|
GVLBD356.AGVLB356.A GNSS L1/L5 STACKED PAT |
10 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GPSFBD356.AGPSFB356.A GNSS L1/L2 STACKED PA |
10 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPEN14918HDHEAVY DUTY ANTENNA WHIP |
22 |
|
Datasheet |
Portables | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Whip, Straight | 1 | 2 | - | 1dBi | 7 W | - | M7 | - | - | - | Connector Mount | 6.130" (155.70mm) | - |
|
|
L000682-80EVALUATION BOARD ASSY - L000657- |
20 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 2.808GHz | 617MHz ~ 5GHz | PCB Trace | 1 | 3.9 | - | 6dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | 5G, LTE, UMTS, WCDMA |
|
|
L000810-80EVALUATION BOARD ASSY - L000810- |
20 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 3.748GHz | 2.496GHz ~ 5GHz | PCB Trace | 1 | 2.6 | - | 6dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | 5G, CBRS |
|
|
L000657-80EVALUATION BOARD ASSY - L000657- |
19 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 2.808GHz | 617MHz ~ 5GHz | PCB Trace | 1 | 4.5 | - | 6dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | 5G, LTE, UMTS, WCDMA |
|

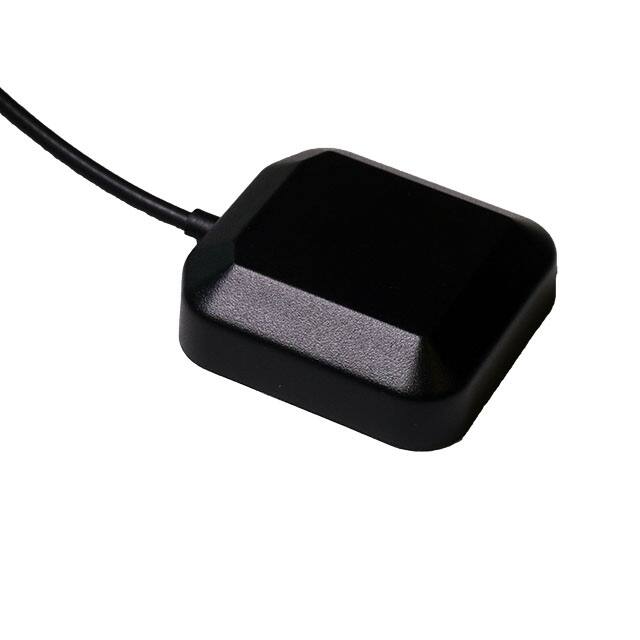

AEARBD040038-S1621RF ANT 1.6GHZ MODULE SMA ML MAG |
99 |
|
Datasheet |
AEAR | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.626GHz | Module | 1 | 1.5 | - | 0.46dBi | - | - | SMA | - | - | - | Magnetic | 0.484" (12.30mm) | - |
|
|
L000670-80L000670-01 ANTENNA WITH EVB ASSY |
17 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.583GHz | 1.175GHz ~ 1.177GHz, 1.56GHz ~ 1.607GHz | PCB Trace | 2 | 2.5 | - | 3dBi, 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | GNSS, GPS |
|
|
DCM.59.0ZZ115.9GHZ CONNECTOR MOUNT ANTENNA W |
91 |
|
Datasheet |
- | Bulk | Active | General ISM | SHF (f > 4GHz) | 5.857GHz | 5.79GHz ~ 5.925GHz | Module | 1 | - | - | 8.5dBi | 10 W | - | Fakra | IP52 | - | - | Connector Mount | 0.472" (12.00mm) | General Purpose |
|
APAMBJ-145RF ANT 2.4GHZ/5.8GHZ DOME PNL MT |
46 |
|
Datasheet |
APAMBJ | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | 5.1GHz ~ 5.9GHz | Dome | 2 | 2 | - | 5dBi, 2dBi | - | Cable - 2.5m | SMA Male | - | - | - | Panel Mount | 1.437" (36.50mm) | Bluetooth, Wi-Fi |
|
|
HG72703RDR-NMANTRUB DUCK 700-2700MHZ 3DBI |
10 |
|
Datasheet |
HG | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Whip, Straight | 3 | 2 | - | 3dBi | - | - | N Type Male | - | - | - | Magnetic | 7.100" (180.34mm) | AWS, PCS |
|
LPT600/3800DMNWANTENNA 0.617-3.8GHZ |
23 |
|
Datasheet |
Low Profile Transit | Bag | Active | Cellular | Wide Band | 788.5MHz, 1.94GHz, 2.5GHz, 3.6GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.8GHz | Whip, Straight | 4 | 2.5, 3 | -6dB, -7dB | 3.9dBi, 5.3dBi, 5.4dBi, 4.7dBi | 60 W | - | N Type Female | IP67 | - | - | Connector Mount | 3.118" (79.20mm) | 4G, 5G, LTE |
|
|
HG2407RD-RTPANTRUBBER DUCK 2.4GHZ 7DBI |
18 |
|
Datasheet |
HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 7dBi | 50 W | - | RP-TNC | - | - | - | Connector Mount | 15.100" (383.54mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
AHP2258.07.0060AACTIVE GNSS L1/L2 PATCH ANTENNA |
85 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
UTRA4301S3NB-001RF ANT 460MHZ DOME NMO BASE MT |
24 |
|
Datasheet |
Ultra Phantom® | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 430MHz ~ 490MHz | Dome | 1 | 2.5 | - | 3.6dBi | - | - | NMO | IP67 | - | - | Base Mount | 3.409" (86.60mm) | - |
|
X1005244-LWA3SX10A2ANTENNA GNSS / LTE / WIFI |
80 |
|
Datasheet |
- | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.495GHz, 2.45GHz, 5.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Module | 8 | 2, 2.5, 3 | - | 3.5dBi, 1.1dBi, 2.1dBi, 2.3dBi, 4.6dBi, 3.7dBi, 4.5dBi, 3.4dBi | - | Cable - 1m, LNA | SMA Male (2), RP-SMA Male (1) | IPX7 | - | - | Adhesive | 0.500" (12.70mm) | GLONASS, GPS, GNSS, LTE, Wi-Fi |
|
|
SWA2100ANT MIMO LTE GPS GLONASS |
39 |
|
Datasheet |
- | Box | Active | GPS, Navigation, WiFi | Wide Band | 829MHz, 1.5885GHz, 2.2GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz | Dome | 3 | 3, 1.5, 3 | - | 2.5dBi, 28dB, 2dBi | - | Cable - 3m | SMA (3) | IP67 | - | - | Direct Mount | 0.575" (14.60mm) | GLONASS, GPS, LTE |
|
|
TFX125.AFLEXIBLE INVISIBILE GNSS ANTENNA |
46 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.227GHz, 1.278GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Flat Patch | 6 | - | - | -18.69dBic, -15.8dBic, -13.07dBic, -5.54dBic, -5.54dBic, -7.26dBic | - | Cable - 123.8mm, LNA | Fakra | - | - | - | Connector Mount | 0.020" (0.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
