RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-8COIL17868MHZ COIL ANTENNA 17X5.5MM +2. |
54 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 863MHz ~ 873MHz | Helical | 1 | 1.6 | - | 2.5dBi | 1 W | - | - | - | - | - | Surface Mount | 0.217" (5.50mm) | - |
|
CGGBP.25.2.A.02GPS/GLONASS/GALILEO/BEIDOU PATCH |
61 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.556GHz ~ 1.566GHz , 1.574GHz ~ 1.576GHz , 1.597GHz ~ 1.607GHz | Ceramic Patch | 3 | - | -6dB | 3.25dBi, 4.35dBi, 3.44dBi | - | - | Pin | - | - | - | Surface Mount | 0.079" (2.00mm) | GLONASS, GNSS, GPS |
|
ANT-BEAD-868RF ANT 868MHZ BEAD SLD TH |
29 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | - | Bead | 1 | 2 | -9dB | 0dBi | - | - | Solder | - | - | - | Through Hole | 0.354" (9.00mm) | General Purpose |
|
PHC-M4-433RF ANT 433MHZ WHIP STR |
71 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | - | - | - | - | - | Screw-Mount | - | - | - | Through Hole | 1.693" (43.00mm) | - |
|

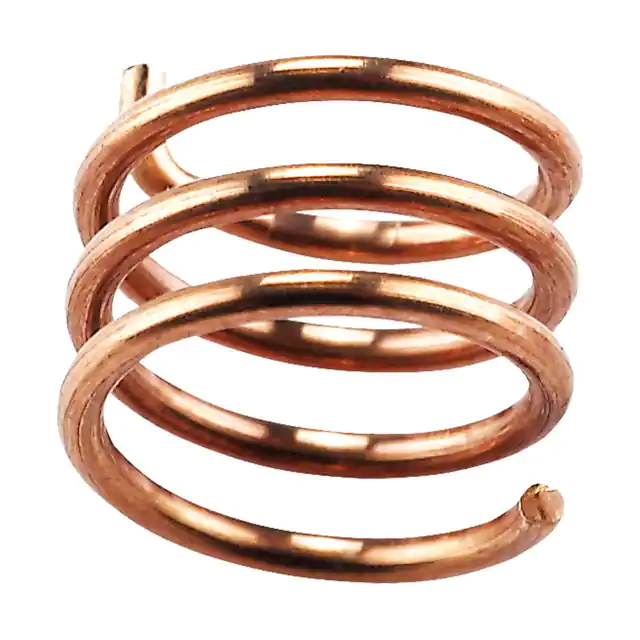

HA.21.ARF ANT 868MHZ HELICAL SOLDER SMD |
46 |
|
Datasheet |
- | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Helical | 1 | - | -10dB | 1.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.433" (11.00mm) | ISM |
|
1461850300RF ANT 892MHZ/1.9GHZ FLAT 300MM |
53 |
|
Datasheet |
146185 | Bulk | Active | Cellular, WiFi | Wide Band | 892MHz, 1.9GHz, 4.5GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3GHZ ~ 6GHz | Flat Patch | 3 | - | -6dB | 4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | WLAN |
|
1004259ANTENNA CERAMIC, GPS ACTIVE 25X6 |
26 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | 1.5 | - | 1.5dBic | - | Cable - 76mm, LNA, Filter | I-PEX MHF | - | - | - | Surface Mount | 0.256" (6.50mm) | GLONASS, GPS |
|
MIKROE-2393RF ANT 169MHZ WHIP STR SMA MALE |
33 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 169MHz | - | Whip, Straight | 1 | - | - | - | - | - | SMA Male | - | - | - | Connector Mount | - | General Purpose |
|
W5101RF ANT 2.4GHZ FLAT PATCH SLDR |
100 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.48GHz | Flat Patch | 1 | 3 | - | 1.5dBi | - | - | Solder | - | - | - | Adhesive | 0.047" (1.20mm) | Bluetooth, WLAN, Zigbee™ |
|
EFD2471A3S-10MHF1FLEXMIMO WIFI 6E ANTENNA |
51 |
|
Datasheet |
- | Bag | Active | WiFi | Wide Band | 2.45GHz, 5.45GHz, 6.5625GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz, 6GHz ~ 7.125GHz | FlexPIFA | 3 | 2.5 | - | 2.2dBi, 3.8dBi, 3.3dBi | 10 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.185" (4.70mm) | Wi-Fi |
|
ANT-24G-905-SMARF ANT 2.4GHZ WHIP TILT RP-SMA-K |
32 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 5dB | - | - | RP-SMA-K | - | - | - | Connector Mount | 7.843" (199.20mm) | WLAN |
|

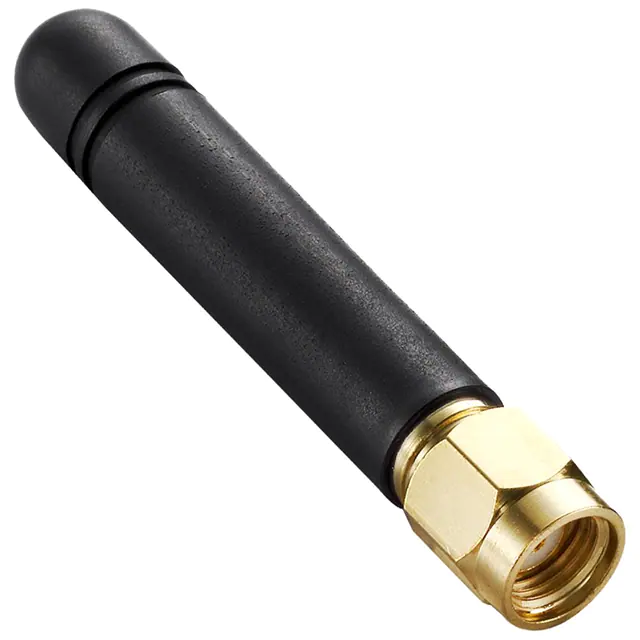

TG.22.0151TG.22 3G/2G CELLULAR CONNECTOR M |
82 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 860MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz | 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz | Whip, Straight | 5 | 3.5 | - | 1.42dBi, 1.91dBi, 2.51dBi, 3.32dBi, 2.89dBi | 20 W | - | RP-SMA Male | - | - | - | Connector Mount | 1.929" (49.00mm) | CDMA, DCS, EDGE, GSM, GPRS, HSPA, PCS, UMTS, WCDMA |
|
TI.08.A.0111TI.08 868MHZ TERMINAL ANTENNA SM |
52 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 869MHz | 868MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | -1.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 6.614" (168.00mm) | ISM |
|
ANT-4HELH44-SMA433MHZ HELICAL 44X10.5MM HINGED |
31 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Helical | 1 | 2 | - | 2.5dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 1.732" (44.00mm) | - |
|
AEBC1101XS-S5G/4G/LTE CELLULAR WHIP ANT |
80 |
|
Datasheet |
AEBC | Bag | Active | Cellular | Wide Band | 3.3GHz | 600MHz ~ 6GHz | Whip, Tilt | 1 | 3 | - | 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 5.256" (133.50mm) | 5G, CBRS, LTE |
|
ANT-DK-WLA1DL-5L0210I0-CRF ANT WHIP/TILT U.FL CONN MT |
51 |
|
Datasheet |
- | Bag | Active | WiFi | - | - | - | Whip, Tilt | - | - | - | - | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 7.480" (190.00mm) | Wi-Fi |
|
ANT-B8-PW-QW-UFLRF ANT LTE B8 WHIP STR CAB PAN |
58 |
|
Datasheet |
PW | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 920MHz | 870MHz ~ 960MHz | Whip, Straight | 1 | 2 | - | 1.6dBi | 10 W | Cable - 216mm, O-Ring Compatible | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 3.555" (90.30mm) | Cellular, GSM, LTE, NB-IoT, UMTS |
|
ANT-B28-PW-QW-UFLRF ANT LTE B28 WHIP STR CAB PAN |
38 |
|
Datasheet |
PW | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 750MHz | 700MHz ~ 810MHz | Whip, Straight | 1 | 2.7 | - | 1.7dBi | 10 W | Cable - 216mm, O-Ring Compatible | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 3.874" (98.40mm) | Cellular, GSM, LTE, NB-IoT, UMTS |
|
2118898-1902 928 & 2400 2483.5 DUAL BAND |
8 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 915MHz, 2.44GHz | 902MHz ~ 928MHz, 2.4GHz ~ 2.4835GHz | PCB Trace | 2 | 2 | - | 1dBi, 4dBi | - | Cable - 185mm | MMCX | - | - | - | Adhesive | 0.012" (0.30mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
GW.11.A153WGW.11 2.4GHZ WHITE DIPOLE ANTENN |
76 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | 1 | -10dB | 2.3dBi | 1 W | - | RP-SMA Male | - | - | - | Connector Mount | 3.323" (84.40mm) | Bluetooth, GSM, ISM, Wi-Fi, Zigbee™ |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
