RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
33-2410-07RF ANT 1.575/1.602GHZ DOME SMA |
14 |
|
Datasheet |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.606GHz | Dome | 2 | 1.5 | - | 28dB | - | LNA, Filter | SMA Female | IP67 | - | - | Magnetic | 0.591" (15.00mm) | GLONASS, GPS |
|
HG2404UANTOMNI 2.4GHZ 4DBI |
7 |
|
Datasheet |
HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.5 | - | 4dBi | 100 W | - | N Type Male | - | - | - | Magnetic | 8.100" (205.74mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
HG2414PANTFLAT PATCH 2.4GHZ 14DBI |
7 |
|
Datasheet |
HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Panel | 1 | 1.5 | - | 14dBi | - | - | N Type Female | - | - | - | Bracket Mount | 1.000" (25.40mm) | 802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN |
|
OC69421-FNFOMNI, 698-4200MHZ, 1.5/4/5 DBI,N |
18 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 829MHz, 1.85GHz, 2.045GHz, 2.3GHz, 2.595GHz, 3.75GHz | 698MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.1GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz | Whip, Straight | 6 | 2, 2.5 | - | 1.5dBi, 3.5dBi, 3.5dBi, 3.5dBi, 3.5dBi, 5dBi | 20 W | - | N Type Female | - | - | - | Bracket Mount | 9.764" (248.00mm) | 4G, 5G, CBRS |
|
OSCAR44/0.3M/NTYPEF/S/S/17450MHZ 5 ELEMENT YAGI ANTENNA NT |
19 |
|
Datasheet |
OSCAR 44 | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 450MHz | 400MHz ~ 480MHz | Yagi, 5-Element | 1 | 1.5 | - | 9dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 1.417" (36.00mm) | ISM |
|
|
CHW1010-ANT3-1.0COREHW GEN3S ANTENNA BOARD (LOCA |
7 |
|
Datasheet |
- | Box | Active | Bluetooth | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | PCB Trace | 1 | - | - | - | - | - | - | - | - | - | Surface Mount | - | Bluetooth |
|
60012854IN1 PANEL ANTENNA - 2XLTE, GNSS |
7 |
|
Datasheet |
AirLink® - Accessory | Box | Active | Cellular, Navigation, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.249GHz, 2.4GHz, 5GHz | 698MHz ~ 3.8GHz | Panel | 3 | - | - | - | - | Cable - 2m | - | - | - | - | Panel Mount | - | GNSS, LTE, Wi-Fi |
|
CFSA35606P-30D43FULTRA-LOW PROFILE/ LOW PIM ANT |
6 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | - | - | Module | 13 | 2.5, 2 | - | - | 50 W | - | - | - | - | - | Panel Mount | 0.299" (7.60mm) | - |
|
CFSA69383P1-30D43FANT OMNI 30CM D43F HOLES |
14 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | Wide Band | 752MHz, 859MHz, 920MHz, 1.45GHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz, 3.9GHz | 698MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 4GHz | Flat Panel | 11 | 1.5, 1.8, 2 | - | 3.2dBi, 2.6dBi, 3.4dBi, 4.2dBi, 4dBi, 4.4dBi, 4.2dBi, 4.3dBi, 5.4dBi, 2.4dBi, 3dBi | 50 W | Cable - 300mm | 4.3/10 - Female | - | - | - | Panel Mount | 0.300" (7.62mm) | AWS, GSM, DCS, LTE, UMTS, WiMax™ |
|
|
HG909Y-NFANTSS YAGI 900MHZ 9DBI |
6 |
|
Datasheet |
HG | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Yagi | 1 | 1.5 | - | 9dBi | 100 W | Cable - 457.2mm | N Type Female | - | - | - | Bracket Mount | 21.750" (552.45mm) | GSM, ISM, RFID, WLAN |
|
PA9-12RF ANT 915MHZ FLAT PNL N FEM |
10 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Panel | 1 | 1.5 | - | 12dBi | - | - | N Type Female | - | - | - | Bracket Mount | 1.417" (36.00mm) | - |
|
8178D-HRRF ANT 1.5845GHZ PUCK TNC FEM TH |
10 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Puck | 1 | - | - | 2dBic | - | LNA, Filter | TNC Female | IP67 | - | - | Through Hole | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
CHW1010-ANT2-1.1COREHW GEN3 ANTENNA BOARD |
16 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.441GHz | 2.4GHz ~ 2.483GHz | Module | 1 | - | - | - | - | - | PCB | - | - | - | - | 0.142" (3.60mm) | - |
|
PCTP2425RF ANT 2.45GHZ WHIP STR TNC M |
14 |
|
Datasheet |
PCTP | Bulk | Active | Bluetooth, Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 5dBi | 5 W | - | TNC Male | IP67 | - | - | Connector Mount | 12.992" (330.00mm) | 2G, 3G, 5G, Bluetooth, Cellular, LTE, LMR/TETRA/P25, Wi-Fi |
|
33-3400-01-01RF ANT 1.575GHZ/1.602GHZ DOME |
7 |
|
Datasheet |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.606GHz | Dome | 1 | 1.5 | - | 4.25dBic | - | LNA | TNC Female | IP67 | - | - | Panel Mount | 0.827" (21.00mm) | GLONASS, GPS |
|
CAF95956RF ANT 900MHZ PANEL SMA FEM CHAS |
23 |
|
Datasheet |
Microsphere™ | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | 880MHz ~ 960MHz | Panel | 1 | 1.5 | - | 3dBi | 50 W | - | SMA Female | - | - | - | Chassis Mount | 0.098" (2.50mm) | - |
|
MFB9153RF ANT 915MHZ WHIP STR N TYPE |
13 |
|
Datasheet |
MFB | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | - | - | 3dB | 150 W | - | N Type Female | - | - | - | Pole Mount | 22.992" (584.00mm) | ISM, LoRa, LPWAN |
|
|
HGV-2458-05UANTOMNI 2.4/5.8GHZ 5DBI |
14 |
|
Datasheet |
HGV | Bag | Active | WiFi | Wide Band | 2.4GHz, 5.8GHz | - | Whip, Straight | 2 | - | - | 5dBi, 6dBi | - | - | N Type Female | - | - | - | Bracket Mount | 11.700" (297.18mm) | 802.11a, Wi-Fi, WiMax, WLAN |
|

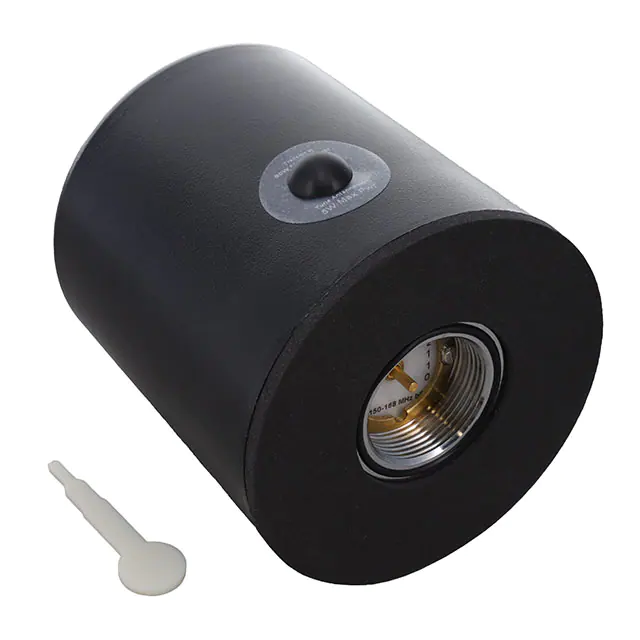

TRABT1500RF ANT 159MHZ DOME NMO BASE 2.3" |
16 |
|
Datasheet |
Phantom® | Bulk | Active | - | VHF (f < 300MHz) | 159MHz | 150MHz ~ 168MHz | Dome | 1 | - | - | 0dBi | 60 W | - | NMO | - | - | - | Base Mount | 3.500" (88.90mm) | - |
|
|
HGV-906UANTOMNI 800/900MHZ 6DBI |
17 |
|
Datasheet |
HGV | Bag | Active | Cellular, Genral ISM | UHF (300MHz ~ 1GHz) | 892MHz | 824MHz ~ 960MHz | Whip, Straight | 1 | 1.5 | - | 6dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 23.600" (599.44mm) | GSM, ISM, WLAN |
