RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-1.4-CW-HWR-SMARF ANT 1.4GHZ WHIP TILT SMA MALE |
61 |
|
Datasheet |
HWR | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.4GHz | 1.35GHz ~ 1.45GHz | Whip, Tilt | 1 | 2 | - | 2.4dBi | - | - | SMA Male | - | - | - | Connector Mount | 5.591" (142.00mm) | - |
|
ANT-GSMSTUB4RF ANT 915MHZ/2GHZ WHIP STR 3M |
44 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 915MHz, 2GHz | 870MHz ~ 960MHz, 1.71GHz ~ 2.22GHz | Whip, Straight | 2 | 1.8 | - | 4dBi | 50 W | - | SMA Male | - | - | - | Magnetic | 4.449" (113.00mm) | GSM |
|
GW.51.5153RF ANT 2.45/5.375GHZ WHIP TILT |
63 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.375GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Whip, Tilt | 2 | - | - | 3.14dBi, 6.12dBi, 3.08dBi, 3.98dBi | 1 W | - | RP-SMA Male | - | - | - | Connector Mount | 7.795" (198.00mm) | Wi-Fi |
|
YB0010AALTE MAG MNT ANTENNA 2M SMA M |
76 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.2GHz, 2.43GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Module | 9 | 3.3 | - | 3.3dBi, 1.44dBi, 3.3dBi, 0.35dBi | - | - | SMA Male | IP66 | - | - | Magnetic | 0.610" (15.50mm) | LTE |
|
|
6001111PADDLE WIFI ANTENNA - 2.4/5GHZ |
85 |
|
Datasheet |
AirLink® - Accessory | Box | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | Whip, Tilt | 2 | - | - | - | - | - | - | - | - | - | Connector Mount | - | Bluetooth, Wi-Fi |
|
PCTCNMFTRF ANT 529MHZ WHIP STR NMO MNT |
51 |
|
Datasheet |
PCTCN | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 529MHz | 118MHz ~ 940MHz | Whip, Straight | 1 | 2 | - | - | 150 W | - | - | - | - | - | NMO Mount | 24.000" (609.60mm) | 2G, 3G, 5G, Bluetooth, Cellular, LMR/TETRA/P25, LTE |
|
TI.18.3113RF ANT 868MHZ WHIP TILT SMA MALE |
84 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 868MHz ~ 870MHz | Whip, Tilt | 1 | 1.9 | - | 3.2dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 15.315" (389.00mm) | ISM |
|
MIKROE-3374GPS&GLONASS EXTERNAL ANTENNA |
24 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.61GHz | 1.57GHz ~ 1.58GHz, 1.6GHz ~ 1.62GHz | Module | 2 | 1.5 | - | 5dBi | - | Cable - 3m, LNA | SMA Male | - | - | - | Magnetic | 0.598" (15.20mm) | GLONASS, GPS |
|
ANT-868-MHW-SMA-SRF ANT 868MHZ WHIP CTR CAB 79" |
21 |
|
Datasheet |
MHW | Bag | Active | 802.15.4 | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 876MHz | Helical | 1 | 1.3 | - | 4dBi | 10 W | Cable - 2m | SMA Male | - | - | - | Adhesive | 5.433" (138.00mm) | LoRa, LPWAN, Sigfox |
|
|
MIKROE-5114GPS&GLONASS EXTERNAL PASSIVE ANT |
29 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Module | 2 | 1.5 | - | 2.5dBic | - | Cable - 3m | SMA Male | - | - | - | Surface Mount | 0.598" (15.20mm) | GLONASS, GNSS, GPS |
|
TANGO28/0.1M/IPEX/S/S/352.4GHZ 21MM PANEL MOUNT STUBBY A |
68 |
|
Datasheet |
TANGO 28 | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 0dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.484" (12.30mm) | Bluetooth, Wi-Fi |
|
ALPHA10/2.5M/SMAM/S/S/20RF ANT 2.4GHZ BLADE SMA MALE ADH |
35 |
|
Datasheet |
ALPHA 10 | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Blade | 1 | 1.5 | - | 3dBi | - | - | SMA Male | - | - | - | Adhesive | 0.157" (4.00mm) | Bluetooth, WLAN, Zigbee™ |
|
ALPHA16/1M/SMAM/S/RP/17RF ANT 2.4GHZ BLADE RP-SMA MALE |
29 |
|
Datasheet |
ALPHA 16 | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Blade | 1 | 2 | - | 2dBi | - | - | RP-SMA Male | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, WLAN, Zigbee™ |
|

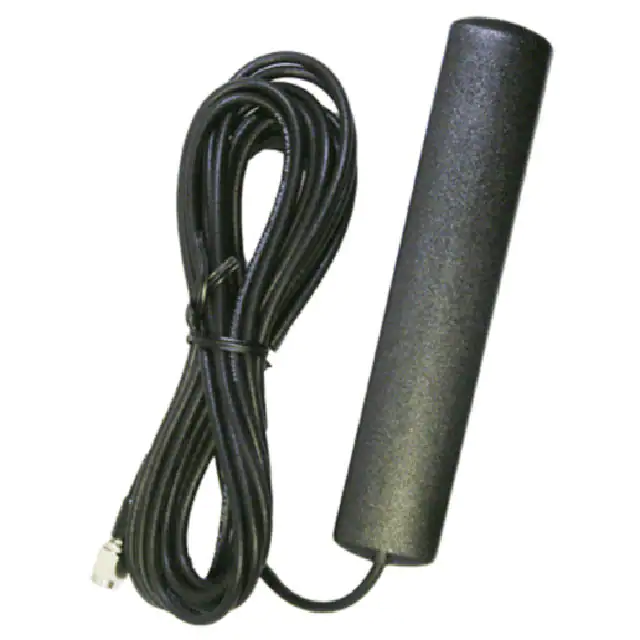

ANT-4GIBAR-SMARF ANT I BAR 4G LTE GSM S3M MA |
88 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 1.7GHz | 700MHz ~ 2.7GHz | PCB Trace | 1 | 1.5 | - | 3dBi | 10 W | Cable - 3m | SMA Male | - | - | - | Adhesive | 0.157" (4.00mm) | 4G, LTE |
|
FXUB71.A.54.C.001WIDE BAND FLEX MIMO ANTENNA 698M |
40 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (3GHz ~ 4GHz) | 3.3GHz | 600MHz ~ 6GHz | Flat Patch | 1 | - | - | - | - | Cable - 150mm | I-PEX MHF4L | - | - | - | Adhesive | 0.006" (0.15mm) | 4G/5G |
|
W5098DUAL WIFI EXTERNAL SWIVEL DIPOLE |
11 |
|
Datasheet |
Stick Antenna | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | 2 | - | 2.5dBi, 4dBi | - | - | RP-SMA | - | - | - | Connector Mount | 5.921" (150.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
DELTA12A/X/SMAM/S/S/17RF ANT 433MHZ/458MHZ WHIP STR |
97 |
|
Datasheet |
DELTA 12A | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz, 458MHz | - | Whip, Straight | 2 | 2 | - | 3dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 5.118" (130.00mm) | ISM |
|
DELTA12C/X/SMAM/S/S/17RF ANT 915MHZ WHIP STR SMA MALE |
71 |
|
Datasheet |
DELTA 12C | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | - | Whip, Straight | 1 | 2 | - | 3dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 5.118" (130.00mm) | ISM |
|
|
TG.62.A113WIDEBAND (600-7125MHZ) DIPOLE WA |
90 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 788MHz, 2.205GHz, 3.55GHz, 4.7GHz, 5.85GHz, 6.525GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.85GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Straight | 6 | - | - | 4.63dBi, 5.23dBi, 5.77dBi, 4.36dBi, 3.53dBi, 5.52dBi | - | - | SMA Male | IP67 | - | - | Wall Mount | 7.992" (203.00mm) | 2G, 3G, 4G, 5G, LTE |
|
GW.26.0111.HTRF ANT 2.4GHZ WHIP STR SMA MALE |
62 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | - | 0dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 1.181" (30.00mm) | Bluetooth, WLAN, Zigbee™ |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
