BOM Upload
RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSP69001299TRANTENNA PCB, IOT 35X9 |
5,598 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 1.94GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 2 | - | -2.5dB, -3dB | -2dBi, 1.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | Cellular, LTE Cat 1, LTE-M, NB-IoT, loRa, SigFox |
|
2445750-1ANTENNA 2.4GHZ HELICAL VERT THM |
2,367 |
|
Datasheet |
- | Tray | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Helical | 1 | 1.8 | - | 3dBi | 15 W | - | Solder | - | - | - | Surface Mount | 1.350" (34.29mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
|
SWA425AANT WIFI 6E IPEX MHF 4L 95MM |
244 |
|
- |
- | Bag | Active | WiFi | Wide Band | 2.45GHz, 6.137GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.125GHz | Flat Patch | 2 | - | -5dB | 3dBi, 4.5dBi | - | Cable - 95mm | I-PEX MHF4L | - | - | - | Surface Mount | 0.144" (3.65mm) | Wi-Fi |
|

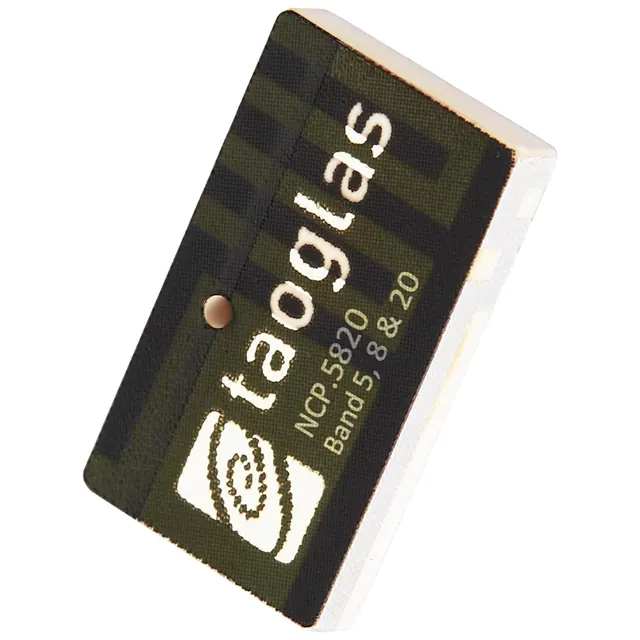

NCP.5820NB-IOT CERAMIC PATCH ANTENNA FOR |
1,577 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 826.5MHz, 859MHz, 920MHz | 791MHz ~ 862MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz | Ceramic Patch | 3 | - | -4.5dB, -5dB | -0.3dBi, 1.1dBi, 1.7dBi, 0.6dBi, 1.2dBi | 5 W | - | - | - | - | - | Surface Mount | 0.079" (2.00mm) | - |
|
1001435M0-AA10L0025ANTENNA ASSY, WLAN 25 |
1,424 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2 | - | 4.2dBi, 4.7dBi, 6.4dBi, 6dBi | 500 mW | Cable - 25mm | Solder | - | - | - | Adhesive | 0.382" (9.70mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
YF0002DAEMBEDDED, 700-960, 1710-2700, 33 |
1,000 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 830MHz, 2.21GHz, 4.15GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 5GHz | Module | 3 | 5 | - | 3dBi, 3dBi, 3dBi | - | - | - | - | - | - | Screw | 0.394" (10.00mm) | 5G |
|
|
YF0002CAEMBEDDED, 1710-2700, 3300-5000, |
994 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 2.21GHz, 4.15GHz | 1.71GHz ~ 2.7GHz, 3.3GHz ~ 5GHz | Module | 2 | 5 | - | 3dBi, 3dBi | - | - | - | - | - | - | Surface Mount | 0.394" (10.00mm) | 5G |
|
|
9003034F0-AA10L01005G HIGH BAND FPC ANTENNA, 100MM |
985 |
|
Datasheet |
- | Box | Active | Cellular | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.395GHz, 4.15GHz | 2.1GHz ~ 2.69GHz, 3.3GHz ~ 5GHz | Flat Patch | 2 | - | -7.7dB, -7.3dB | 4.2dBi, 4.3dBi | - | Cable - 100mm | MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 5G, IoT, LTE, M2M |
|
|
YF0002AAEMBEDDED, 700-960, 1710-2700, 33 |
973 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 830MHz, 2.21GHz, 4.15GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 5GHz | Module | 3 | 5 | - | 3dBi, 3dBi, 3dBi | - | - | - | - | - | - | - | 0.394" (10.00mm) | 5G |
|
|
YCGA003AAGNSS PATCH STANDARD ANTENNA 35*3 |
840 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | 1.56GHz ~ 1.61GHz | Ceramic Patch | 1 | - | - | - | - | - | - | - | - | - | - | 0.157" (4.00mm) | GNSS |
|
|
ST0224-10-401-ARF ANTENNA INTERNAL AMC PLUG DUA |
469 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 2.1dBi | 1 W | Cable - 100mm | - | - | - | - | Adhesive | 0.008" (0.20mm) | Wi-Fi |
|
ANT-2.4-FPC-LV150UFANT 2.4 FPC 45X7 150MM CBL UFL |
0 |
|
Datasheet |
ANT-2.4-FPC-LV | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.7 | - | 4.3dBi | 2 W | Cable - 150mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
EMB-910001WIFI EMBEDDED 5GHZ 4.3DBI 6" UFL |
4,989 |
|
Datasheet |
- | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.512GHz | 5.15GHz ~ 5.875GHz | - | 1 | 2 | - | 4.3dBi | - | Cable - 152.4mm | U.FL | - | - | - | Screw | 0.035" (0.90mm) | Wi-Fi |
|
|
ANT-5GW-FPC-LH150UFANT 5G FPC 120X20 150MM UFL |
961 |
|
Datasheet |
ANT-5GW-FPC-LH | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.947GHz, 2.495GHz, 3.75GHz, 4.7GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Flat Patch | 9 | 1.6, 1.7, 1.8, 1.9, 2, 2.5, 2.7, 4.7 | - | 5dBi, 5dBi, 5.5dBi, 6dBi, 5.2dBi, 5.1dBi, 7dBi, 6.2dBi, 6.8dBi | 2 W | Cable - 150mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | 2G, 3G, 4G, 5G, LTE |
|
|
L9000230-01ANTENNA WIFI6/6E FPC 20X110 100 |
0 |
|
Datasheet |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EFB2455A3S-15MH4LANT, FLEXPIFA, 2.4/5.5GHZ, 150MM |
118 |
|
Datasheet |
FlexPIFA™ | Bag | Active | Bluetooth, WiFi | Wide Band | 2.44GHz, 5.4GHz | 2.4GHz ~ 2.48GHz, 4.9GHz ~ 5.9GHz | Flat Bar | 2 | 2.5, 3 | - | 2.5dBi, 3dBi | - | Cable - 150mm | MHF4L | - | - | - | Adhesive | 0.500" (12.70mm) | Bluetooth, Wi-Fi |
|
|
P822603BROADBAND 5G/LTE/LPWA PCB ANTENN |
396 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Chip | 3 | 2.5, 3.3, 3.4 | - | 0.7dBi, 1dBi, 0.4dBi | 2 W | - | - | - | - | - | Surface Mount | 0.126" (3.20mm) | LoRa, LTE, Sigfox |
|
|
P822604BROADBAND 5G/LTE/LPWA PCB ANTENN |
396 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Chip | 3 | 2.5, 3.3, 3.4 | - | 0.7dBi, 1dBi, 0.4dBi | 2 W | - | - | - | - | - | Surface Mount | 0.126" (3.20mm) | LoRa, LTE, Sigfox |
|
|
ST0543-00-N08-USINGLE BAND EMBEDDED RF ANTENNA |
2,998 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.56GHz ~ 1.59GHz | Chip | 1 | - | -10dB | 2.9dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | GPS |
|
|
ST1225-10-401-ARF ANTENNA INTERNAL AMC PLUG MUL |
496 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 6.18GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.2GHz | PCB Trace | 2 | - | -7dB, -6dB | 2.6dBi | 1 W | Cable - 100mm | - | - | - | - | Adhesive | 0.033" (0.85mm) | Wi-Fi |
RF Antennas Electronic Components
Explore RF Antennas electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
