RF Amplifiers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | P1dB | Gain | Noise Figure | RF Type | Voltage - Supply | Current - Supply | Test Frequency | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZX60-05113LN+IC RF AMP GPS 5GHZ-11GHZ SMA |
13 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | 5GHz ~ 11GHz | 13dBm | 20.1dB | 1.7dB | General Purpose | 4.9V ~ 9V | 42mA | 9GHz ~ 11GHz | - | - | Chassis Mount | - |
|
CMD244K5DC-20 GHZ DISTRIBUTED DRIVER AMP |
11 |
|
Datasheet |
- | 32-TFQFN Exposed Pad | Tape & Reel (TR) | Active | 0Hz ~ 20GHz | 25dBm | 17.5dB | 3.5dB | General Purpose | 5V ~ 8.5V | 185mA | 0Hz ~ 10GHz | - | - | Surface Mount | 32-SMT (5x5) |
|
|
ZX60-123LN-S+IC RF AMP LTE 500MHZ-12GHZ SMA |
18 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | 500MHz ~ 12GHz | 16.5dBm | 18.4dB | 3.1dB | LTE, Radar, UMTS, WiFi, WiMAX, WLAN | 12V | 82mA | 2GHz | - | - | Chassis Mount | - |
|
|
ZX60-153LN-S+IC RF AMP LTE 500MHZ-15GHZ |
10 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | 500MHz ~ 15GHz | 16.5dBm | 14.9dB | 3.6dB | LTE, Radar, UMTS, WiFi, WiMAX, WLAN | 12V | 82mA | 2GHz | - | - | Chassis Mount | - |
|
ZX60-100VHX+IC RF AMP GPS 300KHZ-100MHZ |
9 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | 300kHz ~ 100MHz | 30dBm | 36dB | 4dB | General Purpose | 12V | 320mA | 300kHz ~ 100MHz | - | - | Chassis Mount | - |
|
|
ZX60-24A-S+IC RF AMP DBS 5GHZ-20GHZ SMA |
14 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | 5GHz ~ 20GHz | 19.4dBm | 24.4dB | 7.2dB | DBS, Radar | 5V | 270mA | 18GHz | - | - | Chassis Mount | - |
|
|
ZX60-83MP-S+GAIN BLOCK, 400 MHZ - 8 GHZ, 50 |
15 |
|
- |
- | Module, SMA Connectors | Tray | Active | 400MHz ~ 8GHz | 27.5dBm | 16.5dB | 3.2dB | 5G, ISM | 7.7V ~ 8.3V | 144mA | 2GHz | - | - | Chassis Mount | - |
|
ZX60-100VH+IC RF AMP GPS 300KHZ-100MHZ |
18 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | 300kHz ~ 100MHz | 30dBm | 36dB | 4dB | General Purpose | 12V | 320mA | 300kHz ~ 100MHz | - | - | Chassis Mount | - |
|
|
ZX60-183-S+IC RF AMP DBS 6GHZ-18GHZ SMA |
3 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | 6GHz ~ 18GHz | 18.5dBm | 24dB | 6.5dB | DBS, Radar | 5.5V | 260mA | 10GHz | - | - | Chassis Mount | - |
|
|
ZX60-06183LN+IC RF AMP RADAR 6GHZ-18GHZ SMA |
14 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | 6GHz ~ 18GHz | 12dBm | 25.2dB | 2dB | Radar | 4.9V ~ 7V | 64mA | 8GHz ~ 12GHz | - | - | Chassis Mount | - |
|
|
ZX60-06203ALN+LNA, 6000 - 20000 MHZ, 50 OHM |
24 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | 6GHz ~ 20GHz | 15dBm | 21dB | 2.2dB | Radar | 4.9V ~ 6V | 110mA | 6GHz ~ 20GHz | - | - | Chassis Mount | - |
|
HMC659LC5IC RF AMP GPS 0HZ-15GHZ 32CSMT |
4 |
|
Datasheet |
- | 32-TFCQFN Exposed Pad | Strip | Active | 0Hz ~ 15GHz | 27.5dBm | 19dB | 2.5dB | General Purpose | 8V | 300mA | - | - | - | Surface Mount | 32-CSMT (5x5) |
|
|
ZX60-24-S+GBLK, 5000 - 20000 MHZ |
8 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | 5GHz ~ 20GHz | 18.5dBm | 24.3dB | 8.2dB | DBS, Radar | 5V | 260mA | 10GHz | - | - | Chassis Mount | - |
|
|
ZX60-02203LPN+COAXIAL AMP, 2000 - 20000 MHZ |
11 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | 2GHz ~ 20GHz | 19dBm | 16.5dB | 8dB | Radar | 4.9V ~ 7V | 79mA | 2GHz ~ 10GHz | - | - | Chassis Mount | - |
|
|
SLNA-010-40-08-SMALOWNOISEAMP 10MHZ-1GHZ P1DB SMA |
7 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | 10MHz ~ 1GHz | 18dBm | 40dB | 0.8dB | Radar | 10V ~ 15V | 110mA | 10MHz ~ 1GHz | - | - | Chassis Mount | - |
|
|
ZHL-2-8-S+GAIN BLOCK, 10 - 1000 MHZ, 50 |
10 |
|
Datasheet |
- | Module | Bulk | Active | 10MHz ~ 1GHz | 29dBm | 39dB | 7dB | Cellular, UHF, VHF | 24V | 700mA | 10MHz ~ 1GHz | - | - | Chassis Mount | - |
|

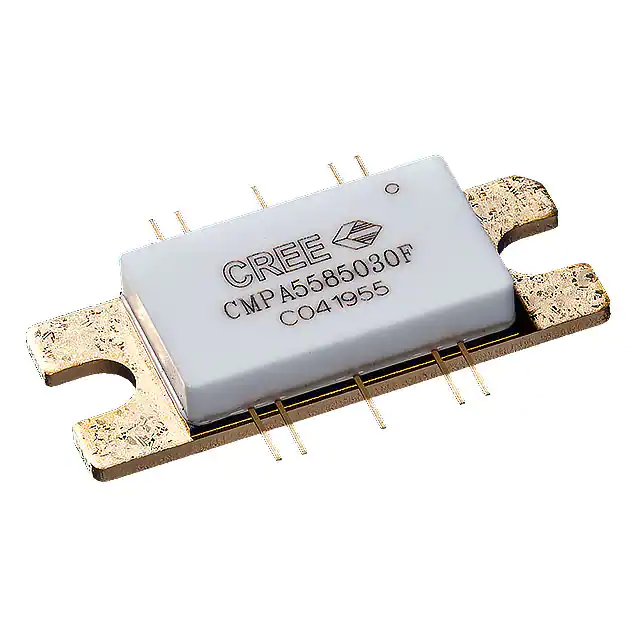

CMPA5585030FIC RF AMP 5.5GHZ-8.5GHZ 440213 |
18 |
|
Datasheet |
- | 440213 | Tray | Active | 5.5GHz ~ 8.5GHz | - | 26dB | - | - | 28V | - | - | - | - | Flange Mount | 440213 |
|
|
SPA-030-27-01-SMAPOWER AMP 20MHZ-3GHZ P1DB SMA |
3 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | 20MHz ~ 3GHz | 30dBm | 27dB | - | Radar | 11.5V ~ 13V | 220mA | 20MHz ~ 3GHz | - | - | Chassis Mount | - |
|
|
SLNA-060-40-09-SMALOWNOISEAMP 2000MHZ-6GHZ P1DB SM |
2 |
|
Datasheet |
- | Module, SMA Connectors | Bulk | Active | 2GHz ~ 6GHz | 14dBm | 43dB | 0.9dB | Radar | 8V ~ 15V | 110mA | 2GHz ~ 6GHz | - | - | Chassis Mount | - |
|
|
ZVA-183-S+GAIN BLOCK, 700-18000 MHZ, 50 |
7 |
|
Datasheet |
- | Module | Tray | Active | 700MHz ~ 18GHz | 24dBm | 26dB | 3dB | Radar | 12V | 400mA | 700MHz ~ 18GHz | - | - | Chassis Mount | - |
