RF Amplifiers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | P1dB | Gain | Noise Figure | RF Type | Voltage - Supply | Current - Supply | Test Frequency | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE152015 dBm P1dB, 2 GHz to 4 GHz, Gai |
7 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 2GHz ~ 4GHz | 15dBm | 25dB | - | General Purpose | 12V | 120mA | - | - | - | Chassis Mount | - |
|
|
PE152215 dBm P1dB, 4 GHz to 8 GHz, Gai |
14 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 4GHz ~ 8GHz | - | 26dB | 3dB | General Purpose | 12V | 100mA | - | - | - | Chassis Mount | - |
|
|
PE151915 dBm P1dB, 1 GHz to 4 GHz, Gai |
11 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 1GHz ~ 4GHz | 15dBm | 26dB | - | General Purpose | 12V | 120mA | - | - | - | Chassis Mount | - |
|
|
PE15A50057.9 Watt Psat, 1.5 GHz to 3.5 GH |
7 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 1.5GHz ~ 3.5GHz | 38.5dBm | 19.5dB | 10dB | GPS, Radar | - | - | - | - | - | Chassis Mount | Module |
|

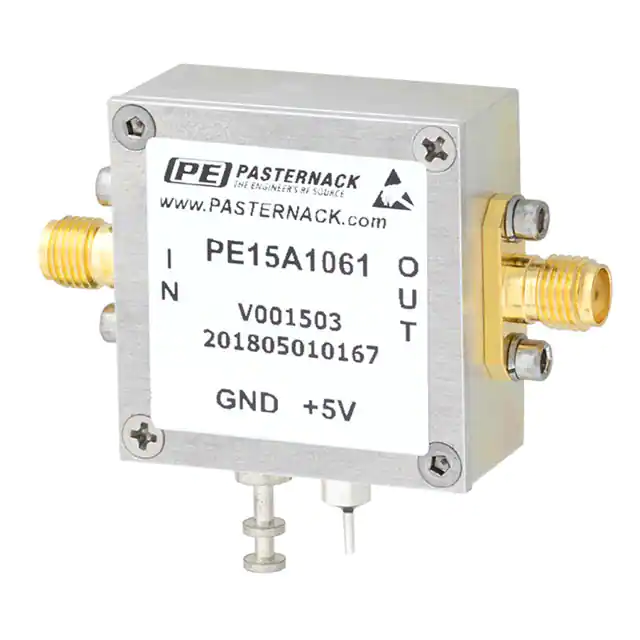

PE15A1061IC RF AMP GPS 20MHZ-4GHZ MODULE |
3 |
|
Datasheet |
- | Module, SMA Connectors | Bag | Active | 20MHz ~ 4GHz | 18dBm | 25dB | 2dB | General Purpose | 4.5V ~ 5.5V | 160mA | 20MHz ~ 4GHz | - | - | - | Module |
|
|
PE15A350647 dB Gain, 2 Watt P1dB, 6 GHz t |
11 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 6GHz ~ 12GHz | 33dBm | 17dB | 6dB | Radar | 11V ~ 15V | 2.5A | - | - | - | Chassis Mount | Module |
|
|
PE15A10812.1 dB NF Low Noise Amplifier, O |
5 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 10MHz ~ 6GHz | 20dBm | 18dB | 2.1dB | General Purpose | 6V ~ 15V | 100mA | - | - | - | Chassis Mount | - |
|
|
PE15A10831.4 dB NF Low Noise Amplifier, O |
2 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 10MHz ~ 1GHz | 29dBm | 30dB | 1.4dB | General Purpose | 11.5V ~ 12.5V | 380mA | 500MHz | - | - | Chassis Mount | - |
|
|
PE15A50067.1 Watt Psat, 2.5 GHz to 4 GHz, |
2 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 2.5GHz ~ 4GHz | 38dBm | 19dB | 8dB | Radar | - | - | - | - | - | Chassis Mount | Module |
|
|
PE15A40761.5 Watt P1dB, 3.2 GHz to 4 GHz, |
2 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 3.2GHz ~ 4GHz | 32dBm | 35dB | 6dB | SATCOM | 6V | 1.3A | - | - | - | Chassis Mount | - |
|
|
PE15A32752.9 dB NF, 11 dBm P1dB, 29 GHz t |
4 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 29GHz ~ 36GHz | 11dBm | 20dB | 2.9dB | Radar, VSAT | 3V | 80mA | 29GHz ~ 36GHz | - | - | Chassis Mount | - |
|
|
PE15A402824 dBm P1dB, 17 GHz to 24 GHz, M |
3 |
|
Datasheet |
- | Module | Retail Package | Active | 17GHz ~ 24GHz | 24dBm | 24dB | 4.5dB | Radar, VSAT | -5V, 12V | 250mA | 20GHz ~ 24GHz | - | - | Chassis Mount | - |
|
|
PE15A403026 dBm P1dB, 2 GHz to 20 GHz, Me |
3 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 2GHz ~ 20GHz | 26dBm | 13dB | 3.5dB | Radar, VSAT | -10V, 15V | 400mA | 2GHz ~ 6GHz | - | - | Chassis Mount | Module |
|
|
PE15A50086.3 Watt Psat, 3.5 GHz to 7 GHz, |
2 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 3.5GHz ~ 7GHz | 37dBm | 19dB | 12dB | Radar | - | - | - | - | - | Chassis Mount | Module |
|
|
PE15A800550 dB Gain, 15 dBm P1dB, 500 MHz |
5 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 500MHz ~ 2GHz | 15dBm | 50dB | - | General Purpose | 11V ~ 13V | 180mA | - | - | - | Chassis Mount | Module |
|
|
PE15A300825 dBm P1dB, 500 MHz to 18 GHz, |
6 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 500MHz ~ 18GHz | 25dBm | 30.5dB | 2.5dB | Radar | 12V | 330mA | - | - | - | Chassis Mount | Module |
|
|
PE15A40771 Watt P3dB, 5 GHz to 6 GHz, Med |
2 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 5GHz ~ 6GHz | - | 31dB | 7dB | SATCOM | 9V ~ 15V | 920mA | - | - | - | Chassis Mount | - |
|
|
PE15A503942 dB Gain, 25 Watt P1dB, 860 MH |
6 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 860MHz ~ 960MHz | 44dBm | 45dB | 3.5dB | General Purpose | 11.5V ~ 13V | 6.5A | - | - | - | Chassis Mount | - |
|
|
PE15A50341.5 Watt Psat, 800 MHz to 4.2 GH |
4 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 800MHz ~ 4.2GHz | 30.8dBm | 31dB | - | General Purpose | 13V | 800mA | - | - | - | Chassis Mount | - |
|
|
PE15A301546 dB Gain, 24 dBm P1dB, 500 MHz |
3 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 500MHz ~ 2GHz | 24dBm | 46dB | 2.7dB | General Purpose | 11V ~ 15V | 300mA | - | - | - | Chassis Mount | Module |
RF Amplifiers Electronic Components
Explore RF Amplifiers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
