Resistor Networks, Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Circuit Type | Resistance (Ohms) | Tolerance | Number of Resistors | Resistor Matching Ratio | Resistor-Ratio-Drift | Number of Pins | Power Per Element | Temperature Coefficient | Operating Temperature | Grade | Qualification | Applications | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

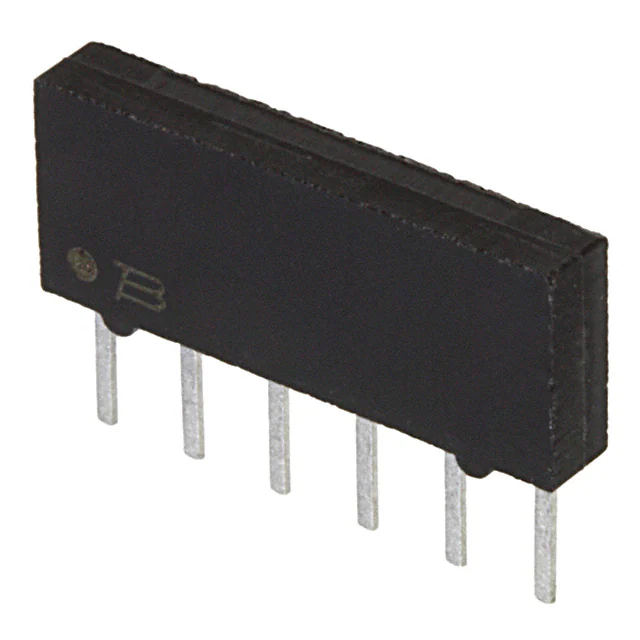

4306M-102-101LFRES ARRAY 3 RES 100 OHM 6SIP |
0 |
|
Datasheet |
4300M | 6-SIP | Bulk | Active | Isolated | 100 | ±2% | 3 | - | 50ppm/°C | 6 | 400mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 6-SIP | 0.584" L x 0.085" W (14.83mm x 2.16mm) | 0.250" (6.35mm) |
|
|
4306M-102-102LFRES ARRAY 3 RES 1K OHM 6SIP |
0 |
|
Datasheet |
4300M | 6-SIP | Bulk | Active | Isolated | 1k | ±2% | 3 | - | 50ppm/°C | 6 | 400mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 6-SIP | 0.584" L x 0.085" W (14.83mm x 2.16mm) | 0.250" (6.35mm) |
|
4308R-102-223RES ARRAY 4 RES 22K OHM 8SIP |
0 |
|
Datasheet |
4300R | 8-SIP | Bulk | Active | Isolated | 22k | ±2% | 4 | - | 50ppm/°C | 8 | 300mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 8-SIP | 0.784" L x 0.085" W (19.91mm x 2.16mm) | 0.195" (4.95mm) |
|
4420P-2-472LFRES ARRAY 19 RES 4.7K OHM 20SOIC |
0 |
|
Datasheet |
4400P | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Bussed | 4.7k | ±2% | 19 | - | 50ppm/°C | 20 | 160mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 20-SOL | 0.510" L x 0.295" W (12.95mm x 7.50mm) | 0.114" (2.90mm) |
|
4310R-102-220RES ARRAY 5 RES 22 OHM 10SIP |
0 |
|
Datasheet |
4300R | 10-SIP | Bulk | Active | Isolated | 22 | ±1Ohm | 5 | - | 50ppm/°C | 10 | 300mW | ±250ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 10-SIP | 0.984" L x 0.085" W (24.99mm x 2.16mm) | 0.195" (4.95mm) |
|
|
4310R-101-105RES ARRAY 9 RES 1M OHM 10SIP |
0 |
|
Datasheet |
4300R | 10-SIP | Bulk | Active | Bussed | 1M | ±2% | 9 | - | 50ppm/°C | 10 | 200mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 10-SIP | 0.984" L x 0.085" W (24.99mm x 2.16mm) | 0.195" (4.95mm) |
|
|
4310R-101-332RES ARRAY 9 RES 3.3K OHM 10SIP |
0 |
|
Datasheet |
4300R | 10-SIP | Bulk | Active | Bussed | 3.3k | ±2% | 9 | - | 50ppm/°C | 10 | 200mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 10-SIP | 0.984" L x 0.085" W (24.99mm x 2.16mm) | 0.195" (4.95mm) |
|
4116R-1-203RES ARRAY 8 RES 20K OHM 16DIP |
0 |
|
Datasheet |
4100R | 16-DIP (0.300", 7.62mm) | Bulk | Active | Isolated | 20k | ±2% | 8 | - | 50ppm/°C | 16 | 250mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 16-DIP | 0.865" L x 0.300" W (21.97mm x 7.62mm) | 0.185" (4.69mm) |
|
4310M-101-331LFRES ARRAY 9 RES 330 OHM 10SIP |
0 |
|
Datasheet |
4300M | 10-SIP | Bulk | Active | Bussed | 330 | ±2% | 9 | - | 50ppm/°C | 10 | 250mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 10-SIP | 0.984" L x 0.085" W (24.99mm x 2.16mm) | 0.250" (6.35mm) |
|
|
4116R-R2R-104LFRES NTWRK 16 RES MULT OHM 16DIP |
0 |
|
Datasheet |
4100R | 16-DIP (0.300", 7.62mm) | Bulk | Active | R2R Ladder | 100k, 200k | ±2% | 16 | - | 50ppm/°C | 16 | 125mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 16-DIP | 0.865" L x 0.300" W (21.97mm x 7.62mm) | 0.185" (4.69mm) |
|
4308M-102-104LFRES ARRAY 4 RES 100K OHM 8SIP |
0 |
|
Datasheet |
4300M | 8-SIP | Bulk | Active | Isolated | 100k | ±2% | 4 | - | 50ppm/°C | 8 | 400mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 8-SIP | 0.784" L x 0.085" W (19.91mm x 2.16mm) | 0.250" (6.35mm) |
|
4308H-102-121RES ARRAY 4 RES 120 OHM 8SIP |
0 |
|
Datasheet |
4300H | 8-SIP | Bulk | Active | Isolated | 120 | ±2% | 4 | - | 50ppm/°C | 8 | 500mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 8-SIP | 0.784" L x 0.085" W (19.91mm x 2.16mm) | 0.350" (8.89mm) |
|
|
4310R-102-184LFRES ARRAY 5 RES 180K OHM 10SIP |
0 |
|
Datasheet |
4300R | 10-SIP | Bulk | Active | Isolated | 180k | ±2% | 5 | - | 50ppm/°C | 10 | 300mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 10-SIP | 0.984" L x 0.085" W (24.99mm x 2.16mm) | 0.195" (4.95mm) |
|
|
4310R-101-390LFRES ARRAY 9 RES 39 OHM 10SIP |
0 |
|
Datasheet |
4300R | 10-SIP | Bulk | Active | Bussed | 39 | ±1Ohm | 9 | - | 50ppm/°C | 10 | 200mW | ±250ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 10-SIP | 0.984" L x 0.085" W (24.99mm x 2.16mm) | 0.195" (4.95mm) |
|
|
4310R-102-683LFRES ARRAY 5 RES 68K OHM 10SIP |
0 |
|
Datasheet |
4300R | 10-SIP | Bulk | Active | Isolated | 68k | ±2% | 5 | - | 50ppm/°C | 10 | 300mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 10-SIP | 0.984" L x 0.085" W (24.99mm x 2.16mm) | 0.195" (4.95mm) |
|
|
4310R-102-273LFRES ARRAY 5 RES 27K OHM 10SIP |
0 |
|
Datasheet |
4300R | 10-SIP | Bulk | Active | Isolated | 27k | ±2% | 5 | - | 50ppm/°C | 10 | 300mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 10-SIP | 0.984" L x 0.085" W (24.99mm x 2.16mm) | 0.195" (4.95mm) |
|
4310H-102-104LFRES ARRAY 5 RES 100K OHM 10SIP |
0 |
|
Datasheet |
4300H | 10-SIP | Tube | Active | Isolated | 100k | ±2% | 5 | - | 50ppm/°C | 10 | 500mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 10-SIP | 0.984" L x 0.085" W (24.99mm x 2.16mm) | 0.350" (8.89mm) |
|
|
CDMM30M0F5000FETCDMM, 30M, 1%, 500:1, RATIO TOL. |
250 |
|
Datasheet |
CDMM | 4527 J-Lead | Tape & Reel (TR) | Active | Voltage Divider | 30M | ±1% | 2 | ±1% | 0/ -50 ppm/°C | 3 | 1.5W | ±150ppm/°C | -55°C ~ 155°C | Automotive | AEC-Q200 | Voltage Divider (TCR Matched) | Surface Mount | 4527 | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.177" (4.49mm) |
|
|
CDMM21M0F2100FETCDMM, 21M, 1%, 210:1, RATIO TOL. |
241 |
|
Datasheet |
CDMM | 4527 J-Lead | Tape & Reel (TR) | Active | Voltage Divider | 21M | ±1% | 2 | ±1% | 0/ -50 ppm/°C | 3 | 1.5W | ±150ppm/°C | -55°C ~ 155°C | Automotive | AEC-Q200 | Voltage Divider (TCR Matched) | Surface Mount | 4527 | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.177" (4.49mm) |
|
|
CDMM1M50F2500FETCDMM,1M50, 1%, 250:1, RATIO TOL. |
224 |
|
Datasheet |
CDMM | 4527 J-Lead | Tape & Reel (TR) | Active | Voltage Divider | 1.5M | ±1% | 2 | ±1% | ±10 ppm/°C | 3 | 1.5W | ±100ppm/°C | -55°C ~ 155°C | Automotive | AEC-Q200 | Voltage Divider (TCR Matched) | Surface Mount | 4527 | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.177" (4.49mm) |
