Resistor Networks, Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Circuit Type | Resistance (Ohms) | Tolerance | Number of Resistors | Resistor Matching Ratio | Resistor-Ratio-Drift | Number of Pins | Power Per Element | Temperature Coefficient | Operating Temperature | Grade | Qualification | Applications | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

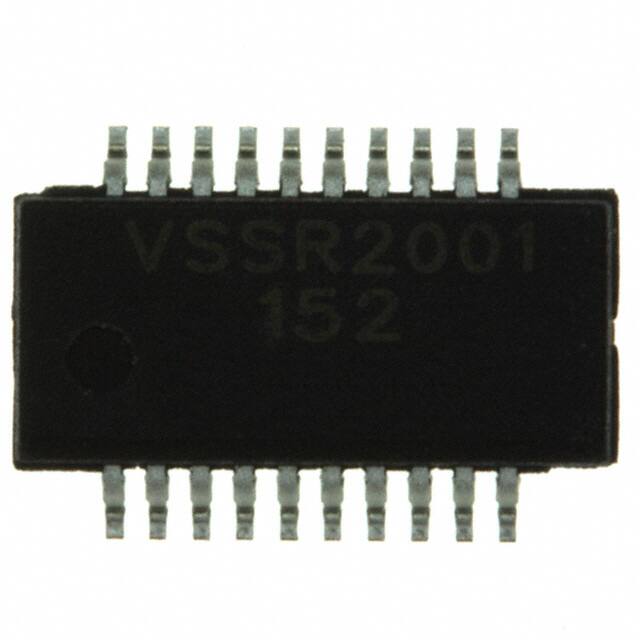

VSSR2001152GUFRES ARRAY 19 RES 1.5K OHM 20SSOP |
0 |
|
Datasheet |
VSSR | 20-SSOP (0.154", 3.90mm Width) | Tube | Active | Bussed | 1.5k | ±2% | 19 | - | - | 20 | 100mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 20-SSOP | 0.341" L x 0.154" W (8.66mm x 3.91mm) | 0.069" (1.76mm) |
|
VSSR2001472GUFRES ARRAY 19 RES 4.7K OHM 20SSOP |
0 |
|
Datasheet |
VSSR | 20-SSOP (0.154", 3.90mm Width) | Tube | Active | Bussed | 4.7k | ±2% | 19 | - | - | 20 | 100mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 20-SSOP | 0.341" L x 0.154" W (8.66mm x 3.91mm) | 0.069" (1.76mm) |
|
4310R-R2R-102LFRES NTWRK 16 RES MULT OHM 10SIP |
0 |
|
Datasheet |
4300R | 10-SIP | Tube | Active | R2R Ladder | 1k, 2k | ±2% | 16 | - | 50ppm/°C | 10 | 125mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 10-SIP | 0.984" L x 0.085" W (24.99mm x 2.16mm) | 0.195" (4.95mm) |
|
MPMT2001DT1RES NETWORK 2 RES 1K, 1K OHM |
0 |
|
Datasheet |
MPM | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Voltage Divider | 1k, 1k | ±0.5% | 2 | ±0.1% | ±2ppm/°C | 3 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | Voltage Divider (TCR Matched) | Surface Mount | SOT-23 | 0.113" L x 0.051" W (2.86mm x 1.30mm) | 0.044" (1.12mm) |
|
|
MPMT4001DT1RES NETWORK 2 RES 2K, 2K OHM |
0 |
|
Datasheet |
MPM | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Voltage Divider | 2k, 2k | ±0.5% | 2 | ±0.1% | ±2ppm/°C | 3 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | Voltage Divider (TCR Matched) | Surface Mount | SOT-23 | 0.113" L x 0.051" W (2.86mm x 1.30mm) | 0.044" (1.12mm) |
|
|
MPMT5001DT1RES NTWRK 2 RES 2.5K, 2.5K OHM |
0 |
|
Datasheet |
MPM | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Voltage Divider | 2.5k, 2.5k | ±0.5% | 2 | ±0.1% | ±2ppm/°C | 3 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | Voltage Divider (TCR Matched) | Surface Mount | SOT-23 | 0.113" L x 0.051" W (2.86mm x 1.30mm) | 0.044" (1.12mm) |
|
|
MPMT1002DT1RES NETWORK 2 RES 5K, 5K OHM |
0 |
|
Datasheet |
MPM | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Voltage Divider | 5k, 5k | ±0.5% | 2 | ±0.1% | ±2ppm/°C | 3 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | Voltage Divider (TCR Matched) | Surface Mount | SOT-23 | 0.113" L x 0.051" W (2.86mm x 1.30mm) | 0.044" (1.12mm) |
|
|
MPMT2002DT1RES NTWRK 2 RES 10K, 10K OHM |
0 |
|
Datasheet |
MPM | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Voltage Divider | 10k, 10k | ±0.5% | 2 | ±0.1% | ±2ppm/°C | 3 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | Voltage Divider (TCR Matched) | Surface Mount | SOT-23 | 0.113" L x 0.051" W (2.86mm x 1.30mm) | 0.044" (1.12mm) |
|
|
MPMT1003DT1RES NTWRK 2 RES 50K, 50K OHM |
0 |
|
Datasheet |
MPM | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Voltage Divider | 50k, 50k | ±0.5% | 2 | ±0.1% | ±2ppm/°C | 3 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | Voltage Divider (TCR Matched) | Surface Mount | SOT-23 | 0.113" L x 0.051" W (2.86mm x 1.30mm) | 0.044" (1.12mm) |
|
4308R-R2R-503LFRES NETWORK 12 RES MULT OHM 8SIP |
0 |
|
Datasheet |
4300R | 8-SIP | Tube | Active | R2R Ladder | 50k, 100k | ±2% | 12 | - | 50ppm/°C | 8 | 125mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 8-SIP | 0.784" L x 0.085" W (19.91mm x 2.16mm) | 0.195" (4.95mm) |
|
4308R-R2R-103LFRES NETWORK 12 RES MULT OHM 8SIP |
0 |
|
Datasheet |
4300R | 8-SIP | Tube | Active | R2R Ladder | 10k, 20k | ±2% | 12 | - | 50ppm/°C | 8 | 125mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 8-SIP | 0.784" L x 0.085" W (19.91mm x 2.16mm) | 0.195" (4.95mm) |
|
ORNTA1002CT1RES ARRAY 4 RES 10K OHM 8SOIC |
0 |
|
Datasheet |
ORN | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | 10k | ±0.25% | 4 | ±0.1% | ±5ppm/°C | 8 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 8-SOIC | 0.194" L x 0.157" W (4.93mm x 3.99mm) | 0.068" (1.73mm) |
|
|
ORNTA5001CT1RES ARRAY 4 RES 5K OHM 8SOIC |
0 |
|
Datasheet |
ORN | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | 5k | ±0.25% | 4 | ±0.1% | ±5ppm/°C | 8 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 8-SOIC | 0.194" L x 0.157" W (4.93mm x 3.99mm) | 0.068" (1.73mm) |
|
DFNA5000FT1RES ARRAY 4 RES 500 OHM 8VDFN |
0 |
|
Datasheet |
DFN | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Isolated | 500 | ±1% | 4 | ±0.025% | ±3ppm/°C | 8 | 50mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 8-DFN (4x4) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.037" (0.95mm) |
|
|
DFNA1001FT1RES ARRAY 4 RES 1K OHM 8VDFN |
0 |
|
Datasheet |
DFN | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Isolated | 1k | ±1% | 4 | ±0.025% | ±3ppm/°C | 8 | 50mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 8-DFN (4x4) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.037" (0.95mm) |
|
|
DFNA2001FT1RES ARRAY 4 RES 2K OHM 8VDFN |
0 |
|
Datasheet |
DFN | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Isolated | 2k | ±1% | 4 | ±0.025% | ±3ppm/°C | 8 | 50mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 8-DFN (4x4) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.037" (0.95mm) |
|
|
DFNA4991FT1RES ARRAY 4 RES 4.99K OHM 8VDFN |
0 |
|
Datasheet |
DFN | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Isolated | 4.99k | ±1% | 4 | ±0.025% | ±3ppm/°C | 8 | 50mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 8-DFN (4x4) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.037" (0.95mm) |
|
|
DFNA5001FT1RES ARRAY 4 RES 5K OHM 8VDFN |
0 |
|
Datasheet |
DFN | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Isolated | 5k | ±1% | 4 | ±0.025% | ±3ppm/°C | 8 | 50mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 8-DFN (4x4) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.037" (0.95mm) |
|
|
DFNA1002FT1RES ARRAY 4 RES 10K OHM 8VDFN |
0 |
|
Datasheet |
DFN | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Isolated | 10k | ±1% | 4 | ±0.025% | ±3ppm/°C | 8 | 50mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 8-DFN (4x4) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.037" (0.95mm) |
|
|
DFNA2002FT1RES ARRAY 4 RES 20K OHM 8VDFN |
0 |
|
Datasheet |
DFN | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Isolated | 20k | ±1% | 4 | ±0.025% | ±3ppm/°C | 8 | 50mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 8-DFN (4x4) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.037" (0.95mm) |
