Resistor Networks, Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Circuit Type | Resistance (Ohms) | Tolerance | Number of Resistors | Resistor Matching Ratio | Resistor-Ratio-Drift | Number of Pins | Power Per Element | Temperature Coefficient | Operating Temperature | Grade | Qualification | Applications | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4816P-T01-105LFRES ARRAY 8 RES 1M OHM 16SOIC |
592 |
|
Datasheet |
4800P | 16-SOIC (0.220", 5.59mm Width) | Tube | Active | Isolated | 1M | ±2% | 8 | - | - | 16 | 160mW | ±100ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 16-SOM | 0.440" L x 0.220" W (11.18mm x 5.59mm) | 0.094" (2.40mm) |
|
|
4816P-T01-121LFRES ARRAY 8 RES 120 OHM 16SOIC |
198 |
|
Datasheet |
4800P | 16-SOIC (0.220", 5.59mm Width) | Tube | Active | Isolated | 120 | ±2% | 8 | - | - | 16 | 160mW | ±100ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 16-SOM | 0.440" L x 0.220" W (11.18mm x 5.59mm) | 0.094" (2.40mm) |
|
4306R-101-202RES ARRAY 5 RES 2K OHM 6SIP |
1,881 |
|
Datasheet |
4300R | 6-SIP | Tube | Active | Bussed | 2k | ±2% | 5 | - | 50ppm/°C | 6 | 200mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 6-SIP | 0.584" L x 0.085" W (14.83mm x 2.16mm) | 0.195" (4.95mm) |
|
|
4306R-101-102RES ARRAY 5 RES 1K OHM 6SIP |
1,823 |
|
Datasheet |
4300R | 6-SIP | Tube | Active | Bussed | 1k | ±2% | 5 | - | 50ppm/°C | 6 | 200mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 6-SIP | 0.584" L x 0.085" W (14.83mm x 2.16mm) | 0.195" (4.95mm) |
|
|
4306R-102-221LFRES ARRAY 3 RES 220 OHM 6SIP |
1,190 |
|
Datasheet |
4300R | 6-SIP | Tube | Active | Isolated | 220 | ±2% | 3 | - | 50ppm/°C | 6 | 300mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 6-SIP | 0.584" L x 0.085" W (14.83mm x 2.16mm) | 0.195" (4.95mm) |
|
|
4816P-T02-331LFRES ARRAY 15 RES 330 OHM 16SOIC |
819 |
|
Datasheet |
4800P | 16-SOIC (0.220", 5.59mm Width) | Tube | Active | Bussed | 330 | ±2% | 15 | - | - | 16 | 80mW | ±100ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 16-SOM | 0.440" L x 0.220" W (11.18mm x 5.59mm) | 0.094" (2.40mm) |
|
|
4306R-102-682LFRES ARRAY 3 RES 6.8K OHM 6SIP |
245 |
|
Datasheet |
4300R | 6-SIP | Tube | Active | Isolated | 6.8k | ±2% | 3 | - | 50ppm/°C | 6 | 300mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 6-SIP | 0.584" L x 0.085" W (14.83mm x 2.16mm) | 0.195" (4.95mm) |
|
4310R-R2R-104LFRES NTWRK 16 RES MULT OHM 10SIP |
1,892 |
|
Datasheet |
4300R | 10-SIP | Tube | Active | R2R Ladder | 100k, 200k | ±2% | 16 | - | 50ppm/°C | 10 | 125mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 10-SIP | 0.984" L x 0.085" W (24.99mm x 2.16mm) | 0.195" (4.95mm) |
|
4116R-1-823LFRES ARRAY 8 RES 82K OHM 16DIP |
1,886 |
|
Datasheet |
4100R | 16-DIP (0.300", 7.62mm) | Tube | Active | Isolated | 82k | ±2% | 8 | - | 50ppm/°C | 16 | 250mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 16-DIP | 0.865" L x 0.300" W (21.97mm x 7.62mm) | 0.185" (4.69mm) |
|
4308R-101-153LFRES ARRAY 7 RES 15K OHM 8SIP |
1,729 |
|
Datasheet |
4300R | 8-SIP | Tube | Active | Bussed | 15k | ±2% | 7 | - | 50ppm/°C | 8 | 200mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 8-SIP | 0.784" L x 0.085" W (19.91mm x 2.16mm) | 0.195" (4.95mm) |
|
4114R-1-333LFRES ARRAY 7 RES 33K OHM 14DIP |
3,772 |
|
Datasheet |
4100R | 14-DIP (0.300", 7.62mm) | Tube | Active | Isolated | 33k | ±2% | 7 | - | 50ppm/°C | 14 | 250mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 14-DIP | 0.765" L x 0.300" W (19.43mm x 7.62mm) | 0.185" (4.69mm) |
|
|
4114R-1-222LFRES ARRAY 7 RES 2.2K OHM 14DIP |
3,637 |
|
Datasheet |
4100R | 14-DIP (0.300", 7.62mm) | Tube | Active | Isolated | 2.2k | ±2% | 7 | - | 50ppm/°C | 14 | 250mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 14-DIP | 0.765" L x 0.300" W (19.43mm x 7.62mm) | 0.185" (4.69mm) |
|
4814P-T01-103LFRES ARRAY 7 RES 10K OHM 14SOIC |
1,850 |
|
Datasheet |
4800P | 14-SOIC (0.220", 5.59mm Width) | Tube | Active | Isolated | 10k | ±2% | 7 | - | - | 14 | 160mW | ±100ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 14-SOM | 0.390" L x 0.220" W (9.91mm x 5.59mm) | 0.094" (2.40mm) |
|
|
4814P-T01-101LFRES ARRAY 7 RES 100 OHM 14SOIC |
1,682 |
|
Datasheet |
4800P | 14-SOIC (0.220", 5.59mm Width) | Tube | Active | Isolated | 100 | ±2% | 7 | - | - | 14 | 160mW | ±100ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 14-SOM | 0.390" L x 0.220" W (9.91mm x 5.59mm) | 0.094" (2.40mm) |
|

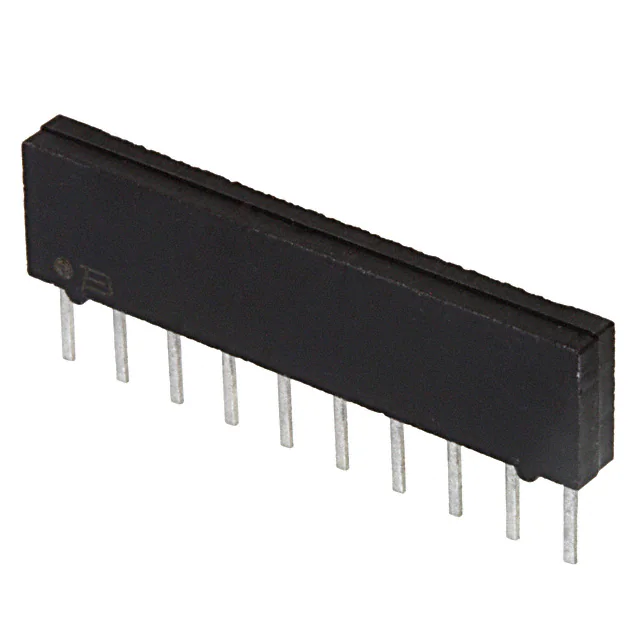

4310M-101-332LFRES ARRAY 9 RES 3.3K OHM 10SIP |
1,820 |
|
Datasheet |
4300M | 10-SIP | Tube | Active | Bussed | 3.3k | ±2% | 9 | - | 50ppm/°C | 10 | 250mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 10-SIP | 0.984" L x 0.085" W (24.99mm x 2.16mm) | 0.250" (6.35mm) |
|
|
4814P-T01-472LFRES ARRAY 7 RES 4.7K OHM 14SOIC |
350 |
|
Datasheet |
4800P | 14-SOIC (0.220", 5.59mm Width) | Tube | Active | Isolated | 4.7k | ±2% | 7 | - | - | 14 | 160mW | ±100ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 14-SOM | 0.390" L x 0.220" W (9.91mm x 5.59mm) | 0.094" (2.40mm) |
|
|
4816P-T01-333LFRES ARRAY 8 RES 33K OHM 16SOIC |
3,164 |
|
Datasheet |
4800P | 16-SOIC (0.220", 5.59mm Width) | Tube | Active | Isolated | 33k | ±2% | 8 | - | - | 16 | 160mW | ±100ppm/°C | -55°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 16-SOM | 0.440" L x 0.220" W (11.18mm x 5.59mm) | 0.094" (2.40mm) |
|
VSSR2401103JUFRES ARRAY 23 RES 10K OHM 24SSOP |
1,874 |
|
Datasheet |
VSSR | 24-SSOP (0.154", 3.90mm Width) | Tube | Active | Bussed | 10k | ±5% | 23 | - | - | 24 | 100mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 24-SSOP | 0.341" L x 0.154" W (8.66mm x 3.91mm) | 0.069" (1.76mm) |
|
|
4308R-101-562LFRES ARRAY 7 RES 5.6K OHM 8SIP |
6,429 |
|
Datasheet |
4300R | 8-SIP | Tube | Active | Bussed | 5.6k | ±2% | 7 | - | 50ppm/°C | 8 | 200mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 8-SIP | 0.784" L x 0.085" W (19.91mm x 2.16mm) | 0.195" (4.95mm) |
|
|
4114R-1-271LFRES ARRAY 7 RES 270 OHM 14DIP |
1,508 |
|
Datasheet |
4100R | 14-DIP (0.300", 7.62mm) | Tube | Active | Isolated | 270 | ±2% | 7 | - | 50ppm/°C | 14 | 250mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 14-DIP | 0.765" L x 0.300" W (19.43mm x 7.62mm) | 0.185" (4.69mm) |
