Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7302-12-1100RELAY REED DPST 500MA 12V |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 500VAC, 500VDC - Max | 18.8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7142-24-1100RELAY REED DPDT 250MA 24V |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 250 mA | 150VAC, 150VDC - Max | 15.5 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7302-24-1000RELAY REED DPST 500MA 24V |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 500VAC, 500VDC - Max | 9.8 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7104-12-1111RELAY REED 4PST 500MA 12V |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 4PST-NO (4 Form A) | 500 mA | 200VAC, 200VDC - Max | 21.8 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7142-24-1011RELAY REED DPDT 250MA 24V |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 250 mA | 150VAC, 150VDC - Max | 15.5 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7201-05-1000RELAY REED SPST 1A 5V |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 71.4 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
|
7201-12-1100RELAY REED SPST 1A 12V |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 26.7 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
|
7201-12-1010RELAY REED SPST 1A 12V |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 26.7 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
|
7203-12-1000RELAY REED 3PST 1A 12V |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 3PST-NO (3 Form A) | 1 A | 500VAC, 500VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
|
7204-12-1000RELAY REED 4PST 1A 12V |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 4PST-NO (4 Form A) | 1 A | 500VAC, 500VDC - Max | 48 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
|
7241-24-1001RELAY REED SPDT 1A 24V |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 500VAC, 500VDC - Max | 20 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2 VDC | 2 ms | 1.5 ms | -20°C ~ 85°C | - |
|
|
7241-05-1010RELAY REED SPDT 1A 5V |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 500VAC, 500VDC - Max | 100 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 1.5 ms | -20°C ~ 85°C | - |
|
|
7241-12-1011RELAY REED SPDT 1A 12V |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 500VAC, 500VDC - Max | 40 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 1.5 ms | -20°C ~ 85°C | - |
|

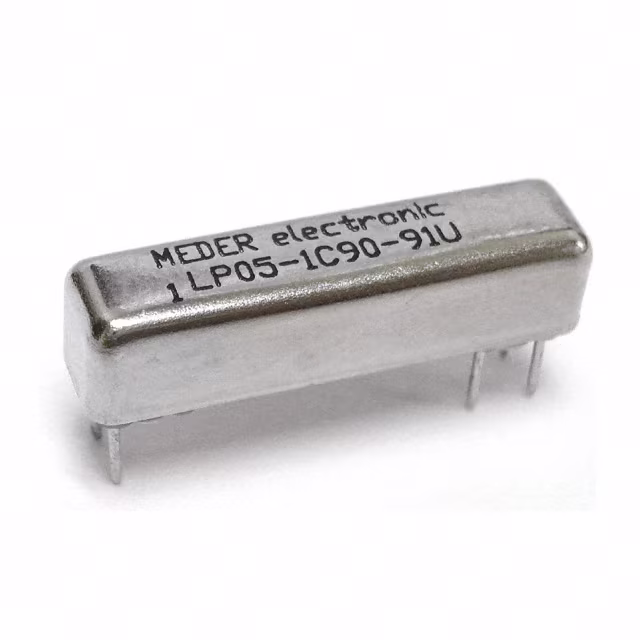

LP05-1A66-80VRELAY REED SPST 500MA 5V |
0 |
|
- |
LP | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 21.7 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C | - |
|
SIL05-BV50179RELAY REED |
0 |
|
- |
SIL | Tube | Active | Through Hole | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SIL05-1A85-76L3KRELAY REED SPST 1A 5V |
0 |
|
Datasheet |
SIL HV | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 22.8 mA | Non Latching | - | PC Pin | - | 3 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
SIL05-1A85-76L2KRELAY REED SPST 1A 5V |
0 |
|
Datasheet |
SIL HV | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 22.8 mA | Non Latching | - | PC Pin | - | 2 VDC | 0.4 VDC | 1.1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
SIL05-1A85-76D2KRELAY REED SPST 1A 5V |
0 |
|
Datasheet |
SIL HV | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 22.8 mA | Non Latching | Diode | PC Pin | - | 2 VDC | 0.4 VDC | 1.1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
HM12-1B83-03RELAY REED SPST 3A 12V |
0 |
|
Datasheet |
HM | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 7500VAC, 7500VDC - Max | 48 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|
|
2362-12-000RELAY REED DPDT 250MA 12V |
0 |
|
Datasheet |
2362 | Tube | Obsolete | Surface Mount | 12VDC | DPDT (2 Form C) | 250 mA | 100VAC, 100VDC - Max | 12 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | 9 VDC | 1 VDC | 1.5 ms | 2 ms | -20°C ~ 85°C | - |
Reed Relays Electronic Components
Explore Reed Relays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
