Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMEG2010EH,115DIODE SCHOTTKY 20V 1A SOD123F |
31,814 |
|
Datasheet |
- | SOD-123F | Tape & Reel (TR) | Active | Schottky | 20 V | 1A | 500 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 20 V | 80pF @ 1V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOD-123F | 150°C (Max) |
|
V2P6-M3/HDIODE SCHOTTKY 60V 2A MICROSMP |
30,640 |
|
Datasheet |
eSMP® | DO-219AD | Tape & Reel (TR) | Active | Schottky | 60 V | 2A | 630 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 60 V | 195pF @ 4V, 1MHz | - | - | Surface Mount | DO-219AD (MicroSMP) | -40°C ~ 150°C |
|

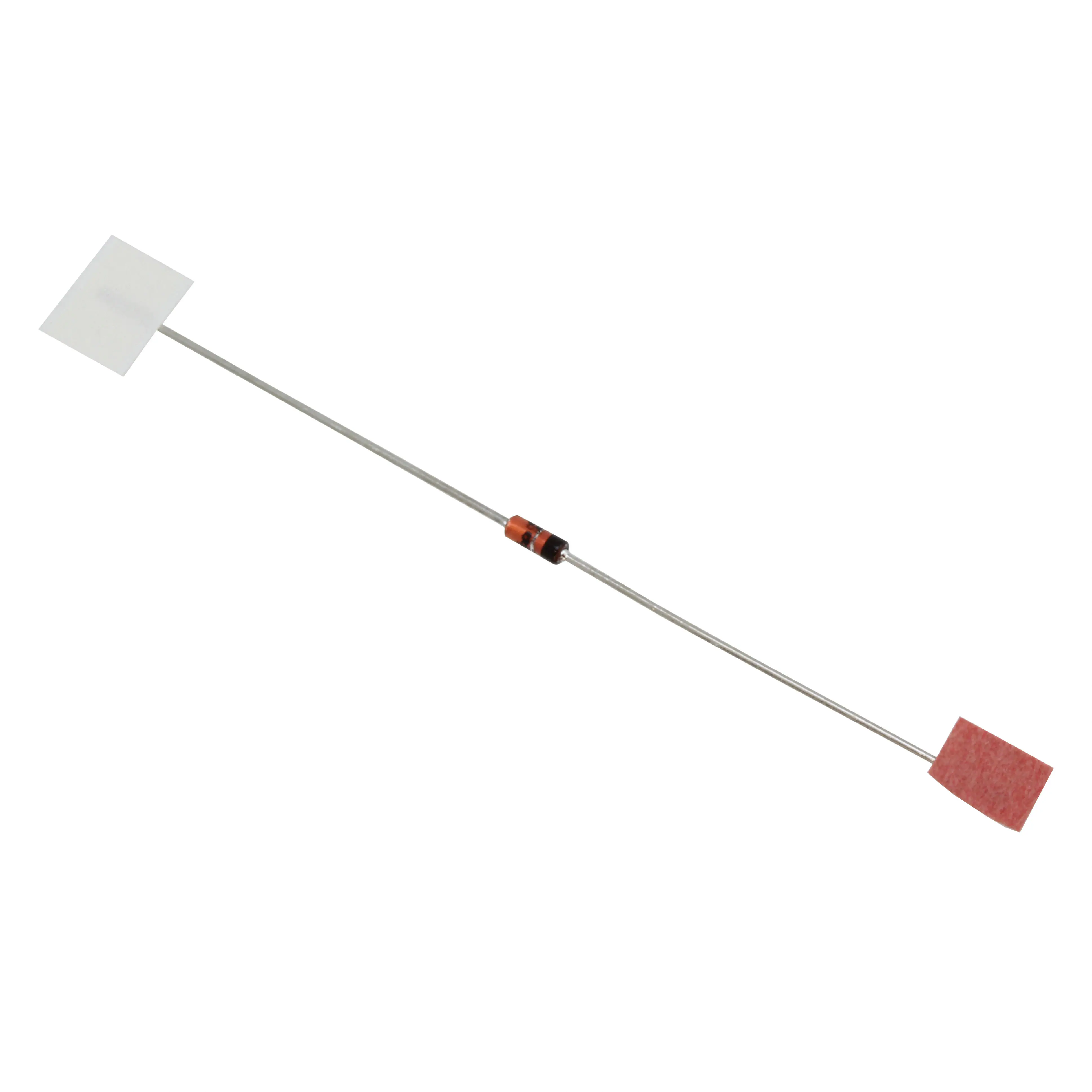

SD103B-TRDIODE SCHOTTKY 30V DO35 |
29,870 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Schottky | 30 V | - | 600 mV @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 5 µA @ 20 V | 50pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | 125°C (Max) |
|
B140-E3/5ATDIODE SCHOTTKY 40V 1A DO214AC |
28,491 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 520 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 40 V | - | - | - | Surface Mount | DO-214AC (SMA) | -65°C ~ 125°C |
|
PMEG6010CEGWXDIODE SCHOTTKY 60V 1A SOD123 |
28,149 |
|
Datasheet |
- | SOD-123 | Tape & Reel (TR) | Active | Schottky | 60 V | 1A | 660 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 60 V | 60pF @ 1V, 1MHz | - | - | Surface Mount | SOD-123 | 150°C (Max) |
|
NSR1020MW2T3GDIODE SCHOTTKY 20V 1A SOD323 |
24,635 |
|
Datasheet |
- | SC-76, SOD-323 | Tape & Reel (TR) | Active | Schottky | 20 V | 1A | 540 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 40 µA @ 15 V | 29pF @ 5V, 1MHz | - | - | Surface Mount | SOD-323 | 125°C (Max) |
|
CUS10F30,H3FDIODE SCHOTTKY 30V 1A USC |
24,454 |
|
- |
- | SC-76, SOD-323 | Tape & Reel (TR) | Active | Schottky | 30 V | 1A | 500 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 30 V | 170pF @ 0V, 1MHz | - | - | Surface Mount | USC | 125°C (Max) |
|
SB140DIODE SCHOTTKY 40V 1A DO41 |
22,948 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Cut Tape (CT) | Active | Schottky | 40 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 110pF @ 4V, 1MHz | - | - | Through Hole | DO-41 | -65°C ~ 125°C |
|
PMEG4005AESFYLDIODE SCHOTT 40V 500MA DSN0603-2 |
20,267 |
|
Datasheet |
- | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Schottky | 40 V | 500mA | 820 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | 1.25 ns | 80 µA @ 40 V | 18pF @ 1V, 1MHz | - | - | Surface Mount | DSN0603-2 | 150°C (Max) |
|
S2K-13-FDIODE GEN PURP 800V 1.5A SMB |
18,071 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Active | Standard | 800 V | 1.5A | 1.15 V @ 1.5 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 800 V | 20pF @ 4V, 1MHz | - | - | Surface Mount | SMB | -65°C ~ 150°C |
|
BAS40E6327HTSA1DIODE SCHOTTKY 40V 120MA SOT23 |
17,967 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Schottky | 40 V | 120mA | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | 100 ps | 1 µA @ 30 V | 5pF @ 0V, 1MHz | - | - | Surface Mount | PG-SOT23 | -55°C ~ 150°C |
|
RSX051VAM30TRDIODE SCHOTTKY 30V 500MA TUMD2M |
17,460 |
|
Datasheet |
- | 2-SMD, Flat Leads | Tape & Reel (TR) | Active | Schottky | 30 V | 500mA | 390 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 30 V | - | - | - | Surface Mount | TUMD2M | 150°C (Max) |
|
1N5819WDIODE SCHOTTKY 40V 1A SOD123FL |
16,494 |
|
Datasheet |
- | SOD-123F | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 500 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 40 V | 110pF @ 4V, 1MHz | - | - | Surface Mount | SOD-123FL | -55°C ~ 150°C |
|
BAS321JFDIODE GEN PURP 250V 250MA SOD323 |
16,480 |
|
Datasheet |
- | SC-76, SOD-323 | Tape & Reel (TR) | Active | Standard | 250 V | 250mA | 1.25 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 200 V | 2pF @ 0V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOD-323 | 150°C (Max) |
|
BY133DIODE GEN PURP 1.3KV 1A DO41 |
14,275 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Cut Tape (CT) | Active | Standard | 1300 V | 1A | 1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | 15pF @ 4V, 1MHz | - | - | Through Hole | DO-41 | -65°C ~ 125°C |
|
RB530VM-30TE-17DIODE SCHOTTKY 30V 100MA UMD2 |
13,319 |
|
Datasheet |
- | SC-90, SOD-323F | Tape & Reel (TR) | Active | Schottky | 30 V | 100mA | 450 mV @ 10 mA | Small Signal =< 200mA (Io), Any Speed | - | 500 nA @ 10 V | - | - | - | Surface Mount | UMD2 | 150°C (Max) |
|
|
PMEG4010EPK,315DIODE SCHOTTKY 40V 1A DFN1608D-2 |
13,245 |
|
Datasheet |
- | 2-XDFN | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 600 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 3 ns | 4 µA @ 1 V | 60pF @ 1V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DFN1608D-2 | 150°C (Max) |
|
B0520LWQ-7-FDIODE SCHOTTKY 20V 500MA SOD123 |
12,678 |
|
Datasheet |
- | SOD-123 | Tape & Reel (TR) | Active | Schottky | 20 V | 500mA | 385 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 250 µA @ 20 V | 170pF @ 0V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOD-123 | -65°C ~ 125°C |
|
SS1F4HM3/HDIODE SCHOTTKY 40V 1A DO219AB |
12,637 |
|
Datasheet |
- | DO-219AB | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 520 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 40 V | 85pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-219AB (SMF) | 175°C (Max) |
|
|
1N4148W-HE3_A-08SWITCHING DIODE GENPURP SOD123 |
12,637 |
|
Datasheet |
- | SOD-123 | Tape & Reel (TR) | Active | Standard | 75 V | 250mA | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 100 µA @ 100 V | - | Automotive | AEC-Q101 | Surface Mount | SOD-123 | 150°C |
