Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SB1240-TPDIODE SCHOTTKY 3A DO-201AD |
8,097 |
|
- |
- | DO-201AD, Axial | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | Through Hole | DO-201AD | - |
|
|
SB1530-TPDIODE SCHOTTKY 15A DO201AD |
3,881 |
|
- |
- | DO-201AD, Axial | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | Through Hole | DO-201AD | - |
|
|
SB1230-TPDIODE SCHOTTKY 3A DO-201AD |
9,114 |
|
- |
- | DO-201AD, Axial | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | Through Hole | DO-201AD | - |
|
|
MURS540F-BPDIODE GEN PURP 400V 5A ITO220AC |
7,930 |
|
- |
- | TO-220-2 Isolated Tab | Tube | Obsolete | Standard | 400 V | 5A | 1.28 V @ 5 A | Fast Recovery =< 500ns, > 5A (Io) | 35 ns | 10 µA @ 400 V | - | - | - | Through Hole | ITO-220AC | -55°C ~ 150°C |
|
|
SB15100-TPDIODE 15A DO201AD |
2,307 |
|
- |
- | DO-201AD, Axial | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | Through Hole | DO-201AD | - |
|
|
SR104-TPDIODE SCHOTTKY 1A DO-41 |
9,744 |
|
- |
- | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | Through Hole | DO-41 | - |
|
|
R6000GP-TPDIODE GEN PURP 6KV 200MA DO15 |
7,799 |
|
- |
- | DO-204AC, DO-15, Axial | Tape & Reel (TR) | Obsolete | Standard | 6000 V | 200mA | 5 V @ 500 mA | Small Signal =< 200mA (Io), Any Speed | 1.2 µs | 5 µA @ 6000 V | - | - | - | Through Hole | DO-15 | -55°C ~ 150°C |
|
|
SB1550-TPDIODE 10A DO201AD |
7,764 |
|
- |
- | DO-201AD, Axial | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | Through Hole | DO-201AD | - |
|
|
R4000GP-TPDIODE GEN PURP 4KV 200MA DO41 |
5,425 |
|
- |
- | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Obsolete | Standard | 4000 V | 200mA | 3.5 V @ 500 mA | Small Signal =< 200mA (Io), Any Speed | 1.2 µs | 5 µA @ 4000 V | - | - | - | Through Hole | DO-41 | -55°C ~ 150°C |
|
|
S120UDIODE SCHOTTKY 200V 1A SMAF |
9,833 |
|
Datasheet |
- | DO-221AC, SMA Flat Leads | Tape & Reel (TR) | Active | Schottky | 200 V | 1A | 900 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 200 V | 28pF @ 4V, 1MHz | - | - | Surface Mount | SMAF | -55°C ~ 150°C |
|
|
MURB860DIODE GEN PURP 600V 8A D2PAK |
6,890 |
|
- |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Standard | 600 V | 8A | 2.2 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 5 µA @ 600 V | - | - | - | Surface Mount | D2PAK | -55°C ~ 150°C |
|

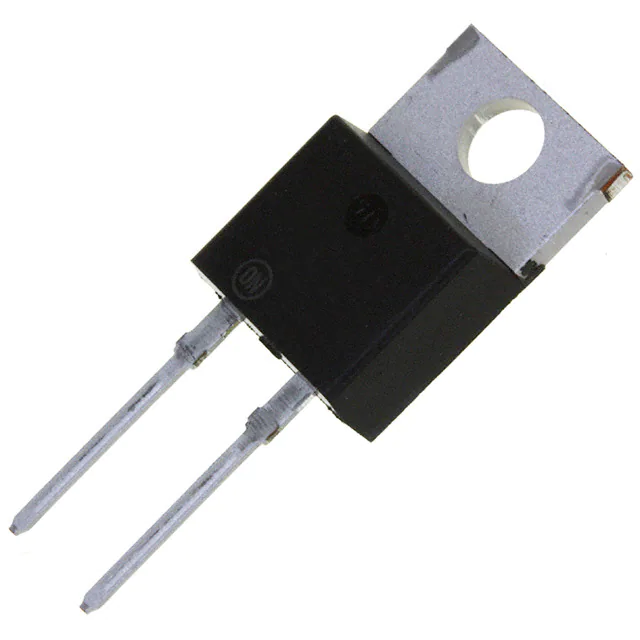

MUR1560DIODE GEN PURP 600V 15A TO220AC |
2,950 |
|
- |
- | TO-220-2 | Tube | Obsolete | Standard | 600 V | 15A | 1.7 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 25 µA @ 600 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 150°C |
|
|
S125UDIODE SCHOTTKY 250V 1A SMAF |
8,082 |
|
- |
- | DO-221AC, SMA Flat Leads | Tape & Reel (TR) | Obsolete | Schottky | 250 V | 1A | 920 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 250 V | 28pF @ 4V, 1MHz | - | - | Surface Mount | SMAF | -55°C ~ 150°C |
|
|
S125UDIODE SCHOTTKY 250V 1A SMAF |
5,559 |
|
- |
- | DO-221AC, SMA Flat Leads | Strip | Obsolete | Schottky | 250 V | 1A | 920 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 250 V | 28pF @ 4V, 1MHz | - | - | Surface Mount | SMAF | -55°C ~ 150°C |
|
|
MURF1560DIODE GEN PURP 600V 15A ITO220AC |
9,551 |
|
- |
- | TO-220-2 Full Pack, Isolated Tab | Tube | Obsolete | Standard | 600 V | 15A | 1.7 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 25 µA @ 600 V | - | - | - | Through Hole | ITO-220AC | -65°C ~ 150°C |
|
|
MURF1060DIODE GEN PURP 600V 10A ITO220AC |
5,078 |
|
- |
- | TO-220-2 Full Pack, Isolated Tab | Tube | Obsolete | Standard | 600 V | 10A | 2.2 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 5 µA @ 600 V | - | - | - | Through Hole | ITO-220AC | -55°C ~ 150°C |
|
MUR860DIODE GEN PURP 600V 8A TO220AC |
2,737 |
|
- |
- | TO-220-2 | Tube | Obsolete | Standard | 600 V | 8A | 2.2 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 5 µA @ 600 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 150°C |
|
DSS125UDIODE SCHOTTKY 250V 1A SOD123FL |
4,451 |
|
- |
- | SOD-123F | Strip | Obsolete | Schottky | 250 V | 1A | 920 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 250 V | 80pF @ 4V, 1MHz | - | - | Surface Mount | SOD-123FL | -55°C ~ 150°C |
|
|
1N3595 BKDIODE GEN PURP 150V 150MA DO35 |
4,043 |
|
- |
- | DO-204AH, DO-35, Axial | Bulk | Obsolete | Standard | 150 V | 150mA | 920 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 1 nA @ 125 V | 8pF @ 0V, 1MHz | - | - | Through Hole | DO-35 | -65°C ~ 200°C |
|
|
1N4153 TRDIODE GEN PURP 75V 150MA DO35 |
4,865 |
|
- |
- | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Obsolete | Standard | 75 V | 150mA | 880 mV @ 20 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 50 nA @ 75 V | 2pF @ 0V, 1MHz | - | - | Through Hole | DO-35 | -65°C ~ 200°C |
