Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

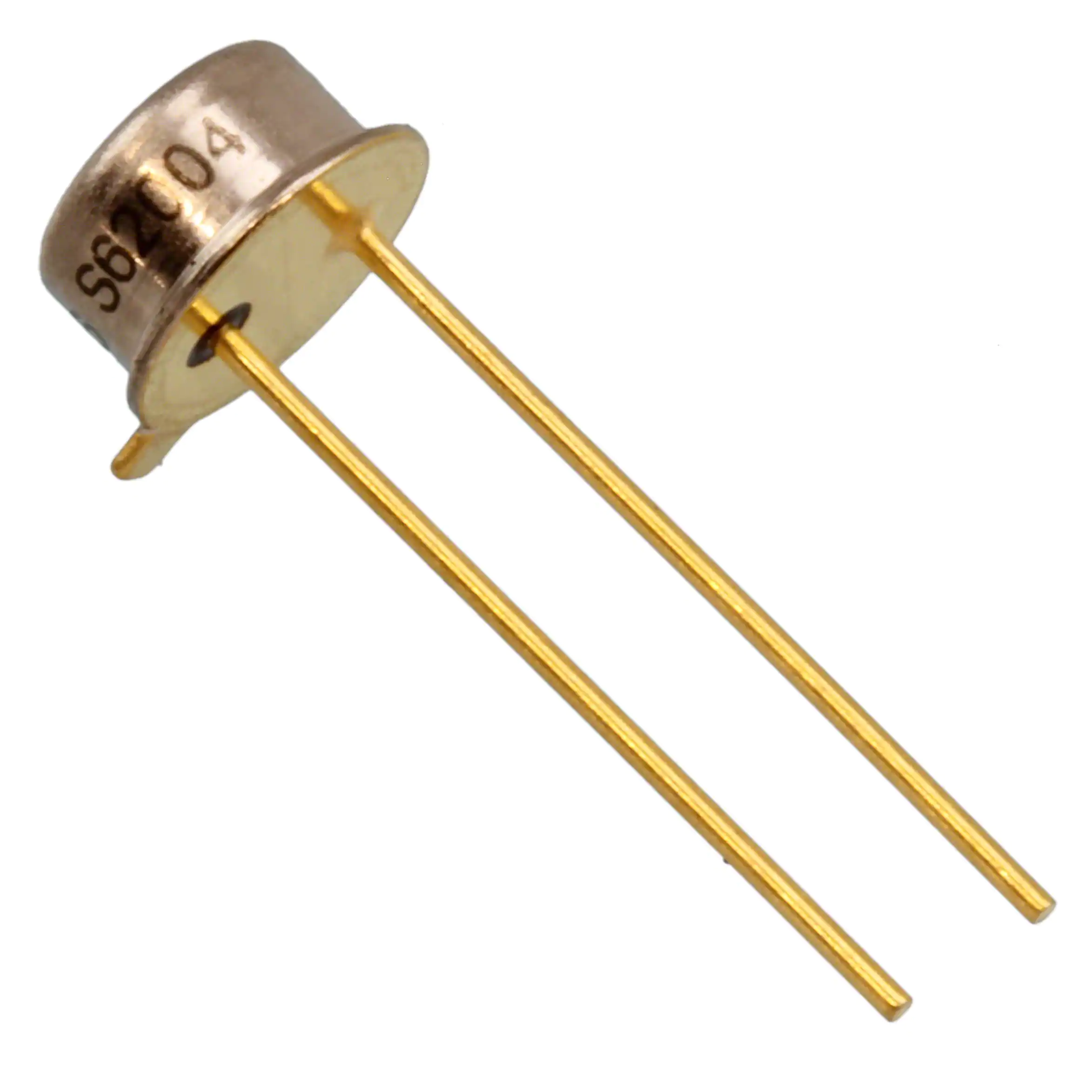

GB02SHT01-46DIODE SIL CARBIDE 100V 4A TO46 |
6,492 |
|
Datasheet |
- | TO-206AB, TO-46-3 Metal Can | Bulk | Obsolete | SiC (Silicon Carbide) Schottky | 100 V | 4A | 1.6 V @ 1 A | No Recovery Time > 500mA (Io) | 0 ns | 5 µA @ 100 V | 76pF @ 1V, 1MHz | - | - | Through Hole | TO-46 | -55°C ~ 210°C |
|
VS-1EFH01WHM3-18DIODE GEN PURP 100V 1A DO219AB |
3,717 |
|
Datasheet |
FRED Pt® | DO-219AB | Tape & Reel (TR) | Obsolete | Standard | 100 V | 1A | 930 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 16 ns | 2 µA @ 100 V | - | Automotive | AEC-Q101 | Surface Mount | DO-219AB (SMF) | -65°C ~ 175°C |
|
|
VS-1EFH01W-M3-18DIODE GEN PURP 100V 1A DO219AB |
5,109 |
|
Datasheet |
FRED Pt® | DO-219AB | Tape & Reel (TR) | Obsolete | Standard | 100 V | 1A | 930 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 16 ns | 2 µA @ 100 V | - | - | - | Surface Mount | DO-219AB (SMF) | -65°C ~ 175°C |
|
|
VS-1EFH02W-M3-18DIODE GEN PURP 200V 1A DO219AB |
4,394 |
|
Datasheet |
FRED Pt® | DO-219AB | Tape & Reel (TR) | Obsolete | Standard | 200 V | 1A | 930 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 16 ns | 2 µA @ 200 V | - | - | - | Surface Mount | DO-219AB (SMF) | -65°C ~ 175°C |
|
BYC8B-600PQPDIODE GEN PURP 600V 8A D2PAK |
4,645 |
|
- |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Standard | 600 V | 8A | 3.4 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 18 ns | 20 µA @ 600 V | - | - | - | Surface Mount | D2PAK | 175°C (Max) |
|
GP2D050A120BDIODE SIL CARB 1.2KV 50A TO247-2 |
8,045 |
|
Datasheet |
Amp+™ | TO-247-2 | Tube | Discontinued at Digi-Key | SiC (Silicon Carbide) Schottky | 1200 V | 50A | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | 3174pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
C2D05120E-TRDIODE SIL CARB 1.2KV 17.5A TO252 |
8,288 |
|
- |
Zero Recovery™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 17.5A | 1.8 V @ 5 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | 455pF @ 0V, 1MHz | - | - | Surface Mount | TO-252-2 | -55°C ~ 175°C |
|
GP2D003A065ADIODE SIL CARB 650V 3A TO220-2 |
7,306 |
|
Datasheet |
Amp+™ | TO-220-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 3A | 1.65 V @ 3 A | No Recovery Time > 500mA (Io) | 0 ns | 30 µA @ 650 V | 158pF @ 1V, 1MHz | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
|
GP2D005A120ADIODE SIL CARB 1.2KV 5A TO220-2 |
9,665 |
|
Datasheet |
Amp+™ | TO-220-2 | Tube | Discontinued at Digi-Key | SiC (Silicon Carbide) Schottky | 1200 V | 5A | 1.8 V @ 5 A | No Recovery Time > 500mA (Io) | 0 ns | 10 µA @ 1200 V | 317pF @ 1V, 1MHz | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
GP2D005A120CDIODE SIL CARB 1.2KV 5A TO252-2L |
8,410 |
|
Datasheet |
Amp+™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued at Digi-Key | SiC (Silicon Carbide) Schottky | 1200 V | 5A | 1.8 V @ 5 A | No Recovery Time > 500mA (Io) | 0 ns | 10 µA @ 1200 V | 317pF @ 1V, 1MHz | - | - | Surface Mount | TO-252-2L (DPAK) | -55°C ~ 175°C |
|
|
GP2D005A170BDIODE SIL CARB 1.7KV 5A TO247-2 |
3,053 |
|
Datasheet |
Amp+™ | TO-247-2 | Tube | Discontinued at Digi-Key | SiC (Silicon Carbide) Schottky | 1700 V | 5A | 1.75 V @ 5 A | No Recovery Time > 500mA (Io) | 0 ns | 10 µA @ 1700 V | 406pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
|
GP2D006A065ADIODE SIL CARB 650V 6A TO220-2 |
4,038 |
|
Datasheet |
Amp+™ | TO-220-2 | Tube | Discontinued at Digi-Key | SiC (Silicon Carbide) Schottky | 650 V | 6A | 1.65 V @ 6 A | No Recovery Time > 500mA (Io) | 0 ns | 60 µA @ 650 V | 316pF @ 1V, 1MHz | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
|
GP2D006A065CDIODE SIL CARB 650V 6A TO252-2L |
9,030 |
|
Datasheet |
Amp+™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued at Digi-Key | SiC (Silicon Carbide) Schottky | 650 V | 6A | 1.65 V @ 6 A | No Recovery Time > 500mA (Io) | 0 ns | 60 µA @ 650 V | 316pF @ 1V, 1MHz | - | - | Surface Mount | TO-252-2L (DPAK) | -55°C ~ 175°C |
|
|
GP2D010A120ADIODE SIL CARB 1.2KV 10A TO220-2 |
7,035 |
|
Datasheet |
Amp+™ | TO-220-2 | Tube | Discontinued at Digi-Key | SiC (Silicon Carbide) Schottky | 1200 V | 10A | 1.8 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 20 µA @ 1200 V | 635pF @ 1V, 1MHz | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
|
GP2D010A120BDIODE SIL CARB 1.2KV 10A TO247-2 |
6,089 |
|
Datasheet |
Amp+™ | TO-247-2 | Tube | Discontinued at Digi-Key | SiC (Silicon Carbide) Schottky | 1200 V | 10A | 1.8 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 20 µA @ 1200 V | 635pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
|
GP2D010A120CDIODE SIL CARB 1.2KV 10A TO252L |
7,338 |
|
Datasheet |
Amp+™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued at Digi-Key | SiC (Silicon Carbide) Schottky | 1200 V | 10A | 1.8 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 20 µA @ 1200 V | 635pF @ 1V, 1MHz | - | - | Surface Mount | TO-252 (DPAK) | -55°C ~ 175°C |
|
GP2D010A170BDIODE SIL CARB 1.7KV 10A TO247-2 |
8,424 |
|
- |
Amp+™ | TO-247-2 | Tube | Discontinued at Digi-Key | SiC (Silicon Carbide) Schottky | 1700 V | 10A | 1.75 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 20 µA @ 1700 V | 812pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
|
GP2D020A120BDIODE SIL CARB 1.2KV 20A TO247-2 |
2,108 |
|
Datasheet |
Amp+™ | TO-247-2 | Tube | Discontinued at Digi-Key | SiC (Silicon Carbide) Schottky | 1200 V | 20A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 40 µA @ 1200 V | 1270pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
|
GP2D020A170BDIODE SIL CARB 1.7KV 20A TO247-2 |
7,267 |
|
- |
Amp+™ | TO-247-2 | Tube | Discontinued at Digi-Key | SiC (Silicon Carbide) Schottky | 1700 V | 20A | 1.75 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 40 µA @ 1700 V | 1624pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
|
GP2D030A120BDIODE SIL CARB 1.2KV 30A TO247-2 |
4,014 |
|
Datasheet |
Amp+™ | TO-247-2 | Tube | Discontinued at Digi-Key | SiC (Silicon Carbide) Schottky | 1200 V | 30A | 1.8 V @ 30 A | No Recovery Time > 500mA (Io) | 0 ns | 60 µA @ 1200 V | 1905pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
