Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VI30100SHM3/4WDIODE SCHOTTKY 100V 30A TO262AA |
3,598 |
|
Datasheet |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | Schottky | 100 V | 30A | 910 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | - | Automotive | AEC-Q101 | Through Hole | TO-262AA | -40°C ~ 150°C |
|
|
VI40100GHM3/4WDIODE SCHOTTKY 100V 20A TO262AA |
3,608 |
|
Datasheet |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | Schottky | 100 V | 20A | 810 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 100 V | - | Automotive | AEC-Q101 | Through Hole | TO-262AA | -40°C ~ 150°C |
|
|
VIT760HM3/4WDIODE SCHOTTKY 60V 7.5A TO262AA |
5,244 |
|
Datasheet |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | Schottky | 60 V | 7.5A | 800 mV @ 7.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 700 µA @ 60 V | - | Automotive | AEC-Q101 | Through Hole | TO-262AA | -55°C ~ 150°C |
|

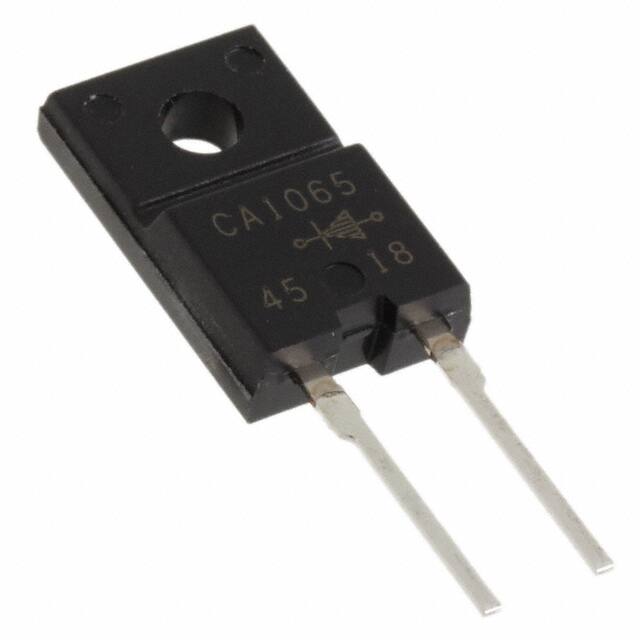

FMCA-11065DIODE SIL CARB 600V 10A TO220F |
5,398 |
|
Datasheet |
- | TO-220-2 Full Pack | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 600 V | 10A | 1.5 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 15 µA @ 600 V | - | - | - | Through Hole | TO-220F-2L | -40°C ~ 175°C |
|
JAN1N457DIODE GEN PURP 70V 150MA DO35 |
9,259 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 70 V | 150mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 25 nA @ 70 V | - | Military | MIL-PRF-19500/193 | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
|
JAN1N458DIODE GEN PURP 70V 150MA DO35 |
4,102 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 70 V | 150mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 25 nA @ 70 V | - | Military | MIL-PRF-19500/193 | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
JANTX1N3164DIODE GP 200V 300A DO205AB DO9 |
6,733 |
|
Datasheet |
- | DO-205AB, DO-9, Stud | Bulk | Active | Standard | 200 V | 300A | 1.55 V @ 940 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 200 V | - | Military | MIL-PRF-19500/211 | Chassis, Stud Mount | DO-205AB (DO-9) | -65°C ~ 200°C |
|
JANTX1N3289DIODE GEN PURP 200V 100A DO205AA |
3,361 |
|
Datasheet |
- | DO-205AA, DO-8, Stud | Bulk | Active | Standard | 200 V | 100A | 1.55 V @ 310 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 200 V | - | Military | MIL-PRF-19500/246 | Stud Mount | DO-205AA (DO-8) | -65°C ~ 200°C |
|
|
JANTX1N485BDIODE GEN PURP 180V 200MA DO35 |
2,606 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 180 V | 200mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 25 nA @ 180 V | - | Military | MIL-PRF-19500/118 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
|
JANTX1N486BDIODE GEN PURP 225V 200MA DO35 |
8,945 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 225 V | 200mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 25 nA @ 225 V | - | Military | MIL-PRF-19500/118 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
JANTX1N5194DIODE GEN PURP 70V 50MA DO35 |
2,908 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 70 V | 50mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 25 nA @ 70 V | - | Military | MIL-PRF-19500/118 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
JANTX1N6761-1DIODE SCHOTTKY 100V 1A DO41 |
9,707 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Bulk | Active | Schottky | 100 V | 1A | 690 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | 70pF @ 5V, 1MHz | Military | MIL-PRF-19500/586 | Through Hole | DO-41 | -65°C ~ 150°C |
|
|
JANTX1N6857-1DIODE SCHOTTKY 20V 150MA DO35 |
5,813 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | Schottky | 20 V | 150mA | 350 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | - | 150 nA @ 16 V | - | Military | MIL-PRF-19500/444 | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
JANTXV1N645-1DIODE GEN PURP 225V 400MA DO35 |
5,941 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 225 V | 400mA | 1 V @ 400 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 nA @ 225 V | - | Military | MIL-PRF-19500/240 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
JANTXV1N6492DIODE SCHOTTKY 45V 3.6A TO205AF |
2,270 |
|
Datasheet |
- | TO-205AF Metal Can | Bulk | Active | Schottky | 45 V | 3.6A | 560 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 45 V | 450pF @ 5V, 1MHz | Military | MIL-PRF-19500/567 | Through Hole | TO-205AF (TO-39) | -65°C ~ 175°C |
|
JANTXV1N6677UR-1DIODE SCHOTTKY 40V 200MA DO213AA |
7,526 |
|
Datasheet |
- | DO-213AA | Bulk | Active | Schottky | 40 V | 200mA | 500 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | - | 5 µA @ 40 V | 50pF @ 0V, 1MHz | Military | MIL-PRF-19500/610 | Surface Mount | DO-213AA | -65°C ~ 125°C |
|
JANTXV1N6858UR-1DIODE SCHOTTKY 70V 75MA DO213AA |
4,821 |
|
Datasheet |
- | DO-213AA | Bulk | Active | Schottky | 70 V | 75mA | 650 mV @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | 4.5pF @ 0V, 1MHz | Military | MIL-PRF-19500/444 | Surface Mount | DO-213AA | -65°C ~ 150°C |
|
MC5616DIODE GP 3KV 570MA S AXIAL |
7,525 |
|
Datasheet |
- | S, Axial | Bulk | Active | Standard | 3000 V | 570mA | 6 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 1 µA @ 3000 V | - | - | - | Through Hole | S, Axial | -65°C ~ 150°C |
|
|
VS-1N2160DIODE MED POWER RECT DO-203AB |
5,165 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
VS-20MQ040NPBFDIODE SCHOTTKY 40V 2.1A DO214AC |
9,249 |
|
Datasheet |
- | DO-214AC, SMA | Bulk | Obsolete | Schottky | 40 V | 2.1A | 690 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | - | - | - | Surface Mount | DO-214AC (SMA) | -55°C ~ 150°C |
Single Diodes Electronic Components
Explore Single Diodes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
