Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDK85840XXDIODE DISC RD 4000A 5800V |
2,318 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MS1N6674DIODE GEN PURP |
3,298 |
|
- |
- | TO-254-3, TO-254AA | Bulk | Active | Standard | 500 V | 15A | 1.55 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 50 µA @ 400 V | 150pF @ 10V, 1MHz | Military | MIL-PRF-19500/617 | Through Hole | TO-254 | - |
|
|
PS415014DIODE GP 5KV 1800A POW-R-BLOK |
7,534 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Standard | 5000 V | 1800A | - | Standard Recovery >500ns, > 200mA (Io) | 30 µs | 400 mA @ 5000 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module | -40°C ~ 150°C |
|
D1481N65TVFXPSA1DIODE GP 6.8KV 2200A D7626K-1 |
9,775 |
|
Datasheet |
- | DO-200AC, K-PUK | Tray | Active | Standard | 6800 V | 2200A | 1.8 V @ 2500 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 6800 V | - | - | - | Clamp On | BG-D7626K-1 | 160°C (Max) |
|
D2201N45TXPSA1DIODE GEN PURP 4.5KV 3250A |
8,277 |
|
Datasheet |
- | DO-200AD | Tray | Active | Standard | 4500 V | 3250A | 1.2 V @ 2500 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 mA @ 4500 V | - | - | - | Chassis Mount | - | -40°C ~ 140°C |
|
M2325HA400DIODE GEN PURP 4KV 2325A W121 |
2,060 |
|
Datasheet |
- | DO-200AD | Box | Active | Standard | 4000 V | 2325A | 2.6 V @ 2500 A | Standard Recovery >500ns, > 200mA (Io) | 5.4 µs | 150 mA @ 4000 V | - | - | - | Chassis Mount | W121 | -40°C ~ 150°C |
|
|
D471N90TXPSA1DIODE GEN PURP 9KV 760A |
7,467 |
|
Datasheet |
- | DO-200AB, B-PUK | Tray | Active | Standard | 9000 V | 760A | 3.2 V @ 1200 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 9000 V | - | - | - | Clamp On | - | -40°C ~ 160°C |
|

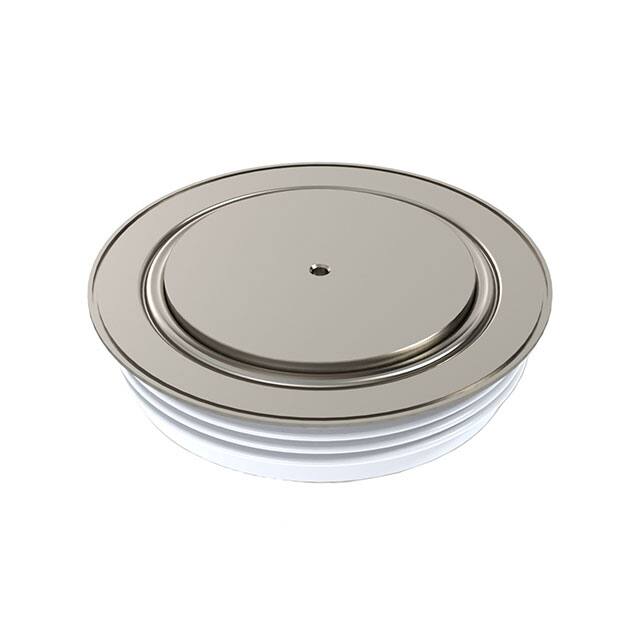

W2865HA680DIODE GEN PURP 6.8KV 4825A W121 |
5,158 |
|
Datasheet |
- | DO-200AD | Box | Active | Standard | 6800 V | 4825A | 4.04 V @ 10000 A | Standard Recovery >500ns, > 200mA (Io) | 53 µs | 100 mA @ 6800 V | - | - | - | Chassis Mount | W121 | -40°C ~ 150°C |
|
|
M2325HA450DIODE GEN PURP 4.5KV 2325A W121 |
9,387 |
|
Datasheet |
- | DO-200AD | Box | Active | Standard | 4500 V | 2325A | 2.6 V @ 2500 A | Standard Recovery >500ns, > 200mA (Io) | 5.4 µs | 150 mA @ 4500 V | - | - | - | Chassis Mount | W121 | -40°C ~ 150°C |
|
|
JAN1N6676T1RECTIFIER |
5,462 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | Military | MIL-PRF-19500/538 | - | - | - |
|
|
W2865HA720DIODE GEN PURP 7200V 4825A W121 |
5,150 |
|
Datasheet |
- | DO-200AD | Box | Active | Standard | 7200 V | 4825A | 4.04 V @ 10000 A | Standard Recovery >500ns, > 200mA (Io) | 53 µs | 100 mA @ 7200 V | - | - | - | Chassis Mount | W121 | -40°C ~ 150°C |
|
|
JANS1N5816RDIODE GEN PURP 150V 20A DO203AA |
7,365 |
|
- |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 150 V | 20A | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 150 V | 300pF @ 10V, 1MHz | Military | MIL-PRF-19500/478 | Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
JANS1N5812DIODE GEN PURP 50V 20A DO203AA |
3,373 |
|
- |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 50 V | 20A | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 50 V | 300pF @ 10V, 1MHz | Military | MIL-PRF-19500/478 | Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
JANS1N5814DIODE GEN PURP 100V 20A DO203AA |
8,773 |
|
- |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 100 V | 20A | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 100 V | 300pF @ 10V, 1MHz | Military | MIL-PRF-19500/478 | Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
D8320N04TVFXPSA1DIODE GEN PURP 400V 8320A |
7,748 |
|
Datasheet |
- | DO-200AD | Tray | Obsolete | Standard | 400 V | 8320A | 795 mV @ 4000 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 mA @ 400 V | - | - | - | Chassis Mount | - | -25°C ~ 150°C |
|
|
JANS1N5812RDIODE GEN PURP 50V 20A DO203AA |
2,418 |
|
- |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 50 V | 20A | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 50 V | 300pF @ 10V, 1MHz | Military | MIL-PRF-19500/478 | Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
JANS1N5814RDIODE GEN PURP 100V 20A DO203AA |
2,848 |
|
- |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 100 V | 20A | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 100 V | 300pF @ 10V, 1MHz | Military | MIL-PRF-19500/478 | Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
D4810N28TVFXPSA1DIODE GEN PURP 2.8KV 4810A |
4,987 |
|
Datasheet |
- | DO-200AE | Tray | Active | Standard | 2800 V | 4810A | 1.078 V @ 4000 A | Standard Recovery >500ns, > 200mA (Io) | - | 200 mA @ 2800 V | - | - | - | Chassis Mount | - | -40°C ~ 150°C |
|
|
JANTX1N6676T1RECTIFIER |
6,392 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | Military | MIL-PRF-19500/610 | - | - | - |
|
|
W108CED180DIODE GEN PURP 1.8KV 10815A W112 |
6,999 |
|
Datasheet |
- | DO-200AE | Box | Active | Standard | 1800 V | 10815A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis Mount | W112 | - |
Single Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Diodes?
This category includes related Single Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Diodes and other electronic components.
