Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANS1N6642UB2R/TRSIGNAL OR COMPUTER DIODE |
7,964 |
|
- |
- | 2-SMD, No Lead | Tape & Reel (TR) | Active | Standard | 75 V | 300mA | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 500 nA @ 75 V | 5pF @ 0V, 1MHz | Military | MIL-PRF-19500/578 | Surface Mount | UB2 | -65°C ~ 175°C |
|
|
JANS1N6642UB2/TRSIGNAL OR COMPUTER DIODE |
3,600 |
|
- |
- | 2-SMD, No Lead | Tape & Reel (TR) | Active | Standard | 75 V | 300mA | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 500 nA @ 75 V | 5pF @ 0V, 1MHz | Military | MIL-PRF-19500/578 | Surface Mount | UB2 | -65°C ~ 175°C |
|
|
A390PBDIODE GP 1.2KV 400A DO200AA |
8,107 |
|
Datasheet |
- | DO-200AA, A-PUK | Bulk | Discontinued at Digi-Key | Standard | 1200 V | 400A | 1.4 V @ 400 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 mA @ 1200 V | - | - | - | Clamp On | DO-200AA, R62 | - |
|
|
R6002625XXYADIODE GP 2.6KV 250A DO205AB DO9 |
3,737 |
|
Datasheet |
- | DO-205AB, DO-9, Stud | Bulk | Discontinued at Digi-Key | Standard | 2600 V | 250A | 1.5 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | 11 µs | 50 mA @ 2600 V | - | - | - | Chassis, Stud Mount | DO-205AB (DO-9) | -65°C ~ 175°C |
|
|
R6012625XXYADIODE GP REV 2.6KV 250A DO205AB |
8,366 |
|
Datasheet |
- | DO-205AB, DO-9, Stud | Bulk | Discontinued at Digi-Key | Standard, Reverse Polarity | 2600 V | 250A | 1.5 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | 11 µs | 50 mA @ 2600 V | - | - | - | Chassis, Stud Mount | DO-205AB (DO-9) | -65°C ~ 175°C |
|
|
S280W555-751DIODE MODULE |
4,618 |
|
- |
* | Module | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | Module | - |
|
|
1N6651RECTIFIER DIODE |
3,994 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

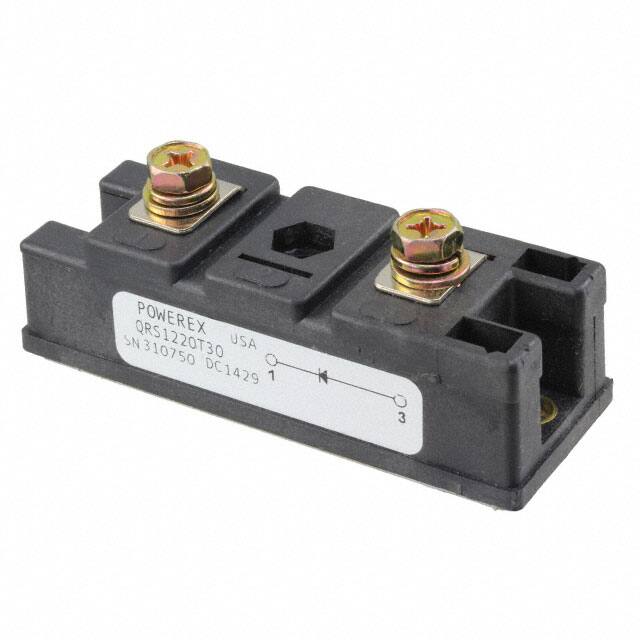

QRS1220T30DIODE GEN PURP 1.2KV 127A MODULE |
4,114 |
|
Datasheet |
- | Module | Bulk | Obsolete | Standard | 1200 V | 127A | 3.5 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 1 mA @ 1200 V | - | - | - | Chassis Mount | Module | - |
|
JANS1N5552DIODE GEN PURP 600V 3A AXIAL |
6,589 |
|
Datasheet |
- | B, Axial | Bulk | Active | Standard | 600 V | 3A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 600 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANS1N5550DIODE GEN PURP 200V 5A B AXIAL |
2,604 |
|
- |
- | B, Axial | Bulk | Active | Standard | 200 V | 5A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | - | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANS1N5551DIODE GEN PURP 400V 5A B AXIAL |
7,254 |
|
- |
- | B, Axial | Bulk | Active | Standard | 400 V | 5A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | - | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANS1N5553DIODE GEN PURP 800V 5A B AXIAL |
2,456 |
|
- |
- | B, Axial | Bulk | Active | Standard | 800 V | 5A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | - | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANS1N5554DIODE GEN PURP 5A B AXIAL |
4,520 |
|
- |
- | B, Axial | Bulk | Active | Standard | - | 5A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 1000 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
JANS1N5553/TRDIODE GEN PURP 800V 5A B AXIAL |
5,232 |
|
Datasheet |
- | B, Axial | Tape & Reel (TR) | Active | Standard | 800 V | 5A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | - | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANS1N5552/TRDIODE GEN PURP 600V 3A |
2,601 |
|
Datasheet |
- | B, Axial | Tape & Reel (TR) | Active | Standard | 600 V | 3A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 600 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANS1N5551/TRDIODE GEN PURP 400V 5A B AXIAL |
3,308 |
|
Datasheet |
- | B, Axial | Tape & Reel (TR) | Active | Standard | 400 V | 5A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | - | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANS1N5554/TRDIODE GEN PURP 5A B AXIAL |
6,740 |
|
Datasheet |
- | B, Axial | Tape & Reel (TR) | Active | Standard | - | 5A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 1000 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANS1N5550/TRSTD RECTIFIER |
5,773 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | Military | MIL-PRF-19500/420 | - | - | - |
|

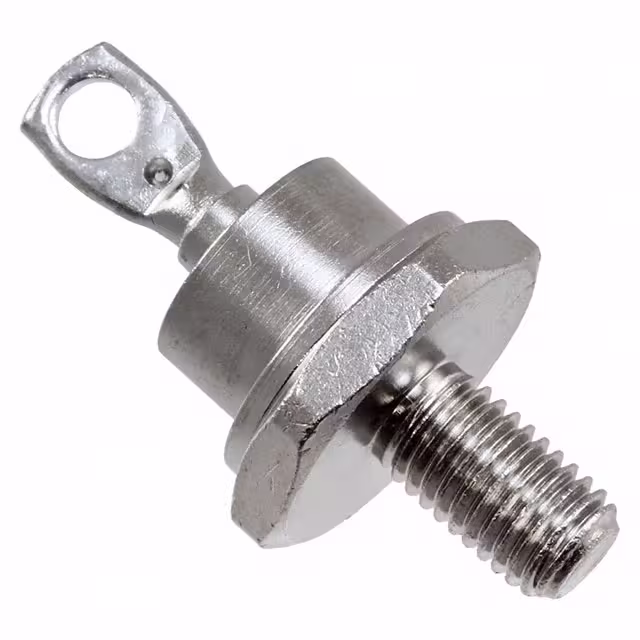

JANTX1N1184DIODE GEN PURP 100V 35A DO5 |
6,649 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Discontinued at Digi-Key | Standard | 100 V | 35A | 1.4 V @ 110 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 100 V | - | Military | MIL-PRF-19500/297 | Chassis, Stud Mount | DO-5 | -65°C ~ 175°C |
|
|
R7S01416XXDIODE GP 1.4KV 2020A HOCKEY PUCK |
5,927 |
|
Datasheet |
- | DO-200AA, A-PUK | Bulk | Discontinued at Digi-Key | Standard | 1400 V | 2020A | - | Standard Recovery >500ns, > 200mA (Io) | 7 µs | 50 mA @ 1400 V | - | - | - | Clamp On | Hockey Puck | -65°C ~ 200°C |
Single Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Diodes?
This category includes related Single Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Diodes and other electronic components.
