Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UES1101SME3/TRDIODE GEN PURP 50V 2.5A A AXIAL |
9,724 |
|
- |
- | Axial | Tape & Reel (TR) | Active | Standard | 50 V | 2.5A | 975 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 2 µA @ 50 V | - | - | - | Through Hole | A, Axial | 175°C |
|
|
UES1302E3/TRDIODE GEN PURP 100V 6A B AXIAL |
6,904 |
|
- |
- | B, Axial | Tape & Reel (TR) | Active | Standard | 100 V | 6A | 925 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | - | - | - | Through Hole | B, Axial | 175°C |
|
UES1105/TRDIODE GEN PURP 300V 2A A AXIAL |
3,350 |
|
- |
- | A, Axial | Tape & Reel (TR) | Active | Standard | 300 V | 2A | 1.25 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | - | - | - | - | Through Hole | A, Axial | -55°C ~ 150°C |
|
|
MD60U16D1-BPSTANDARD RECOVERY POWER MODULE |
2,037 |
|
Datasheet |
- | Module | Bulk | Active | Standard | 1600 V | 60A | 1.45 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | - | - | - | Chassis Mount | D1 | -40°C ~ 150°C |
|
|
JANTX1N4148UB2DIODE GEN PURP 75V 200MA UB2 |
6,135 |
|
- |
- | 2-SMD, No Lead | Bulk | Active | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 20 ns | 500 nA @ 75 V | 4pF @ 0V, 1MHz | Military | MIL-PRF-19500/116 | Surface Mount | UB2 | -65°C ~ 200°C |
|

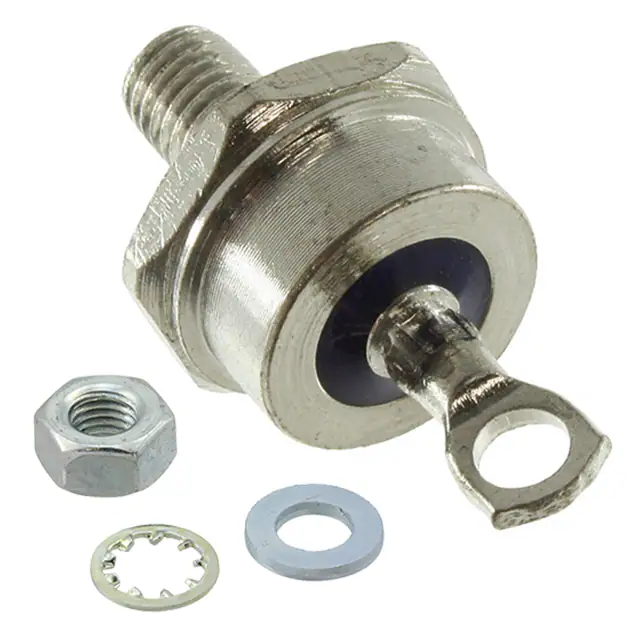

MUR5010RDIODE GEN PURP REV 100V 50A DO5 |
2 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 100 V | 50A | 1 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
|
|
RM25HG-24SDIODE GEN PURP 1.2KV 25A TO264-3 |
6,564 |
|
- |
- | TO-264-3, TO-264AA | Bulk | Obsolete | Standard | 1200 V | 25A | 4 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 100 µA @ 1200 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
|
RM50HG-12SDIODE GEN PURP 600V 50A TO264-3 |
4,418 |
|
- |
- | TO-264-3, TO-264AA | Bulk | Obsolete | Standard | 600 V | 50A | 4 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 100 µA @ 600 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
|
245NQ015RDIODE SCHOTTKY 15V 240A D-67 |
8,396 |
|
Datasheet |
- | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 15 V | 240A | 400 mV @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 80 mA @ 15 V | 15800pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
JANTX1N4148UB2/TRSIGNAL OR COMPUTER DIODE |
2,729 |
|
Datasheet |
- | 2-SMD, No Lead | Tape & Reel (TR) | Active | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 20 ns | 500 nA @ 75 V | 4pF @ 0V, 1MHz | Military | MIL-PRF-19500/116 | Surface Mount | UB2 | -65°C ~ 200°C |
|
|
JANTXV1N6626UDIODE GEN PURP 200V 1.75A D-5B |
2,454 |
|
- |
- | SQ-MELF, E | Bulk | Active | Standard | 200 V | 1.75A | 1.35 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 200 V | - | Military | MIL-PRF-19500/590 | Surface Mount | D-5B | -65°C ~ 150°C |
|
|
UES1101SMDIODE GEN PURP 50V 2A A SQ-MELF |
2,087 |
|
- |
- | SQ-MELF, A | Bulk | Active | Standard | 50 V | 2A | 975 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | - | - | - | - | Surface Mount | A, SQ-MELF | - |
|
|
JANTXV1N6626USDIODE GEN PURP 220V 1.75A D-5B |
9,073 |
|
Datasheet |
- | SQ-MELF, E | Bulk | Discontinued at Digi-Key | Standard | 220 V | 1.75A | 1.35 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 220 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Surface Mount | D-5B | -65°C ~ 150°C |
|
|
MNS1N6627USDIODE GP 440V 1.75A SQ-MELF B |
5,103 |
|
- |
- | SQ-MELF, B | Bulk | Active | Standard | 440 V | 1.75A | 1.35 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 2 µA @ 440 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Surface Mount | B, SQ-MELF | -65°C ~ 150°C |
|
|
DNA120E2200KODIODE GP 2.2KV 120A ISOPLUS264 |
4,299 |
|
Datasheet |
- | ISOPLUS264™ | Tube | Active | Standard | 2200 V | 120A | 1.31 V @ 120 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 2200 V | 88pF @ 700V, 1MHz | - | - | Through Hole | ISOPLUS264™ | -55°C ~ 175°C |
|
JANTXV1N6626US/TRDIODE GEN PURP 220V 1.75A D-5B |
4,185 |
|
- |
- | SQ-MELF, E | Tape & Reel (TR) | Active | Standard | 220 V | 1.75A | 1.35 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 220 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Surface Mount | D-5B | -65°C ~ 150°C |
|
|
JANTXV1N6626U/TRDIODE GP 220V 1.75A SQ-MELF |
6,027 |
|
- |
- | SQ-MELF, B | Tape & Reel (TR) | Active | Standard | 220 V | 1.75A | 1.35 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 2 µA @ 220 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Surface Mount | B, SQ-MELF | -65°C ~ 150°C |
|
UES1101SM/TRDIODE GEN PURP 50V 2A A SQ-MELF |
7,583 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 50 V | 2A | 975 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | - | - | - | - | Surface Mount | A, SQ-MELF | - |
|
|
240NQ045RDIODE SCHOTTKY 45V 240A D-67 |
9,833 |
|
Datasheet |
- | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 45 V | 240A | 610 mV @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | 10300pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
240NQ040DIODE SCHOTTKY 40V 240A D-67 |
8,415 |
|
Datasheet |
- | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 40 V | 240A | 610 mV @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 40 V | 10300pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
Single Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Diodes?
This category includes related Single Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Diodes and other electronic components.
