Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JAN1N6641USDIODE GEN PURP 50V 300MA D-5B |
2,707 |
|
Datasheet |
- | SQ-MELF, E | Bulk | Active | Standard | 50 V | 300mA | 1.1 V @ 300 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 100 nA @ 50 V | - | Military | MIL-PRF-19500/609 | Surface Mount | D-5B | -65°C ~ 175°C |
|
1N5802US/TRDIODE GEN PURP 50V 1A D-5A |
5,386 |
|
Datasheet |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 50 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 50 V | 25pF @ 10V, 1MHz | - | - | Surface Mount | D-5A | -65°C ~ 175°C |
|
|
FR30K05DIODE GEN PURP 800V 30A DO5 |
8,809 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 800 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 800 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR30M05DIODE GEN PURP 1KV 30A DO5 |
9,890 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1000 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 800 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
JAN1N3595US/TRDIODE GEN PURP 125V 4A B SQ-MELF |
5,021 |
|
- |
- | SQ-MELF, B | Tape & Reel (TR) | Active | Standard | 125 V | 4A | 1 V @ 200 mA | Standard Recovery >500ns, > 200mA (Io) | 3 µs | - | - | Military | MIL-PRF-19500/241 | Surface Mount | B, SQ-MELF | -65°C ~ 150°C |
|
|
VS-72HF160DIODE GEN PURP 1.6KV 70A DO203AB |
9,438 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1600 V | 70A | 1.35 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 180°C |
|
|
VS-72HFR160DIODE GP REV 1.6KV 70A DO203AB |
6,126 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 1600 V | 70A | 1.46 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 150°C |
|
JANTXV1N5418DIODE GEN PURP 400V 3A AXIAL |
8,318 |
|
Datasheet |
- | B, Axial | Bulk | Active | Standard | 400 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 400 V | - | Military | MIL-PRF-19500/411 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
LSIC2SD120C10ASIC SCHOTTKY DIODE 1200V 10A TO2 |
5,212 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
JANTXV1N5616USDIODE GEN PURP 400V 1A D-5A |
7,107 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Discontinued at Digi-Key | Standard | 400 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 400 V | - | Military | MIL-PRF-19500/429 | Surface Mount | D-5A | -65°C ~ 200°C |
|
|
JANTXV1N4944DIODE GEN PURP 400V 1A AXIAL |
9,898 |
|
Datasheet |
- | A, Axial | Bulk | Active | Standard | 400 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 400 V | 35pF @ 12V, 1MHz | Military | MIL-PRF-19500/359 | Through Hole | A, Axial | -65°C ~ 175°C |
|
JAN1N5554USDIODE GEN PURP 1KV 5A D-5B |
2,169 |
|
Datasheet |
- | SQ-MELF, E | Bulk | Active | Standard | 1000 V | 5A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 1000 V | - | Military | MIL-PRF-19500/420 | Surface Mount | D-5B | -65°C ~ 175°C |
|
|
JAN1N5553USDIODE GEN PURP 800V 3A D-5B |
3,151 |
|
Datasheet |
- | SQ-MELF, E | Bulk | Active | Standard | 800 V | 3A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 800 V | - | Military | MIL-PRF-19500/420 | Surface Mount | D-5B | -65°C ~ 175°C |
|

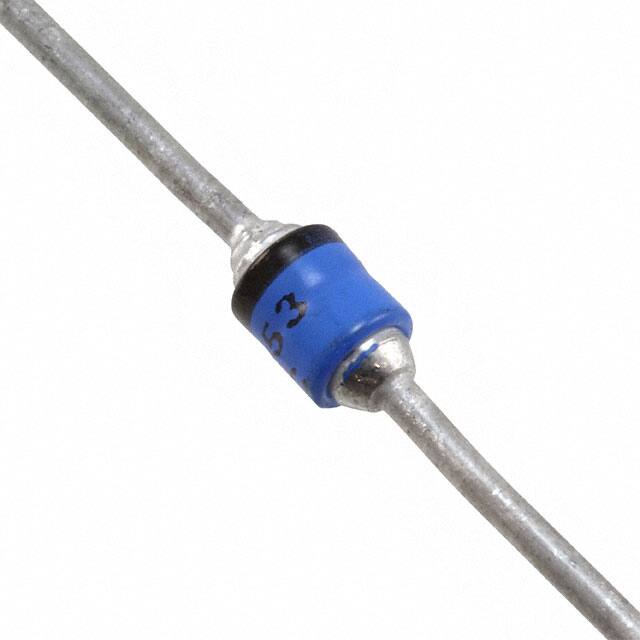

1N5419E3DIODE GEN PURP 500V 3A AXIAL |
7,250 |
|
Datasheet |
- | B, Axial | Bulk | Active | Standard | 500 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 1 µA @ 500 V | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
FR30A02DIODE GEN PURP 50V 30A DO5 |
8,795 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 50 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR30B02DIODE GEN PURP 100V 30A DO5 |
4,229 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 100 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR30D02DIODE GEN PURP 200V 30A DO5 |
8,757 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 200 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
JANTXV1N5418/TRDIODE GEN PURP 400V 3A |
5,101 |
|
Datasheet |
- | B, Axial | Tape & Reel (TR) | Active | Standard | 400 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 400 V | - | Military | MIL-PRF-19500/411 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
1N5554US/TRDIODE GEN PURP 1KV 3A D-5B |
5,235 |
|
Datasheet |
- | SQ-MELF, E | Tape & Reel (TR) | Active | Standard | 1000 V | 3A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 1000 V | - | - | - | Surface Mount | D-5B | -65°C ~ 175°C |
|
JANTX1N5623US/TRDIODE GEN PURP 1KV 1A D-5A |
8,874 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 500 nA @ 1 V | 15pF @ 12V, 1MHz | Military | MIL-PRF-19500/429 | Surface Mount | D-5A | -65°C ~ 175°C |
Single Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Diodes?
This category includes related Single Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Diodes and other electronic components.
