Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|
AG01AV1DIODE GEN PURP 600V 500MA AXIAL |
5,428 |
|
Datasheet |
- | Axial | Cut Tape (CT) | Active | Standard | 600 V | 500mA | 1.8 V @ 600 mA | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 100 µA @ 600 V | - | - | - | Through Hole | Axial | -40°C ~ 150°C |
|
|
AG01V1DIODE GEN PURP 400V 700MA AXIAL |
9,802 |
|
Datasheet |
- | Axial | Cut Tape (CT) | Active | Standard | 400 V | 700mA | 1.8 V @ 700 mA | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 100 µA @ 400 V | - | - | - | Through Hole | Axial | -40°C ~ 150°C |
|
|
AM01AV1DIODE GEN PURP 600V 1A AXIAL |
6,728 |
|
Datasheet |
- | Axial | Cut Tape (CT) | Active | Standard | 600 V | 1A | 980 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 600 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
|
AM01V1DIODE GEN PURP 400V 1A AXIAL |
2,233 |
|
Datasheet |
- | Axial | Cut Tape (CT) | Active | Standard | 400 V | 1A | 980 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 400 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
AM01ZV1DIODE GEN PURP 200V 1A AXIAL |
4,981 |
|
Datasheet |
- | Axial | Cut Tape (CT) | Active | Standard | 200 V | 1A | 980 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 200 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
|
AP01CV1DIODE GEN PURP 1KV 200MA AXIAL |
8,209 |
|
Datasheet |
- | Axial | Cut Tape (CT) | Active | Standard | 1000 V | 200mA | 4 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 200 ns | 100 µA @ 1000 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|

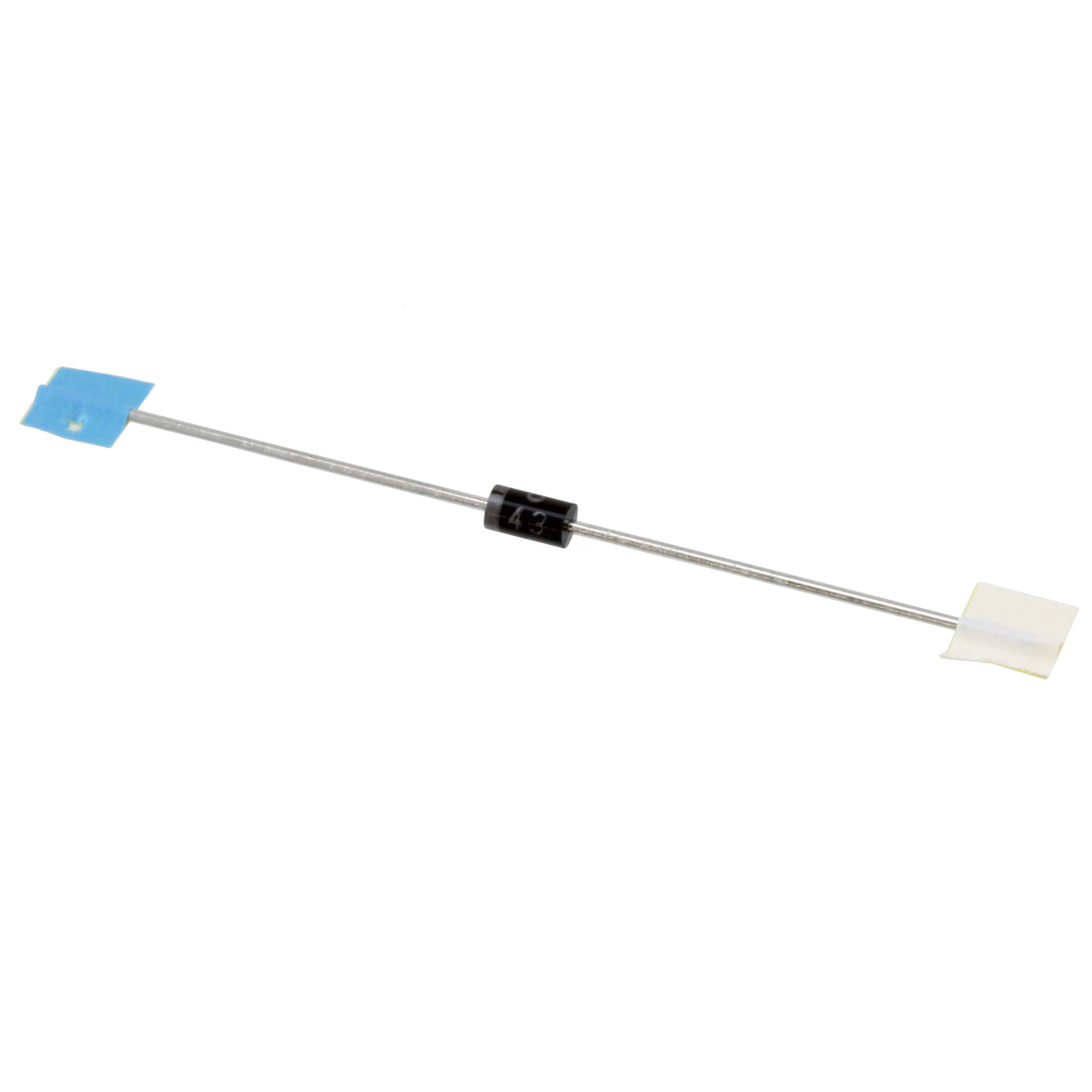

EM 1CV1DIODE GEN PURP 1KV 1A AXIAL |
8,102 |
|
Datasheet |
- | Axial | Cut Tape (CT) | Active | Standard | 1000 V | 1A | 1.05 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 µA @ 1000 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
EM 2AV1DIODE GEN PURP 600V 1.2A AXIAL |
5,882 |
|
Datasheet |
- | Axial | Cut Tape (CT) | Active | Standard | 600 V | 1.2A | 920 mV @ 1.2 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 600 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
|
EM 2V1DIODE GEN PURP 400V 1.2A AXIAL |
3,105 |
|
Datasheet |
- | Axial | Cut Tape (CT) | Active | Standard | 400 V | 1.2A | 920 mV @ 1.2 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 400 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
|
ES01FV1DIODE GEN PURP 1.5KV 500MA AXIAL |
3,879 |
|
Datasheet |
- | Axial | Cut Tape (CT) | Active | Standard | 1500 V | 500mA | 2 V @ 500 mA | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 10 µA @ 1500 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
NRVTS12120MFST1GDIODE SCHOTTKY 120V 12A 5DFN |
8,082 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Obsolete | Schottky | 120 V | 12A | 830 mV @ 12 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 75 µA @ 120 V | - | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) | -55°C ~ 150°C |
|
RB060M-40DDTRDIODE SCHOTTKY 40V 2A PMDU |
2,774 |
|
Datasheet |
- | SOD-123F | Tape & Reel (TR) | Active | Schottky | 40 V | 2A | 560 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | - | Automotive | AEC-Q101 | Surface Mount | PMDU | 150°C (Max) |
|
STPS5L60UFNDIODE SCHOTTKY 60V 5A SMBFLAT |
3,624 |
|
Datasheet |
- | DO-221AA, SMB Flat Leads | Tape & Reel (TR) | Obsolete | Schottky | 60 V | 5A | 520 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 220 µA @ 60 V | - | - | - | Surface Mount | SMBflat Notch | 150°C |
|
5819SMJ/TR13DIODE SCHOTTKY 40V 1A DO214AA |
7,799 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 40 V | - | - | - | Surface Mount | DO-214AA | -55°C ~ 150°C |
|
5820SMJ/TR13DIODE SCHOTTKY 20V 3A DO214AB |
2,123 |
|
Datasheet |
- | DO-214AB | Tape & Reel (TR) | Active | Schottky | 20 V | 3A | 460 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 20 V | - | - | - | Surface Mount | DO-214AB | -55°C ~ 150°C |
|
|
HSM540GE3/TR13DIODE SCHOTTKY 5A 40V SMCG |
9,219 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HSM550GE3/TR13DIODE SCHOTTKY 50V 5A DO215AB |
5,728 |
|
Datasheet |
- | DO-215AB, SMC Gull Wing | Tape & Reel (TR) | Active | Schottky | 50 V | 5A | 650 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 250 µA @ 50 V | - | - | - | Surface Mount | DO-215AB | -55°C ~ 175°C |
|
|
HSM560GE3/TR13DIODE SCHOTTKY 60V 5A DO215AB |
6,980 |
|
Datasheet |
- | DO-215AB, SMC Gull Wing | Tape & Reel (TR) | Active | Schottky | 60 V | 5A | 650 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 250 µA @ 60 V | - | - | - | Surface Mount | DO-215AB | -55°C ~ 175°C |
|
|
MBR18045E3/TUDIODE SCHOTTKY 18A 45V TO-220AC |
7,719 |
|
- |
* | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBR20100FCTE3/TUDIODE SCHOTTKY 20A 100V ITO220AB |
7,655 |
|
- |
* | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
Single Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Diodes?
This category includes related Single Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Diodes and other electronic components.
