Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UFS115JE3/TR13DIODE GEN PURP 150V 1A DO214BA |
3,577 |
|
Datasheet |
- | DO-214BA | Tape & Reel (TR) | Active | Standard | 150 V | 1A | 950 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 150 V | - | - | - | Surface Mount | DO-214BA | -55°C ~ 175°C |
|

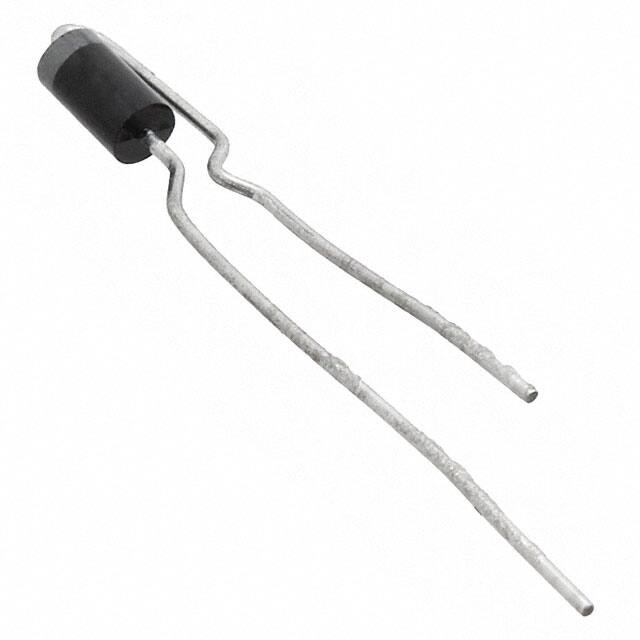

SARS01WDIODE GEN PURP 800V 1.2A AXIAL |
9,882 |
|
Datasheet |
- | Axial, Radial Bend | Cut Tape (CT) | Active | Standard | 800 V | 1.2A | 920 mV @ 1.2 A | Standard Recovery >500ns, > 200mA (Io) | 18 µs | 10 µA @ 800 V | - | - | - | Through Hole | Axial | -40°C ~ 150°C |
|
EG01CV1DIODE GEN PURP 1KV 500MA AXIAL |
4,681 |
|
Datasheet |
- | Axial | Cut Tape (CT) | Active | Standard | 1000 V | 500mA | 3.3 V @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 50 µA @ 1000 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
EP01CV1DIODE GEN PURP 1KV 200MA AXIAL |
7,756 |
|
Datasheet |
- | Axial | Cut Tape (CT) | Active | Standard | 1000 V | 200mA | 4 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 200 ns | 5 µA @ 1000 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
.JPG)
|
SJPL-F4VRDIODE GEN PURP 400V 1.5A SJP |
6,740 |
|
Datasheet |
- | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Standard | 400 V | 1.5A | 1.3 V @ 1.5 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 400 V | - | - | - | Surface Mount | SJP | -40°C ~ 150°C |
|
NRVTS1545EMFST1GDIODE SCHOTTKY 45V 15A 5DFN |
8,431 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Obsolete | Schottky | 45 V | 15A | 600 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 45 V | - | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) | -55°C ~ 175°C |
|
HS5F V7GDIODE GEN PURP 300V 5A DO214AB |
3,935 |
|
Datasheet |
- | DO-214AB, SMC | Tape & Reel (TR) | Discontinued at Digi-Key | Standard | 300 V | 5A | 1 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 300 V | 80pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AB (SMC) | -55°C ~ 150°C |
|
NRTS6100TFSTXGDIODE SCHOTTKY 100V 6A 8WDFN |
8,385 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | Schottky | 100 V | 6A | 680 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 100 V | 782pF @ 1V, 1MHz | - | - | Surface Mount | 8-WDFN (3.3x3.3) | -55°C ~ 175°C |
|
|
NRTS6100TFSTBGDIODE SCHOTTKY 100V 6A 8WDFN |
4,120 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | Schottky | 100 V | 6A | 680 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 100 V | 782pF @ 1V, 1MHz | - | - | Surface Mount | 8-WDFN (3.3x3.3) | -55°C ~ 175°C |
|
|
NRTS6100TFSTWGDIODE SCHOTTKY 100V 6A 8WDFN |
9,445 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | Schottky | 100 V | 6A | 680 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 100 V | 782pF @ 1V, 1MHz | - | - | Surface Mount | 8-WDFN (3.3x3.3) | -55°C ~ 175°C |
|
SK34BHE3-LTPDIODE SCHOTTKY 40V 3A DO214AA |
8,868 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Active | Schottky | 40 V | 3A | 500 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 40 V | 210pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) | -55°C ~ 125°C |
|
|
STR10100LBF_R1_00701DIODE SCHOTTKY 100V 10A SMBF |
6,002 |
|
Datasheet |
- | DO-221AA, SMB Flat Leads | Tape & Reel (TR) | Obsolete | Schottky | 100 V | 10A | 720 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 100 V | 600pF @ 4V, 1MHz | - | - | Surface Mount | SMBF | -55°C ~ 150°C |
|
|
NRVTS560ETFSWFTWG60V LOW LEAKAGE TRENCH RECTIFIER |
9,407 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | Schottky | 60 V | 5A | 680 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 60 V | - | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) | -55°C ~ 175°C |
|
|
VS-APH3006L-N3DIODE GEN PURP 600V 30A TO247AD |
3,031 |
|
Datasheet |
FRED Pt® | TO-247-3 | Tube | Active | Standard | 600 V | 30A | 2.65 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 26 ns | 30 µA @ 600 V | - | - | - | Through Hole | TO-247AD | -55°C ~ 175°C |
|
VS-EPH3006L-N3DIODE GEN PURP 600V 30A TO247AD |
8,934 |
|
Datasheet |
FRED Pt® | TO-247-2 | Tube | Active | Standard | 600 V | 30A | 2.65 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 26 ns | 30 µA @ 600 V | - | - | - | Through Hole | TO-247AD | -55°C ~ 175°C |
|
|
VS-EPU3006L-N3DIODE GEN PURP 600V 30A TO247AD |
9,579 |
|
Datasheet |
FRED Pt® | TO-247-2 | Tube | Active | Standard | 600 V | 30A | 2 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 30 µA @ 600 V | - | - | - | Through Hole | TO-247AD | -55°C ~ 175°C |
|
|
SD125SC150B.T1DIODE SCHOTTKY 150V 15A DIE |
3,090 |
|
Datasheet |
- | Die | Tray | Active | Schottky | 150 V | 15A | 890 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 150 V | 500pF @ 5V, 1MHz | - | - | Surface Mount | Die | -55°C ~ 200°C |
|
|
SD125SC200B.T1DIODE SCHOTTKY 200V 15A DIE |
8,716 |
|
Datasheet |
- | Die | Tray | Active | Schottky | 200 V | 15A | 920 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 350 µA @ 200 V | 300pF @ 5V, 1MHz | - | - | Surface Mount | Die | -55°C ~ 200°C |
|
|
SD125SCU100A.T1DIODE SCHOTTKY 100V 15A DIE |
8,312 |
|
Datasheet |
- | Die | Tray | Active | Schottky | 100 V | 15A | 840 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 350 µA @ 100 V | 600pF @ 5V, 1MHz | - | - | Surface Mount | Die | -55°C ~ 200°C |
|
STPS20L15DDIODE SCHOTTKY 15V 20A TO220AC |
5,411 |
|
Datasheet |
- | TO-220-2 | Tube | Obsolete | Schottky | 15 V | 20A | 410 mV @ 19 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 15 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 125°C |
Single Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Diodes?
This category includes related Single Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Diodes and other electronic components.
