Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMEG2020EJFDIODE SCHOTTKY 20V 2A SOD323F |
19,233 |
|
Datasheet |
- | SC-90, SOD-323F | Tape & Reel (TR) | Active | Schottky | 20 V | 2A | 525 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 20 V | 50pF @ 5V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOD-323F | 150°C (Max) |
|
SS310LWDIODE SCHOTTKY 100V 3A SOD123W |
19,175 |
|
Datasheet |
- | SOD-123W | Tape & Reel (TR) | Active | Schottky | 100 V | 3A | 850 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 µA @ 100 V | - | - | - | Surface Mount | SOD-123W | -55°C ~ 150°C |
|
UF4006ULTRFAST DO41 800V 1A 75NS 175C |
18,480 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Active | Standard | 800 V | 1A | 1.7 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 10 µA @ 800 V | 17pF @ 4V, 1MHz | - | - | Through Hole | DO-41 | -65°C ~ 150°C |
|
SK34-TPDIODE SCHOTTKY 40V 3A SMC |
17,635 |
|
Datasheet |
- | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 40 V | 3A | 500 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 250pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AB (SMC) | -55°C ~ 150°C |
|
RB521CS-30FHT2RADIODE SCHOTTKY 30V 100MA VMN2 |
17,477 |
|
Datasheet |
- | 2-SMD, Flat Leads | Tape & Reel (TR) | Active | Schottky | 30 V | 100mA | 350 mV @ 10 mA | Small Signal =< 200mA (Io), Any Speed | - | 10 µA @ 10 V | - | Automotive | AEC-Q101 | Surface Mount | VMN2 (SOD-923) | 150°C (Max) |
|
RS1DDIODE GEN PURP 200V 1A DO214AC |
16,988 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | Standard | 200 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 5 µA @ 200 V | 10pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AC (SMA) | -55°C ~ 150°C |
|
BAT86,133DIODE SCHOTTKY 50V 200MA DO34 |
16,950 |
|
Datasheet |
- | DO-204AG, DO-34, Axial | Cut Tape (CT) | Active | Schottky | 50 V | 200mA | 900 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 5 µA @ 40 V | 8pF @ 1V, 1MHz | - | - | Through Hole | DO-34 | 125°C (Max) |
|
SS1H10HE3_B/IDIODE SCHOTTKY 100V 1A DO214AC |
16,901 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | Schottky | 100 V | 1A | 860 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 µA @ 100 V | - | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) | 175°C (Max) |
|
|
VS-20MQ100-M3/5ATDIODE SCHOTTKY 100V 2A DO214AC |
15,497 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | Schottky | 100 V | 2A | 910 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | 38pF @ 10V, 1MHz | - | - | Surface Mount | DO-214AC (SMA) | -55°C ~ 150°C |
|

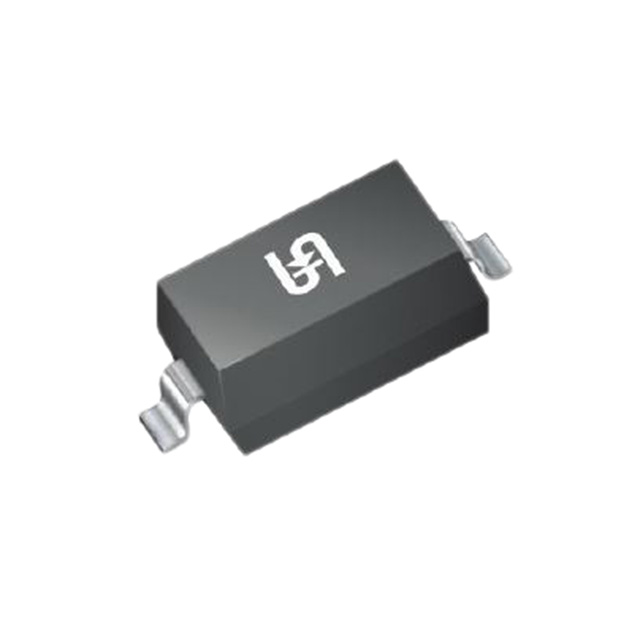

S1AL1A, 50V, STANDARD RECOVERY RECTI |
15,000 |
|
Datasheet |
- | SOD-123 | Tape & Reel (TR) | Not For New Designs | Standard | 50 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 1.8 µs | 5 µA @ 50 V | 9pF @ 4V, 1MHz | - | - | Surface Mount | Sub SMA | -55°C ~ 175°C |
|
CDBFN160-HFDIODE SCHOTTKY 60V 1A SOD323 |
12,425 |
|
Datasheet |
- | SC-90, SOD-323F | Tape & Reel (TR) | Active | Schottky | 60 V | 1A | 700 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | 120pF @ 4V, 1MHz | - | - | Surface Mount | SOD-323 | -50°C ~ 150°C |
|
|
BYG10D-E3/TRDIODE AVAL 200V 1.5A DO214AC |
12,110 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | Avalanche | 200 V | 1.5A | 1.15 V @ 1.5 A | Standard Recovery >500ns, > 200mA (Io) | 4 µs | 1 µA @ 200 V | - | - | - | Surface Mount | DO-214AC (SMA) | -55°C ~ 150°C |
|
1N5819HW1-7-FDIODE SBR 40V 1A SOD123F |
10,042 |
|
Datasheet |
SBR® | SOD-123F | Tape & Reel (TR) | Active | Super Barrier | 40 V | 1A | 510 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 15 ns | 500 µA @ 40 V | 30pF @ 10V, 1MHz | - | - | Surface Mount | SOD-123F | -55°C ~ 125°C |
~~2.jpg)
|
SS2P5-M3/84ADIODE SCHOTTKY 50V 2A DO220AA |
9,876 |
|
Datasheet |
eSMP® | DO-220AA | Tape & Reel (TR) | Active | Schottky | 50 V | 2A | 700 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 50 V | 80pF @ 4V, 1MHz | - | - | Surface Mount | DO-220AA (SMP) | -55°C ~ 150°C |
|
SS14FPDIODE SCHOTTKY 40V 1A SOD123HE |
8,550 |
|
Datasheet |
- | SOD-123H | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 400 µA @ 40 V | 54pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOD-123HE | -55°C ~ 150°C |
|
RB501V-40TE-17DIODE SCHOTTKY 40V 100MA UMD2 |
8,182 |
|
Datasheet |
- | SC-90, SOD-323F | Tape & Reel (TR) | Active | Schottky | 40 V | 100mA | 550 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 30 µA @ 10 V | 6pF @ 10V, 1MHz | - | - | Surface Mount | UMD2 | 125°C (Max) |
|
BAS86-GS08DIODE SCHOT 50V 200MA SOD80 |
7,998 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Active | Schottky | 50 V | 200mA | 900 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 5 µA @ 40 V | 8pF @ 1V, 1MHz | - | - | Surface Mount | SOD-80 MiniMELF | 125°C (Max) |
|
ACURA107-HFDIODE AVALANCHE 1KV 1A DO214AC |
7,351 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | Avalanche | 1000 V | 1A | 1.7 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 5 µA @ 1000 V | 15pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) | -55°C ~ 150°C |
|
1N5404GDIODE GEN PURP 400V 3A AXIAL |
6,524 |
|
Datasheet |
- | DO-201AA, DO-27, Axial | Bulk | Active | Standard | 400 V | 3A | 1 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 400 V | - | - | - | Through Hole | Axial | -65°C ~ 150°C |
|
S2DDIODE GEN PURP 200V 2A DO214AA |
6,520 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Active | Standard | 200 V | 2A | 1.15 V @ 2 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 200 V | 30pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AA (SMB) | -65°C ~ 150°C |
Single Diodes Electronic Components
Explore Single Diodes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
