Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMXSTB300 TR PBFREEDIODE ARRAY GP 20V 100MA SOT-26 |
2,554 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Obsolete | 3 Pair Series Connection | Standard | 20 V | 100mA | 2.91 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 10 µA @ 20 V | -65°C ~ 150°C | - | - | Surface Mount | SOT-26 |
|
|
CMXSTB300 BK PBFREEDIODE ARRAY GP 20V 100MA SOT-26 |
5,174 |
|
Datasheet |
- | SOT-23-6 | Bulk | Obsolete | 3 Pair Series Connection | Standard | 20 V | 100mA | 2.91 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 10 µA @ 20 V | -65°C ~ 150°C | - | - | Surface Mount | SOT-26 |
|
|
CMXSTB400 TR PBFREEDIODE ARRAY GP 20V 100MA SOT-26 |
8,210 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Obsolete | 4 Pair Series Connection | Standard | 20 V | 100mA | 4.1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 10 µA @ 20 V | -65°C ~ 150°C | - | - | Surface Mount | SOT-26 |
|
|
CMXSH2-4LS TR PBFREEDIODE ARR SCHOTT 40V 200MA SOT26 |
7,525 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Obsolete | 2 Pair Series Connection | Schottky | 40 V | 200mA (DC) | 500 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 50 µA @ 20 V | -65°C ~ 150°C | - | - | Surface Mount | SOT-26 |
|
|
CMXD2004S BK PBFREEDIODE ARRAY GP 240V 200MA SOT-26 |
2,997 |
|
Datasheet |
- | SOT-23-6 | Bulk | Obsolete | 2 Pair Series Connection | Standard | 240 V | 200mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 100 nA @ 240 V | -65°C ~ 150°C | - | - | Surface Mount | SOT-26 |
|
|
MBRF1060CT-HFDIODE ARR SCHOT 60V 10A ITO220AB |
6,412 |
|
- |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 10A | 750 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | 175°C | - | - | Through Hole | ITO-220AB |
|
|
WNSC16650CWQDIODE ARRAY SIC 650V 16A TO247-3 |
5,067 |
|
Datasheet |
- | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 650 V | 16A | 1.7 V @ 8 A | No Recovery Time > 500mA (Io) | 0 ns | 50 µA @ 650 V | 175°C | - | - | Through Hole | TO-247-3 |
|
|
VF40150C-E3R/4WDIODE ARR SCHOTTKY 150V ITO220AB |
4,100 |
|
- |
- | TO-220-3 Full Pack, Isolated Tab | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 150 V | 20A | 1.43 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 250 µA @ 150 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
|
CMUD7000 BKDIODE ARRAY GP 100V 200MA SOT523 |
3,298 |
|
Datasheet |
- | SC-89, SOT-490 | Strip | Obsolete | 1 Pair Series Connection | Standard | 100 V | 200mA | 1.1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 500 nA @ 100 V | -65°C ~ 150°C | - | - | Surface Mount | SOT-523 |
|

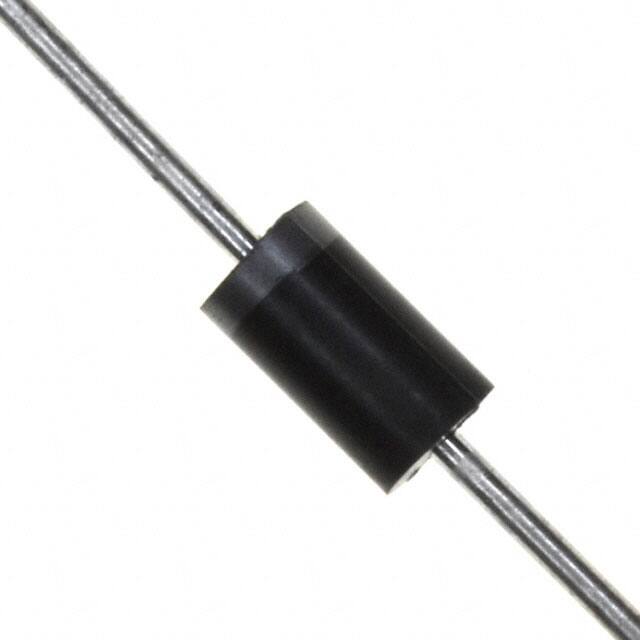

SB360L-5705E3/72DIODE SCHOTTKY |
2,193 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
V40120C-E3L/4WDIODE ARR SCHOT 120V 20A TO220AB |
7,072 |
|
- |
- | TO-220-3 | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 20A | 880 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 120 V | -40°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
|
FMLB-4204SDIODE ARRAY GP 400V 20A TO-3PF |
2,779 |
|
- |
- | TO-3P-3 Full Pack | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 20A | 1.3 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 200 µA @ 400 V | -40°C ~ 150°C | - | - | Through Hole | TO-3PF |
|
|
SBR20U40CT-01DIODE ARRAY SBR 40V 10A TO-220-3 |
6,682 |
|
- |
SBR® | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Super Barrier | 40 V | 10A | 470 mV @ 10 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 40 V | -65°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|
SBR20U60CTFP-GDIODE ARRAY SBR 60V 20A ITO220AB |
7,073 |
|
Datasheet |
SBR® | TO-220-3 Full Pack, Isolated Tab | Tube | Active | 1 Pair Common Cathode | Super Barrier | 60 V | 20A | 710 mV @ 20 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 60 V | -65°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
|
SBR30300CTFP-JTDIODE ARR SBR 300V 15A ITO220AB |
5,321 |
|
Datasheet |
SBR® | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | 1 Pair Common Cathode | Super Barrier | 300 V | 15A | 1.03 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 100 µA @ 300 V | -65°C ~ 175°C | - | - | Through Hole | ITO-220AB |
|
|
SBR10200CTFP-JTDIODE ARR SBR 200V 10A ITO220AB |
3,384 |
|
- |
SBR® | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | 1 Pair Common Cathode | Super Barrier | 200 V | 10A | 900 mV @ 5 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 200 V | -65°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
|
SBR30A100CT-E1DIODE ARRAY SBR 100V 15A TO220-3 |
6,959 |
|
Datasheet |
SBR® | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Super Barrier | 100 V | 15A | 800 mV @ 15 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 100 V | -65°C ~ 175°C | - | - | Through Hole | TO-220-3 |
|
|
SBR40100CTFP-JTDIODE ARR SBR 100V 20A ITO220AB |
6,641 |
|
Datasheet |
SBR® | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | 1 Pair Common Cathode | Super Barrier | 100 V | 20A | 820 mV @ 20 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 100 V | -65°C ~ 175°C | - | - | Through Hole | ITO-220AB |
|
|
SBR20A60CT-GDIODE ARRAY SBR 60V 10A TO-220-3 |
2,331 |
|
Datasheet |
SBR® | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Super Barrier | 60 V | 10A | 650 mV @ 10 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 60 V | -65°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
|
SBR30A120CTFP-JTDIODE ARR SBR 120V 15A ITO220AB |
5,731 |
|
Datasheet |
SBR® | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | 1 Pair Common Cathode | Super Barrier | 120 V | 15A | 830 mV @ 15 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 120 V | -65°C ~ 175°C | - | - | Through Hole | ITO-220AB |
