Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBRD1035CTL-TDIODE SCHOTTKY DPAK |
9,652 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBRD460CT-TDIODE SCHOTTKY DPAK |
6,106 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBRF1050CTDIODE SCHOTTKY ITO220AB |
7,575 |
|
- |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MBRF20100CTDIODE SCHOTTKY ITO220AB |
9,556 |
|
- |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MBRF20100CTLDIODE SCHOTTKY ITO220AB |
7,057 |
|
- |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBRF20100CT-LJDIODE SCHOTTKY ITO220AB |
4,619 |
|
- |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBRF20150CTLDIODE SCHOTTKY ITO220AB |
7,922 |
|
- |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MMBD4448HADW-7-GDIODE GENERAL PURPOSE SOT23 |
7,753 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MMBD4448HAQW-7-GDIODE GENERAL PURPOSE SOT23 |
5,001 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MMBD4448HCQW-7-GDIODE GENERAL PURPOSE SOT23 |
7,745 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MMBD4448HSDW-7-GDIODE GENERAL PURPOSE SOT23 |
5,725 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MMBD4448HTW-7-GDIODE GENERAL PURPOSE SOT23 |
3,388 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NRVUD620CTGDIODE ARRAY GP 200V 3A DPAK |
5,767 |
|
Datasheet |
SWITCHMODE™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 3A | 1 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 200 V | -65°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
SBAT54CWT3GDIODE ARR SCHOTT 30V 200MA SC703 |
8,671 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | -55°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount | SC-70-3 (SOT323) |
|

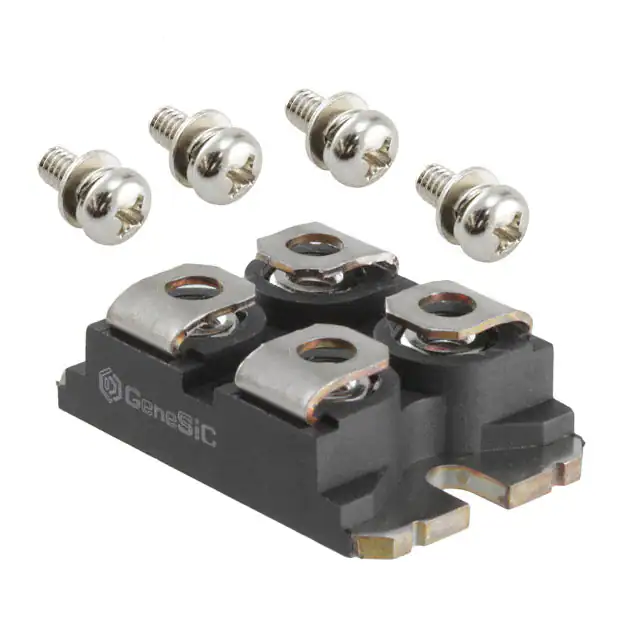

GC2X100MPS06-227DIODE MOD SIC 650V 209A SOT-227 |
8,054 |
|
Datasheet |
SiC Schottky MPS™ | SOT-227-4, miniBLOC | Tube | Discontinued at Digi-Key | 2 Independent | SiC (Silicon Carbide) Schottky | 650 V | 209A (DC) | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 20 µA @ 650 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
NRVTSB40200CTT4GDIODE ARRAY SCHOT 200V 20A D2PAK |
4,259 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 200 V | 20A | 1.45 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 200 V | -55°C ~ 150°C | - | - | Surface Mount | D2PAK |
|
DD1000S33HE3BOSA1DIODE MODULE GP 3300V AGIHVB1303 |
3,135 |
|
Datasheet |
- | Module | Tray | Active | 2 Independent | Standard | 3300 V | 1000A (DC) | 3.85 V @ 1000 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 150°C | - | - | Chassis Mount | AG-IHVB130-3 |
|
|
DD500S33HE3BOSA1DIODE MODULE GP 3300V AGIHVB1303 |
8,895 |
|
Datasheet |
- | Module | Tray | Active | 2 Independent | Standard | 3300 V | 500A (DC) | 3.85 V @ 500 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 150°C | - | - | Chassis Mount | AG-IHVB130-3 |
|
|
DD1200S33K2CB3S2NDSA1DIODE MODULE GP 3300V AIHV130-3 |
9,073 |
|
Datasheet |
- | Module | Tray | Obsolete | 2 Independent | Standard | 3300 V | 1200A (DC) | 3.5 V @ 1200 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | A-IHV130-3 |
|
|
DD800S33K2CB3S2NDSA1DIODE MOD GP 3300V 800A AIHV1303 |
8,681 |
|
Datasheet |
- | Module | Tray | Obsolete | 2 Independent | Standard | 3300 V | 800A (DC) | 3.5 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | A-IHV130-3 |
