Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V40PW15C-M3/IDIODE ARR SCHOTTKY 150V SLIMDPAK |
8,923 |
|
Datasheet |
eSMP®, TMBS® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 150 V | 20A | 1.45 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 150 V | -40°C ~ 150°C | - | - | Surface Mount | SlimDPAK |
|
CMPD6263A TR PBFREEDIODE ARRAY SCHOT 70V 15MA SOT23 |
2,869 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | Schottky | 70 V | 15mA | 410 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | -65°C ~ 150°C | - | - | Surface Mount | SOT-23 |
|
VS-12CTQ045-M3DIODE ARR SCHOTT 45V 6A TO-220-3 |
8,000 |
|
Datasheet |
- | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 45 V | 6A | 730 mV @ 12 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 45 V | -55°C ~ 175°C | - | - | Through Hole | TO-220-3 |
|
FERD30H60CTSDIODE ARRAY FERD 60V 15A TO-220 |
726 |
|
Datasheet |
- | TO-220-3 | Tube | Active | 1 Pair Common Cathode | FERD (Field Effect Rectifier Diode) | 60 V | 15A | 585 mV @ 15 A | No Recovery Time > 500mA (Io) | - | 170 µA @ 60 V | 175°C (Max) | - | - | Through Hole | TO-220 |
|
VS-30CTQ060S-M3DIODE ARR SCHOTT 60V 15A TO263AB |
7,586 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 1 Pair Common Cathode | Schottky | 60 V | 15A | 620 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 60 V | -55°C ~ 150°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
STPS20L60CGY-TRDIODE ARRAY SCHOTT 60V 10A D2PAK |
941 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 60 V | 10A | 600 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 350 µA @ 60 V | -40°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
|
VS-16CTQ100S-M3DIODE ARR SCHOTT 100V 8A TO263AB |
6,098 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 1 Pair Common Cathode | Schottky | 100 V | 8A | 720 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 100 V | -55°C ~ 175°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
V20PW45C-M3/IDIODE ARR SCHOT 45V 10A SLIMDPAK |
4,500 |
|
Datasheet |
eSMP®, TMBS® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 45 V | 10A | 600 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -40°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SlimDPAK |
|
STPS3045CWDIODE ARR SCHOTT 45V 15A TO247-3 |
689 |
|
Datasheet |
- | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 45 V | 15A | 570 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | 200°C (Max) | - | - | Through Hole | TO-247-3 |
|
SBR30300CTFPDIODE ARR SBR 300V 15A ITO220AB |
451 |
|
Datasheet |
SBR® | TO-220-3 Full Pack, Isolated Tab | Tube | Active | 1 Pair Common Cathode | Super Barrier | 300 V | 15A | 1.03 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 100 µA @ 300 V | -65°C ~ 175°C | - | - | Through Hole | ITO-220AB |
|
RB085BM-30FHTLDIODE ARRAY SCHOT 30V 10A TO-252 |
2,175 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 30 V | 10A | 480 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 30 V | 150°C (Max) | Automotive | AEC-Q101 | Surface Mount | TO-252 |
|
|
STPS4045CWDIODE ARR SCHOTT 45V 20A TO247-3 |
988 |
|
Datasheet |
- | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 45 V | 20A | 760 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | 175°C (Max) | - | - | Through Hole | TO-247-3 |
|
STPS20L25CGDIODE ARRAY SCHOTT 25V 10A TO263 |
905 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 1 Pair Common Cathode | Schottky | 25 V | 10A | 460 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 25 V | 150°C (Max) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
V40PWM15CHM3/IDIODE ARR SCHOTTKY 150V SLIMDPAK |
4,207 |
|
Datasheet |
eSMP®, TMBS® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 150 V | 20A | 1.45 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 150 V | -40°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | SlimDPAK |
|
|
SBR30A60CTB-13DIODE ARRAY SBR 60V 15A TO263AB |
1,511 |
|
Datasheet |
SBR® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Super Barrier | 60 V | 15A | 630 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | -65°C ~ 150°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
MBR30200FCTE3/TUDIODE ARR SCHOT 200V 15A TO220AB |
1,378 |
|
Datasheet |
- | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 200 V | 15A | 900 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 200 V | -65°C ~ 175°C | - | - | Through Hole | TO-220AB |
|
V40100CI-M3/PDIODE ARR SCHOT 100V 20A TO220AB |
5,897 |
|
Datasheet |
TMBS® | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 100 V | 20A | 700 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -40°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
|
MUR1640CTGDIODE ARRAY GP 400V 8A TO-220 |
359 |
|
Datasheet |
SWITCHMODE™ | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Standard | 400 V | 8A | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 10 µA @ 400 V | -65°C ~ 175°C | - | - | Through Hole | TO-220 |
|
|
VS-30CTQ100-M3DIODE ARR SCHOT 100V 15A TO2203 |
4,050 |
|
Datasheet |
- | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 100 V | 15A | 1.05 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 100 V | -55°C ~ 175°C | - | - | Through Hole | TO-220-3 |
|

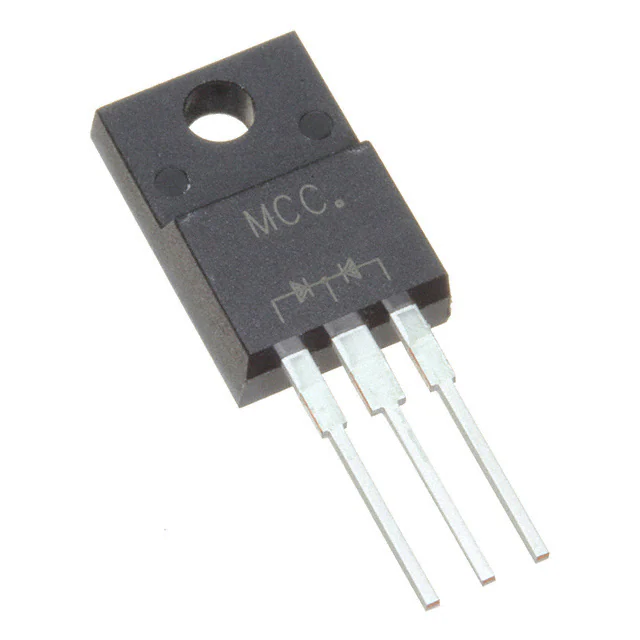

MBR10200FCT-BPDIODE ARR SCHOTTKY 200V ITO220AB |
1,544 |
|
Datasheet |
- | TO-220-3 Isolated Tab | Tube | Active | 1 Pair Common Cathode | Schottky | 200 V | 10A | 920 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 200 V | -50°C ~ 150°C | - | - | Through Hole | ITO-220AB |
