Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR20200CTDIODE ARR SCHOTT 200V 10A TO-220 |
8,167 |
|
- |
SWITCHMODE™ | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 200 V | 10A | 900 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -65°C ~ 175°C | - | - | Through Hole | TO-220 |
|
|
MBR2030CTLDIODE ARRAY SCHOT 30V 10A TO-220 |
2,030 |
|
Datasheet |
SWITCHMODE™ | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 10A | 520 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 30 V | -65°C ~ 175°C | - | - | Through Hole | TO-220 |
|
MBRB2535CTLT4DIODE ARR SCHOTT 35V 12.5A D2PAK |
7,651 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 12.5A | 470 mV @ 12.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 35 V | -65°C ~ 125°C | - | - | Surface Mount | D2PAK |
|
MUR3020WTDIODE ARRAY GP 200V 15A TO247-3 |
6,166 |
|
Datasheet |
SWITCHMODE™ | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 15A | 1.05 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 200 V | -65°C ~ 175°C | - | - | Through Hole | TO-247-3 |
|
|
MBRB20200CTDIODE ARRAY SCHOT 200V 10A D2PAK |
5,876 |
|
Datasheet |
SWITCHMODE™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 200 V | 10A | 900 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -65°C ~ 150°C | - | - | Surface Mount | D2PAK |
|
BAW79DE6327HTSA1DIODE ARRAY GP 400V 1A PG-SOT89 |
8,881 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 1A (DC) | 1.6 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 1 µs | 1 µA @ 400 V | 150°C (Max) | - | - | Surface Mount | PG-SOT89 |
|
BAV99T116DIODE ARRAY GP 75V 215MA SSD3 |
8,781 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | 1 Pair Series Connection | Standard | 75 V | 215mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 1 µA @ 75 V | 150°C (Max) | - | - | Surface Mount | SSD3 |
|
MBR6045PTDIODE ARRAY SCHOTT 45V 60A TO-3P |
7,259 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 60A | 750 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -55°C ~ 150°C | - | - | Through Hole | TO-3P |
|
NSR15DW1T1GDIODE ARRAY SCHOTT 15V 30MA SC88 |
7,955 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 2 Independent | Schottky | 15 V | 30mA (DC) | 680 mV @ 10 mA | Small Signal =< 200mA (Io), Any Speed | - | 50 nA @ 1 V | -65°C ~ 150°C | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
STTH1002CGDIODE ARRAY GP 200V 8A D2PAK |
7,997 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 8A | 1.1 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 5 µA @ 200 V | 175°C (Max) | - | - | Surface Mount | D2PAK |
|

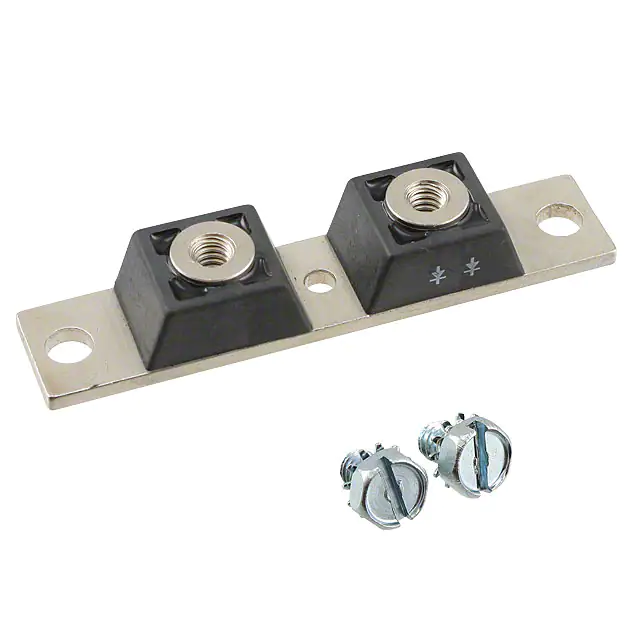

CPT30050DIODE MOD SCHOTT 50V 150A 2TOWER |
6,122 |
|
Datasheet |
- | MD3CC | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 50 V | 150A | 760 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 50 V | - | - | - | Chassis Mount | Twin Tower |
|

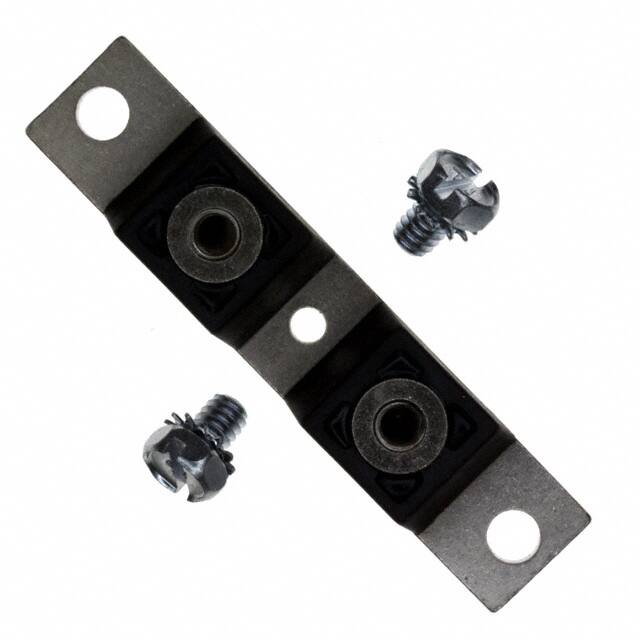

CPT600100DIODE MOD SCHOT 100V 300A 2TOWER |
4,620 |
|
Datasheet |
- | Twin Tower | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 300A | 850 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 100 V | - | - | - | Chassis Mount | Twin Tower |
|
F1842RD400DIODE MODULE GP 400V 40A MODULE |
2,733 |
|
Datasheet |
- | Module | Bulk | Active | 1 Pair Series Connection | Standard | 400 V | 40A (DC) | 1.4 V @ 120 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
VS-30CTQ080PBFDIODE ARR SCHOTT 80V 15A TO2203 |
5,805 |
|
Datasheet |
- | TO-220-3 | Tube | Discontinued at Digi-Key | 1 Pair Common Cathode | Schottky | 80 V | 15A | 860 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 80 V | -55°C ~ 175°C | - | - | Through Hole | TO-220-3 |
|
|
VS-30CTQ100PBFDIODE ARR SCHOT 100V 15A TO2203 |
2,829 |
|
Datasheet |
- | TO-220-3 | Tube | Discontinued at Digi-Key | 1 Pair Common Cathode | Schottky | 100 V | 15A | 860 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 100 V | -55°C ~ 175°C | - | - | Through Hole | TO-220-3 |
|
|
VS-40CTQ150PBFDIODE ARR SCHOT 150V 20A TO2203 |
2,728 |
|
Datasheet |
- | TO-220-3 | Tube | Discontinued at Digi-Key | 1 Pair Common Cathode | Schottky | 150 V | 20A | 930 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 150 V | -55°C ~ 175°C | - | - | Through Hole | TO-220-3 |
|
|
VS-62CTQ030PBFDIODE ARR SCHOTT 30V 30A TO2203 |
3,156 |
|
Datasheet |
- | TO-220-3 | Tube | Discontinued at Digi-Key | 1 Pair Common Cathode | Schottky | 30 V | 30A | 500 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2.5 mA @ 30 V | -65°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|
VS-30CTQ080-1PBFDIODE ARR SCHOTT 80V 15A TO2623 |
5,594 |
|
Datasheet |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Discontinued at Digi-Key | 1 Pair Common Cathode | Schottky | 80 V | 15A | 860 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 80 V | -55°C ~ 175°C | - | - | Through Hole | TO-262-3 |
|
VS-30CTQ100SPBFDIODE ARR SCHOT 100V 15A TO263AB |
8,501 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | 1 Pair Common Cathode | Schottky | 100 V | 15A | 860 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 100 V | -55°C ~ 175°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
VS-60CTQ150PBFDIODE ARR SCHOT 150V 30A TO2203 |
7,727 |
|
Datasheet |
- | TO-220-3 | Tube | Discontinued at Digi-Key | 1 Pair Common Cathode | Schottky | 150 V | 30A | 880 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 75 µA @ 150 V | -55°C ~ 175°C | - | - | Through Hole | TO-220-3 |
Diode Arrays Electronic Components
Explore Diode Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
