Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HTZ120A32KDIODE MODULE GP 32000V 2A MODULE |
8,874 |
|
Datasheet |
HTZ120A | Module | Box | Obsolete | 1 Pair Series Connection | Standard | 32000 V | 2A | 36.8 V @ 12 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 32000 V | - | - | - | Chassis Mount | Module |
|
|
HTZ280H32KDIODE MOD GP 32000V 4.7A MOD |
4,750 |
|
Datasheet |
HTZ280H | Module | Box | Obsolete | 1 Pair Series Connection | Standard | 32000 V | 4.7A | 23 V @ 12 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 32000 V | - | - | - | Chassis Mount | Module |
|
|
QRD6565001DIODE MOD GP 6500V 650A MOD |
3,128 |
|
- |
- | Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 6500 V | 650A | 1.45 V @ 500 A | Standard Recovery >500ns, > 200mA (Io) | - | 150 mA @ 6500 V | - | - | - | Chassis Mount | Module |
|
MSCDC450A120AGDIODE MODULE SIC 1200V 450A SP6 |
7,392 |
|
Datasheet |
- | Module | Tube | Active | 1 Pair Series Connection | SiC (Silicon Carbide) Schottky | 1200 V | 450A | 1.8 V @ 450 A | No Recovery Time > 500mA (Io) | 0 ns | 1.8 mA @ 1200 V | -40°C ~ 175°C | - | - | Chassis Mount | SP6 |
|
|
PN410611DIODE MOD GP 600V 1200A POWRBLOK |
9,576 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 600 V | 1200A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PN410811DIODE MOD GP 800V 1200A POWRBLOK |
7,704 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 800 V | 1200A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 800 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PN411011DIODE MODULE GP 1000V POWRBLOK |
7,792 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 1000 V | 1200A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1000 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PN411211DIODE MODULE GP 1200V POWRBLOK |
5,847 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 1200 V | 1200A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
HTZ120A51KDIODE MODULE GP 51000V 2A MODULE |
3,862 |
|
Datasheet |
HTZ120A | Module | Box | Obsolete | 1 Pair Series Connection | Standard | 51000 V | 2A | 36.8 V @ 12 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 51000 V | - | - | - | Chassis Mount | Module |
|
|
HTZ270H40KDIODE MOD GP 40000V 3.4A MOD |
7,767 |
|
Datasheet |
HTZ270H | Module | Box | Obsolete | 1 Pair Series Connection | Standard | 40000 V | 3.4A | 46 V @ 12 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 40000 V | - | - | - | Chassis Mount | Module |
|
|
PD410611DIODE MOD GP 600V 1100A POWRBLOK |
9,250 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 600 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 600 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
HTZ270H48KDIODE MOD GP 48000V 3.4A MOD |
4,950 |
|
Datasheet |
HTZ270H | Module | Box | Obsolete | 1 Pair Series Connection | Standard | 48000 V | 3.4A | 46 V @ 12 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 48000 V | - | - | - | Chassis Mount | Module |
|

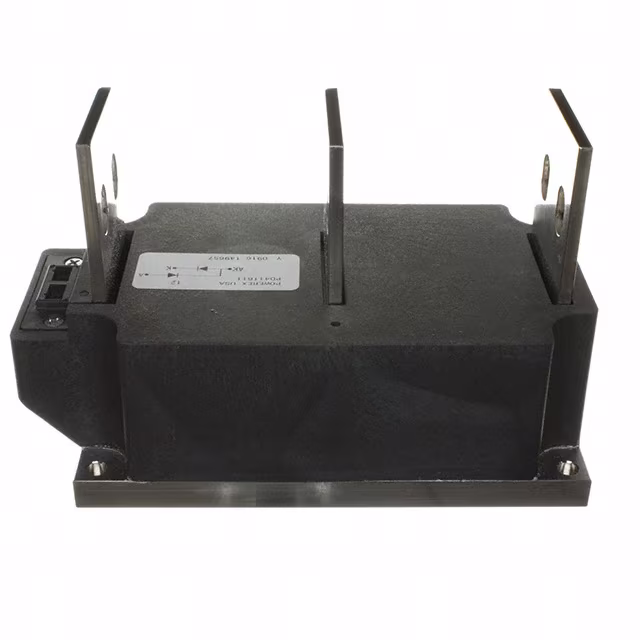

PD411611DIODE MODULE GP 1600V POWRBLOK |
3,002 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 1600 V | 1100A | - | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PD411811DIODE MODULE GP 1800V POWRBLOK |
6,160 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 1800 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1800 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
HTZ270H56KDIODE MOD GP 56000V 3.4A MOD |
3,794 |
|
Datasheet |
HTZ270H | Module | Box | Obsolete | 1 Pair Series Connection | Standard | 56000 V | 3.4A | 46 V @ 12 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 56000 V | - | - | - | Chassis Mount | Module |
|
|
PN412411DIODE MODULE GP 2400V POWRBLOK |
6,493 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 2400 V | 1200A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 2400 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PN412611DIODE MODULE GP 2600V POWRBLOK |
3,080 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 2600 V | 1200A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 2600 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PD412211DIODE MODULE GP 2200V POWRBLOK |
9,922 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 2200 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 2200 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
PN413610DIODE MODULE GP 3600V POWRBLOK |
6,371 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 3600 V | 1100A | 1.35 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 25 µs | 200 mA @ 3600 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
HTZ270H64KDIODE MOD GP 64000V 3.4A MOD |
8,090 |
|
Datasheet |
HTZ270H | Module | Box | Obsolete | 1 Pair Series Connection | Standard | 64000 V | 3.4A | 46 V @ 12 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 64000 V | - | - | - | Chassis Mount | Module |
Diode Arrays Electronic Components
Explore Diode Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
