Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MD18200S-BM2MMDIODE MODULE GP 1800V 200A S3 |
7,228 |
|
Datasheet |
- | S-3 Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1800 V | 200A | 1.5 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 1800 V | -40°C ~ 150°C | - | - | Chassis Mount | S3 |
|
VS-VSKJS409/150DIODE MOD SCHOTTKY 150V ADDAPAK |
2,249 |
|
Datasheet |
- | ADD-A-PAK (3) | Bulk | Active | 1 Pair Common Anode | Schottky | 150 V | 200A | 1.03 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 150 V | -55°C ~ 175°C | - | - | Chassis Mount | ADD-A-PAK® |
|

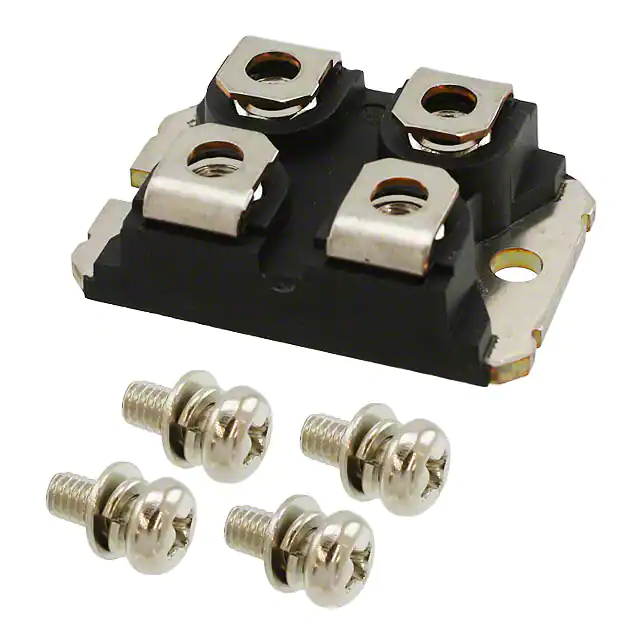

MBR40045CTSDIODE MOD SCHOTT 45V 400A SOT227 |
3,561 |
|
Datasheet |
- | SOT-227-4 | Bulk | Obsolete | 2 Independent | Schottky | 45 V | 400A (DC) | 1.2 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 36 V | -40°C ~ 175°C | - | - | Screw Mount | SOT-227 |
|
MBRT30080DIODE MOD SCHOTT 80V 150A 3TOWER |
9,059 |
|
Datasheet |
- | Three Tower | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 150A | 880 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT30080RDIODE MOD SCHOTT 80V 150A 3TOWER |
8,610 |
|
Datasheet |
- | Three Tower | Bulk | Obsolete | 1 Pair Common Anode | Schottky | 80 V | 150A | 880 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MUR20005CTDIODE MODULE GP 50V 100A 2TOWER |
5,876 |
|
Datasheet |
- | Twin Tower | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 50 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MUR20005CTRDIODE MODULE GP 50V 100A 2TOWER |
9,550 |
|
Datasheet |
- | Twin Tower | Bulk | Obsolete | 1 Pair Common Anode | Standard | 50 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MSRT200100ADDIODE MOD GP 1000V 200A 3TOWER |
4,120 |
|
- |
- | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1000 V | 200A | 1.1 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT200120ADDIODE MOD GP 1200V 200A 3TOWER |
5,953 |
|
- |
- | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1200 V | 200A | 1.1 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1200 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT200140ADDIODE MOD GP 1400V 200A 3TOWER |
7,405 |
|
- |
- | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1400 V | 200A | 1.1 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1400 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT200160ADDIODE MOD GP 1600V 200A 3TOWER |
9,168 |
|
- |
- | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1600 V | 200A | 1.1 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1600 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT20060ADDIODE MODULE GP 600V 200A 3TOWER |
5,623 |
|
- |
- | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 600 V | 200A | 1.1 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 600 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT20080ADDIODE MODULE GP 800V 200A 3TOWER |
6,612 |
|
- |
- | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 800 V | 200A | 1.1 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 800 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
M50100CC600DIODE MODULE GP 600V 100A MODULE |
6,191 |
|
Datasheet |
- | Module | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 100A | 1.2 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
FST16045LDIODE MOD SCHOTT 45V 80A TO249AB |
9,120 |
|
- |
- | TO-249AB | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 80A | 600 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 45 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
|
MBRT60020LDIODE MOD SCHOTT 20V 300A 3TOWER |
9,028 |
|
- |
- | Three Tower | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 20 V | 300A | 580 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT60020RLDIODE MOD SCHOTT 20V 300A 3TOWER |
7,778 |
|
- |
- | Three Tower | Bulk | Obsolete | 1 Pair Common Anode | Schottky | 20 V | 300A | 580 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT60030LDIODE MOD SCHOTT 30V 300A 3TOWER |
9,810 |
|
- |
- | Three Tower | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 300A | 580 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 30 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT60030RLDIODE MOD SCHOTT 30V 300A 3TOWER |
7,714 |
|
- |
- | Three Tower | Bulk | Obsolete | 1 Pair Common Anode | Schottky | 30 V | 300A | 580 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 30 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT60035LDIODE MOD SCHOTT 35V 300A 3TOWER |
7,142 |
|
- |
- | Three Tower | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 300A | 600 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 35 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
