Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
286-891DIODE MODULE GEN PURP 4000V 6.3A |
5,785 |
|
Datasheet |
- | Module | Box | Active | 1 Pair Series Connection | Standard | 4000 V | 6.3A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -25°C ~ 40°C | - | - | Socketable | - |
|

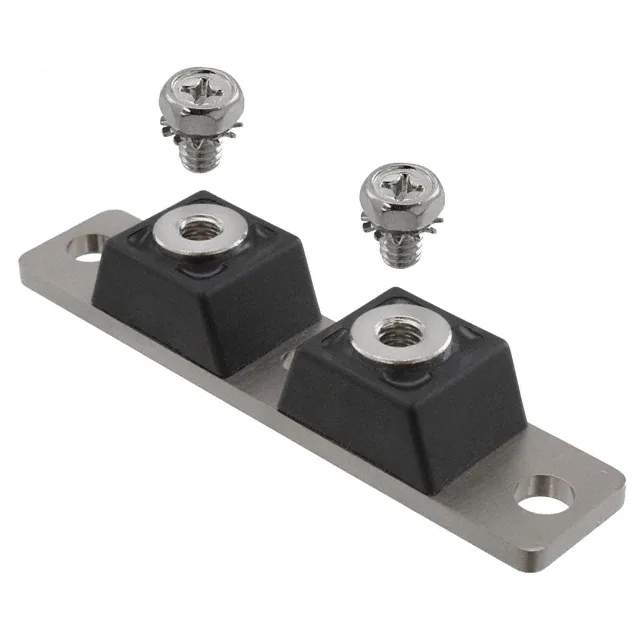

MBR12040CTDIODE MOD SCHOTT 40V 120A 2TOWER |
8,644 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 40 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|

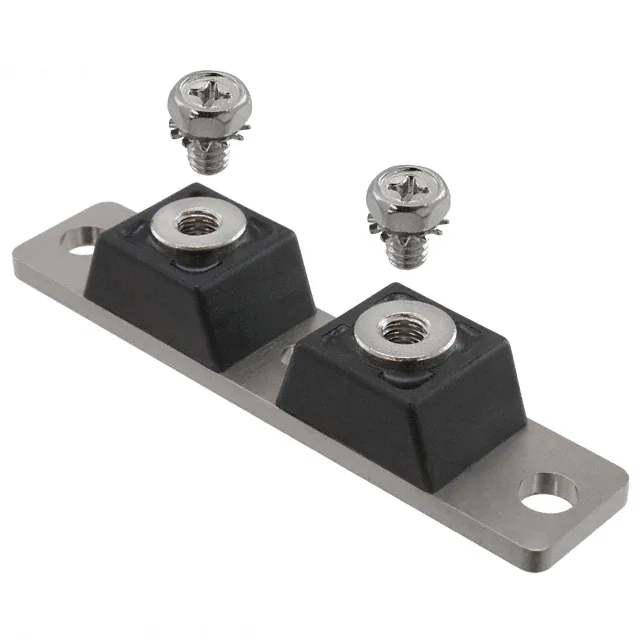

MBR12040CTRDIODE MOD SCHOTT 40V 120A 2TOWER |
7,868 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 40 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR12060CTDIODE MOD SCHOTT 60V 120A 2TOWER |
3,406 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 60 V | 120A (DC) | 750 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR12045CTDIODE MOD SCHOTT 45V 120A 2TOWER |
7,426 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 120A (DC) | 650 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR12045CTRDIODE MOD SCHOTT 45V 120A 2TOWER |
8,915 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky, Reverse Polarity | 45 V | 120A (DC) | 650 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR12060CTRDIODE MOD SCHOTT 60V 120A 2TOWER |
4,296 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 60 V | 120A (DC) | 750 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR12020CTDIODE MOD SCHOTT 20V 120A 2TOWER |
8,737 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 20 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR12020CTRDIODE MOD SCHOTT 20V 120A 2TOWER |
4,798 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 20 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR12030CTDIODE MOD SCHOTT 30V 120A 2TOWER |
3,779 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 30 V | 120A (DC) | 650 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR12030CTRDIODE MOD SCHOTT 30V 120A 2TOWER |
2,503 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 30 V | 120A (DC) | 650 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR12035CTDIODE MOD SCHOTT 35V 120A 2TOWER |
7,175 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 35 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR120100CTDIODE MOD SCHOT 100V 120A 2TOWER |
2,369 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 100 V | 120A (DC) | 840 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR120100CTRDIODE MOD SCHOT 100V 120A 2TOWER |
4,320 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 100 V | 120A (DC) | 840 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
MBR12035CTRDIODE MOD SCHOTT 35V 120A 2TOWER |
4,495 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 35 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR12080CTDIODE MOD SCHOTT 80V 120A 2TOWER |
7,514 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 80 V | 120A (DC) | 840 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR12080CTRDIODE MOD SCHOTT 80V 120A 2TOWER |
6,086 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 80 V | 120A (DC) | 840 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
DSEC240-04ADIODE MOD GP 400V 120A SOT227B |
5,888 |
|
Datasheet |
HiPerFRED™ | SOT-227-4, miniBLOC | Tube | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 120A | 1.07 V @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 mA @ 400 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227B |
;;.jpg)
|
409DMQ135DIODE MOD SCHOTT 135V 200A PRM4 |
9,182 |
|
Datasheet |
- | PRM4 | Bulk | Active | 1 Pair Series Connection | Schottky | 135 V | 200A | 1.03 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 135 V | -55°C ~ 150°C | - | - | Chassis Mount | PRM4 (Isolated) |
|
406CNQ200DIODE MODULE SCHOTTKY 200V PRM4 |
4 |
|
Datasheet |
- | PRM4 | Bulk | Active | 1 Pair Common Cathode | Schottky | 200 V | - | 670 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 200 V | -55°C ~ 175°C | - | - | Chassis Mount | PRM4 (Isolated) |
