Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

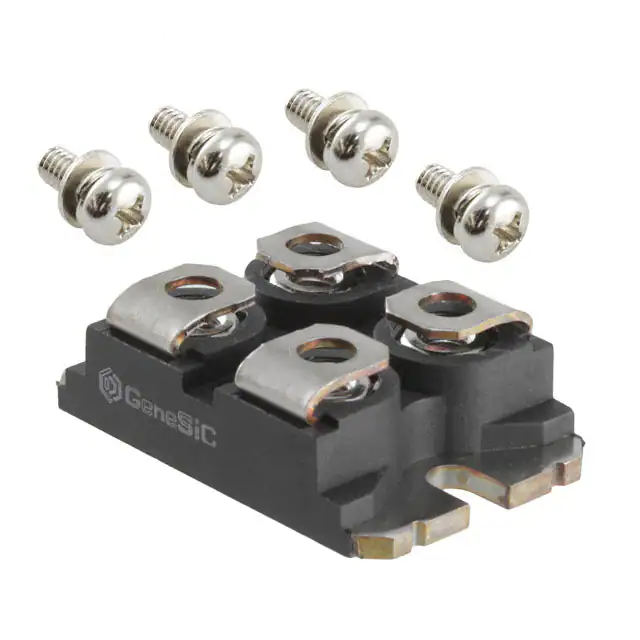

MUR2X120A04DIODE MODULE GP 400V 120A SOT227 |
8,080 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Standard | 400 V | 120A | 1.3 V @ 120 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 400 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
|
MUR2X120A06DIODE MODULE GP 600V 120A SOT227 |
4,768 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Standard | 600 V | 120A | 1.3 V @ 120 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 600 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
VS-401CNQ040PBFDIODE MOD SCHOTT 40V 40A TO244AB |
5,600 |
|
Datasheet |
- | TO-244AB | Tray | Active | 1 Pair Common Cathode | Schottky | 40 V | 40A | 590 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 40 V | 150°C (Max) | - | - | Chassis Mount | TO-244AB |
|
VS-HFA70EA120DIODE MODULE GP 1200V 35A SOT227 |
3,696 |
|
Datasheet |
HEXFRED® | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Standard | 1200 V | 35A (DC) | 3 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 145 ns | 75 µA @ 1200 V | - | - | - | Chassis Mount | SOT-227 |
|
|
FST30050DIODE MOD SCHOTT 50V 150A TO-244 |
7,682 |
|
Datasheet |
- | TO-244AB | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 50 V | 150A | 760 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 50 V | - | - | - | Screw Mount | TO-244 |
|
MD16130S-BM2MMDIODE MODULE GP 1600V 130A S3 |
9,320 |
|
Datasheet |
- | S-3 Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1600 V | 130A | 1.5 V @ 400 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | S3 |
|
|
IRKD166/16DIODE MOD GP 1600V 165A MOD |
5,558 |
|
Datasheet |
- | INT-A-PAK (3) | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1600 V | 165A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | - | - | - | Chassis Mount | Module |
|
|
IRKJ166/16DIODE MOD GP 1600V 165A MOD |
5,827 |
|
Datasheet |
- | INT-A-PAK (3) | Bulk | Obsolete | 1 Pair Common Anode | Standard | 1600 V | 165A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | - | - | - | Chassis Mount | Module |
|
APT2X40DC60JDIODE MOD SIC 600V 40A SOT-227 |
2,465 |
|
- |
- | SOT-227-4, miniBLOC | Bulk | Obsolete | 2 Independent | SiC (Silicon Carbide) Schottky | 600 V | 40A | 1.8 V @ 40 A | No Recovery Time > 500mA (Io) | 0 ns | 800 µA @ 600 V | - | - | - | Chassis Mount | SOT-227 |
|
|
MDD142-18N1DIODE MODULE GP 1800V 165A Y4-M6 |
8,841 |
|
Datasheet |
- | Y4-M6 | Box | Active | 1 Pair Series Connection | Standard | 1800 V | 165A | 1.3 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1800 V | -40°C ~ 150°C | - | - | Chassis Mount | Y4-M6 |
|
|
IRKC236/04DIODE MODULE GP 400V 230A MODULE |
2,813 |
|
Datasheet |
- | INT-A-PAK (3) | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 230A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 400 V | - | - | - | Chassis Mount | Module |
|
HFA240NJ40DDIODE MOD GP 400V 244A TO244AB |
9,544 |
|
Datasheet |
HEXFRED® | TO-244AB Isolated Tab | Bulk | Obsolete | 1 Pair Series Connection | Standard | 400 V | 244A (DC) | 1.5 V @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 9 µA @ 400 V | - | - | - | Chassis Mount | TO-244AB (Isolated) |
|
|
HFA240NJ40CDIODE MOD GP 400V 244A TO-244AB |
5,279 |
|
Datasheet |
HEXFRED® | TO-244AB | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 244A (DC) | 1.5 V @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 9 µA @ 400 V | - | - | - | Chassis Mount | TO-244AB |
|
MBR2X120A060DIODE MOD SCHOTT 60V 120A SOT227 |
3,765 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Schottky | 60 V | 120A | 750 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 60 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|
|
MBR2X120A080DIODE MOD SCHOTT 80V 120A SOT227 |
8,989 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Schottky | 80 V | 120A | 840 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 80 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|
|
MBR2X120A100DIODE MOD SCHOT 100V 120A SOT227 |
7,651 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Schottky | 100 V | 120A | 840 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|
|
MBR2X120A120DIODE MOD SCHOT 120V 120A SOT227 |
9,287 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Schottky | 120 V | 120A | 880 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 120 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|
|
MBR2X120A150DIODE MOD SCHOT 150V 120A SOT227 |
5,483 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Schottky | 150 V | 120A | 880 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 150 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|
|
MBR2X120A180DIODE MOD SCHOT 180V 120A SOT227 |
5,556 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Schottky | 180 V | 120A | 920 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 180 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|
|
MBR2X120A200DIODE MOD SCHOT 200V 120A SOT227 |
9,328 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Schottky | 200 V | 120A | 920 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 200 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
Diode Arrays Electronic Components
Explore Diode Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
