Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FML-4204SDIODE ARRAY GP 400V 20A TO-3PF |
3,765 |
|
Datasheet |
- | TO-3P-3 Full Pack | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 20A | 1.3 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 50 µA @ 400 V | -40°C ~ 150°C | - | - | Through Hole | TO-3PF |
|
DHG40C600PBDIODE ARRAY GP 600V 20A TO-220-3 |
8,974 |
|
- |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 20A | 2.32 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 30 µA @ 600 V | -55°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|
VS-40CPQ050-N3DIODE ARR SCHOTT 50V 40A TO247AC |
7,576 |
|
Datasheet |
- | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 50 V | 40A | 680 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.7 mA @ 50 V | 150°C (Max) | - | - | Through Hole | TO-247AC |
|
20CTQ045SDIODE ARR SCHOTT 45V 10A TO263AB |
8,959 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 10A | 640 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 45 V | -55°C ~ 175°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
MBRB2545CTTRLDIODE ARR SCHOTT 45V 15A TO263AB |
4,066 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 15A | 820 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | -65°C ~ 150°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
MBRB2545CTDIODE ARR SCHOTT 45V 15A TO263AB |
7,455 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 15A | 820 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | -65°C ~ 150°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
MBRB2545CTTRRDIODE ARR SCHOTT 45V 15A TO263AB |
7,075 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 15A | 820 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | -65°C ~ 150°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
SBR60A60CTDIODE ARRAY SBR 60V 30A TO-220-3 |
3,012 |
|
Datasheet |
SBR® | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Super Barrier | 60 V | 30A | 650 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 60 V | -65°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|
STPS61170CWLYDIODE ARRAY SCHOT 170V 30A TO247 |
7,833 |
|
Datasheet |
ECOPACK®2 | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 170 V | 30A | 840 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 60 µA @ 170 V | 175°C (Max) | Automotive | AEC-Q101 | Through Hole | TO-247 Long Leads |
|
25CTQ035SDIODE ARR SCHOTT 35V 15A TO263AB |
4,133 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 15A | 560 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.75 mA @ 35 V | -55°C ~ 175°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
SBG1630CT-T-FDIODE ARR SCHOTT 30V 16A TO263AB |
3,165 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 16A | 550 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 30 V | -65°C ~ 125°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
V10D202C-M3/IDIODE ARR SCHOTT 200V 5A TO263AC |
9,425 |
|
Datasheet |
eSMP®, TMBS® | TO-263-3, D2PAK (2 Leads + Tab), Variant | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 200 V | 5A | 900 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 200 V | -40°C ~ 175°C | - | - | Surface Mount | TO-263AC (SMPD) |
|
FMW-4306DIODE ARR SCHOT 60V 15A TO220F3 |
3,630 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Active | 1 Pair Common Cathode | Schottky | 60 V | 15A | 700 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 60 V | -40°C ~ 150°C | - | - | Through Hole | TO-220F-3 |
|
|
MBRB3030CTT4DIODE ARRAY SCHOTT 30V 15A D2PAK |
3,877 |
|
Datasheet |
SWITCHMODE™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 15A | 540 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 600 µA @ 30 V | -55°C ~ 175°C | - | - | Surface Mount | D2PAK |
|

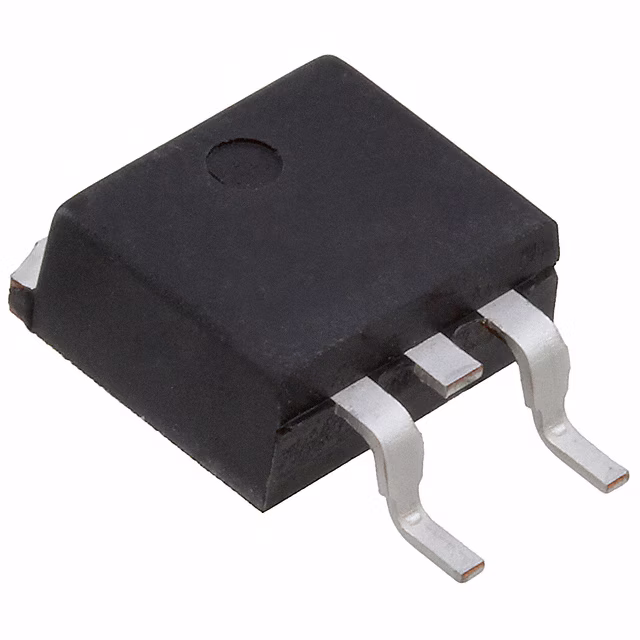

LQA40B200CDIODE ARRAY GP 200V 20A TO-263AB |
6,497 |
|
Datasheet |
Qspeed™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 200 V | 20A | 1.2 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 17 ns | 500 µA @ 200 V | -55°C ~ 150°C | - | - | Surface Mount | TO-263AB |
|
42CTQ030DIODE ARR SCHOTT 30V 20A TO2203 |
2,852 |
|
- |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 20A | 480 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 30 V | -55°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|
STPS10L60CG-TRDIODE ARRAY SCHOTT 60V 5A D2PAK |
8,772 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 5A | 550 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 220 µA @ 60 V | 150°C (Max) | - | - | Surface Mount | D2PAK |
|
DSEC30-02ADIODE ARRAY GP 200V 15A TO-247AD |
9,305 |
|
Datasheet |
HiPerFRED™ | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 15A | 1.05 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 100 µA @ 200 V | -55°C ~ 175°C | - | - | Through Hole | TO-247AD |
|
|
MBRB3045CTDIODE ARR SCHOTT 45V 15A TO263AB |
2,207 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 15A | 760 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 150°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
MBRB3045CTTRLDIODE ARR SCHOTT 45V 15A TO263AB |
5,120 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 15A | 600 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 150°C | - | - | Surface Mount | TO-263AB (D2PAK) |
