Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBRL30300CT-BPDIODE ARR SCHOT 300V 30A TO220AB |
6,869 |
|
Datasheet |
- | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 300 V | 30A | 1.1 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 300 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
TSD10H100CWDIODE ARRAY SCHOT 10A TO263AB |
3,142 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
TSD10H120CWDIODE ARRAY SCHOT 10A TO263AB |
9,103 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
TSD10H150CWDIODE ARRAY 10A TO263AB |
2,091 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
TSD10H200CWDIODE ARRAY SCHOT 10A TO263AB |
5,148 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | TO-263AB (D2PAK) |
|
V20PW12CHM3/IDIODE ARR SCHOTTKY 120V SLIMDPAK |
9,465 |
|
Datasheet |
eSMP®, TMBS® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 120 V | 10A | 920 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 700 µA @ 120 V | -40°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SlimDPAK |
|
15CTQ045SDIODE ARR SCHOT 45V 7.5A TO263AB |
5,881 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 7.5A | 550 mV @ 7.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 45 V | -55°C ~ 150°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
15CTQ045STRLDIODE ARR SCHOT 45V 7.5A TO263AB |
7,011 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 7.5A | 550 mV @ 7.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 45 V | -55°C ~ 150°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
TST40L60CWDIODE ARR SCHOTT 60V 40A TO220AB |
7,413 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 40A | 630 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
30CTH02-1DIODE ARRAY GP 200V 15A TO-262-3 |
6,031 |
|
Datasheet |
FRED Pt® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 15A | 1.05 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 200 V | -65°C ~ 175°C | - | - | Through Hole | TO-262-3 |
|
|
30CTH02SDIODE ARRAY GP 200V 15A TO263AB |
5,919 |
|
Datasheet |
FRED Pt® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 15A | 1.05 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 200 V | -65°C ~ 175°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
SBL2050CTDIODE ARR SCHOTT 50V 20A TO2203 |
9,502 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 50 V | 20A | 750 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 50 V | -65°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|

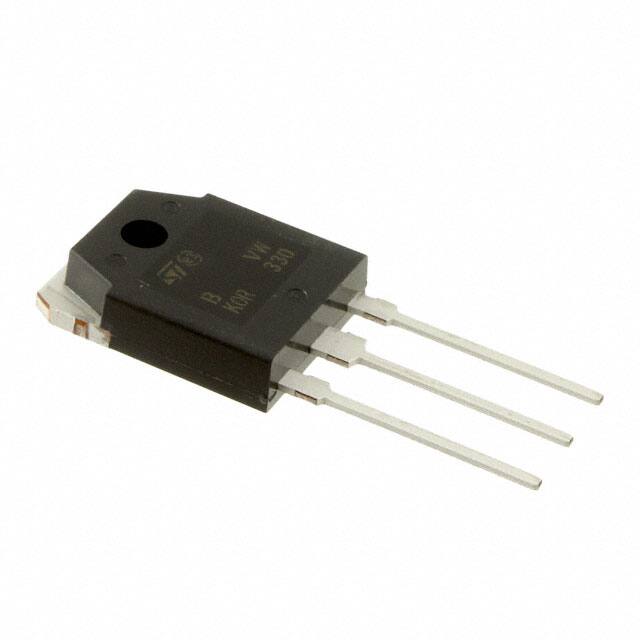

STTH30AC06CPDIODE ARRAY GP 600V 15A TO-3PF |
3,752 |
|
Datasheet |
- | TO-3PF | Tube | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 15A | 1.95 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 55 ns | 10 µA @ 600 V | -65°C ~ 175°C | - | - | Through Hole | TO-3PF |
|
MURF1620CTDIODE ARRAY GP 200V 8A TO-220FP |
4,257 |
|
Datasheet |
SWITCHMODE™ | TO-220-3 Full Pack | Tube | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 8A | 975 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 200 V | -65°C ~ 150°C | - | - | Through Hole | TO-220FP |
|
|
VS-12CWQ04FNTRPBFDIODE ARRAY SCHOTTKY 40V 6A DPAK |
8,027 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 6A | 530 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 40 V | -55°C ~ 150°C | - | - | Surface Mount | TO-252AA (DPAK) |
|
MBR1050DC_R2_00001DIODE ARRAY SCHOT 50V 10A TO-263 |
9,367 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 50 V | 10A | 750 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 50 V | -65°C ~ 175°C | - | - | Surface Mount | TO-263 |
|
|
MBR16100DC_R2_00001DIODE ARR SCHOTT 100V 16A TO-263 |
4,751 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 100 V | 16A | 800 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 100 V | -65°C ~ 175°C | - | - | Surface Mount | TO-263 |
|
|
MBR1040DC_R2_00001DIODE ARRAY SCHOT 40V 10A TO-263 |
9,658 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 40 V | 10A | 700 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 40 V | -55°C ~ 150°C | - | - | Surface Mount | TO-263 |
|
MBRB20100CTT4DIODE ARRAY SCHOT 100V 10A D2PAK |
8,035 |
|
Datasheet |
SWITCHMODE™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 10A | 850 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -65°C ~ 175°C | - | - | Surface Mount | D2PAK |
|
STPS40SM80CFPDIODE ARR SCHOTT 80V TO-220FPAB |
9,203 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 20A | 800 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 80 V | 175°C (Max) | - | - | Through Hole | TO-220FPAB |
