Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSSK10-018ADIODE ARR SCHOTT 180V 5A TO2203 |
8,211 |
|
Datasheet |
- | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 180 V | 5A | 780 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 180 V | -55°C ~ 175°C | - | - | Through Hole | TO-220-3 |
|
MURB1620CT-1DIODE ARRAY GP 200V 8A TO-262-3 |
6,312 |
|
Datasheet |
FRED Pt® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 8A | 975 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 200 V | -65°C ~ 175°C | - | - | Through Hole | TO-262-3 |
|
STPS40100CTDIODE ARR SCHOTT 100V 20A TO-220 |
4,929 |
|
- |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 20A (DC) | - | Fast Recovery =< 500ns, > 200mA (Io) | - | - | - | - | - | Through Hole | TO-220 |
|
STPS40120CRDIODE ARRAY SCHOT 120V 20A I2PAK |
3,706 |
|
Datasheet |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 20A | 900 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 25 µA @ 120 V | 175°C (Max) | - | - | Through Hole | I2PAK |
|
MBRB30H100CT-E3/45DIODE ARR SCHOT 100V 15A TO263AB |
9,746 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 15A | 820 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 100 V | -65°C ~ 175°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
SBR40150CTFPDIODE ARR SBR 150V 20A ITO220AB |
3,614 |
|
Datasheet |
SBR® | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | 1 Pair Common Cathode | Super Barrier | 150 V | 20A | 900 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -65°C ~ 175°C | - | - | Through Hole | ITO-220AB |
|
SBR20U100CTEDIODE ARRAY SBR 100V 10A TO-262 |
2,831 |
|
Datasheet |
SBR® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Super Barrier | 100 V | 10A | 700 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 100 V | -65°C ~ 175°C | - | - | Through Hole | TO-262 |
|
VS-16CTQ100PBFDIODE ARR SCHOTT 100V 8A TO2203 |
9,312 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 8A | 720 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 100 V | -55°C ~ 175°C | - | - | Through Hole | TO-220-3 |
|
FMEN-220BDIODE ARR SCHOTT 150V 20A TO220F |
2 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 150 V | 20A | 920 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 150 V | -40°C ~ 150°C | - | - | Through Hole | TO-220F |
|
|
VT60M45C-M3/4WDIODE ARR SCHOTT 45V 30A TO220AB |
4,069 |
|
Datasheet |
TMBS® | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 45 V | 30A | 680 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 450 µA @ 100 V | -40°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-220AB |
|
MBR40150PT_T0_00001DIODE ARR SCHOT 150V 40A TO247AD |
6,410 |
|
Datasheet |
MBR4040PT | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 150 V | 40A | 900 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 150 V | -65°C ~ 175°C | - | - | Through Hole | TO-247AD (TO-3P) |
|
VS-12CWQ06FNHM3DIODE ARRAY SCHOTTKY 60V 6A DPAK |
9,842 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | 1 Pair Common Cathode | Schottky | 60 V | 6A | 790 mV @ 12 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 60 V | 150°C (Max) | Automotive | AEC-Q101 | Surface Mount | TO-252AA (DPAK) |
|
|
VS-12CWQ06FNTRHM3DIODE ARRAY SCHOTTKY 60V 6A DPAK |
3,983 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 60 V | 6A | 610 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 60 V | 150°C (Max) | Automotive | AEC-Q101 | Surface Mount | TO-252AA (DPAK) |
|
|
VS-12CWQ06FNTRLHM3DIODE ARRAY SCHOTTKY 60V 6A DPAK |
4,387 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 60 V | 6A | 790 mV @ 12 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 60 V | 150°C (Max) | Automotive | AEC-Q101 | Surface Mount | TO-252AA (DPAK) |
|
|
VS-12CWQ06FNTRRHM3DIODE ARRAY SCHOTTKY 60V 6A DPAK |
7,988 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 60 V | 6A | 790 mV @ 12 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 60 V | 150°C (Max) | Automotive | AEC-Q101 | Surface Mount | TO-252AA (DPAK) |
|
VS-MBR3035WTPBFDIODE ARR SCHOTT 35V 15A TO247AC |
8,780 |
|
Datasheet |
- | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 15A | 760 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 35 V | -65°C ~ 150°C | - | - | Through Hole | TO-247AC |
.jpg)
|

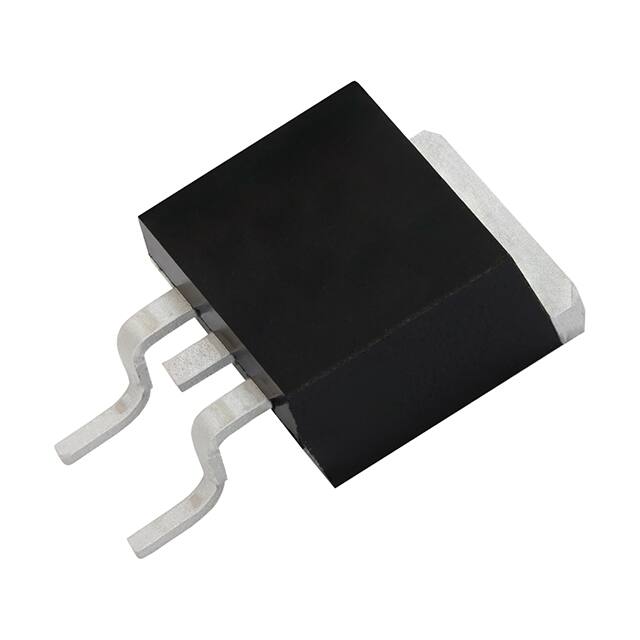

VS-25CTQ045SLHM3DIODE ARR SCHOTT 45V 30A TO263AB |
9,937 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 45 V | 30A | 710 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.75 mA @ 45 V | -55°C ~ 150°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
FEPB16FTHE3_A/PDIODE ARRAY GP 300V 8A TO263AB |
5,346 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Standard | 300 V | 8A | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 300 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
|
|
FEPB16GTHE3_A/PDIODE ARRAY GP 400V 8A TO263AB |
2,919 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 8A | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 400 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
|
|
FEPB16HTHE3_A/PDIODE ARRAY GP 500V 8A TO263AB |
4,556 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Standard | 500 V | 8A | 1.5 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 500 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
Diode Arrays Electronic Components
Explore Diode Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
