Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSP25-12ADIODE ARRAY GP 1200V 28A TO247AD |
1,410 |
|
Datasheet |
- | TO-247-3 | Tube | Active | 1 Pair Series Connection | Standard | 1200 V | 28A | 1.6 V @ 55 A | Standard Recovery >500ns, > 200mA (Io) | - | 2 mA @ 1200 V | -40°C ~ 180°C | - | - | Through Hole | TO-247AD |
|
STPS80H100CWLYDIODE ARRAY SCHOT 100V 40A TO247 |
301 |
|
Datasheet |
- | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 100 V | 40A | 820 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 µA @ 100 V | -40°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-247 Long Leads |
|
VS-63CPQ100-N3DIODE ARR SCHOT 100V 30A TO247AC |
362 |
|
Datasheet |
- | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 100 V | 30A | 920 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 100 V | 175°C (Max) | - | - | Through Hole | TO-247AC |
|
|
VS-60CPQ150-N3DIODE ARR SCHOT 150V 30A TO247AC |
490 |
|
Datasheet |
- | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 150 V | 30A | 830 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -55°C ~ 175°C | - | - | Through Hole | TO-247AC |
|
STPSC10TH13TIDIODE ARRAY SIC 650V 10A TO220AB |
859 |
|
Datasheet |
- | TO-220-3 | Tube | Active | 1 Pair Series Connection | SiC (Silicon Carbide) Schottky | 650 V | 10A | 1.75 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 650 V | 150°C (Max) | - | - | Through Hole | TO-220AB Insulated |
|
STTH6002CPIDIODE ARRAY GP 200V 30A TOP-3I |
594 |
|
Datasheet |
- | TOP-3 Insulated | Tube | Active | 1 Pair Common Cathode | Standard | 200 V | 30A | 1.05 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 27 ns | 30 µA @ 200 V | 175°C (Max) | - | - | Through Hole | TOP-3I |
|
|
DSEC60-06ADIODE ARRAY GP 600V 30A TO-247AD |
1,244 |
|
Datasheet |
HiPerFRED™ | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Standard | 600 V | 30A | 1.6 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 250 µA @ 600 V | -55°C ~ 175°C | - | - | Through Hole | TO-247AD |
|
DSP45-16ARDIODE ARRAY GP 1600V ISOPLUS247 |
817 |
|
Datasheet |
- | TO-247-3 | Tube | Active | 1 Pair Series Connection | Standard | 1600 V | 43A | 1.23 V @ 40 A | Standard Recovery >500ns, > 200mA (Io) | - | 3 mA @ 1600 V | -40°C ~ 175°C | - | - | Through Hole | ISOPLUS247™ |
|
C3D20060DDIODE ARR SIC 600V 27.5A TO247-3 |
213 |
|
Datasheet |
Z-Rec® | TO-247-3 | Tube | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 600 V | 27.5A (DC) | 1.8 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 50 µA @ 600 V | -55°C ~ 175°C | - | - | Through Hole | TO-247-3 |
|
|
DSEC60-12ADIODE ARRAY GP 1200V 30A TO247AD |
341 |
|
Datasheet |
HiPerFRED™ | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Standard | 1200 V | 30A | 2.74 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 40 ns | 250 µA @ 1200 V | -55°C ~ 175°C | - | - | Through Hole | TO-247AD |
|
|
VS-HFA50PA60C-N3DIODE ARRAY GP 600V 25A TO-247AC |
511 |
|
Datasheet |
- | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Standard | 600 V | 25A | 1.7 V @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | 23 ns | 20 µA @ 600 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-247AC |
|
E3D30065DDIODE ARRAY SIC 650V 42A TO247-3 |
425 |
|
Datasheet |
E-Series | TO-247-3 | Tube | Last Time Buy | 1 Pair Common Anode | SiC (Silicon Carbide) Schottky | 650 V | 42A | 1.8 V @ 16 A | No Recovery Time > 500mA (Io) | 0 ns | 95 µA @ 650 V | -55°C ~ 175°C | Automotive | - | Through Hole | TO-247-3 |
|
STPSC40H12CWLDIODE ARR SIC 1200V 38A TO247-3 |
408 |
|
Datasheet |
ECOPACK® | TO-247-3 | Tube | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 1200 V | 38A | 1.5 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 120 µA @ 1200 V | -40°C ~ 175°C | - | - | Through Hole | TO-247-3 |
|
|
C4D20120DDIODE ARR SIC 1200V 34A TO247-3 |
530 |
|
Datasheet |
Z-Rec® | TO-247-3 | Tube | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 1200 V | 34A (DC) | 1.8 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | -55°C ~ 175°C | - | - | Through Hole | TO-247-3 |
|
82CNQ030SLDIODE ARR SCHOTT 30V 40A PRM2-SL |
2,215 |
|
Datasheet |
- | PRM2-SL | Bulk | Active | 1 Pair Common Cathode | Schottky | 30 V | 40A | 550 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 30 V | -55°C ~ 150°C | - | - | Surface Mount | PRM2-SL |
|
GD2X30MPS12DDIODE ARR SIC 1200V 55A TO247-3 |
569 |
|
Datasheet |
SiC Schottky MPS™ | TO-247-3 | Tube | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 1200 V | 55A (DC) | 1.8 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 µA @ 1200 V | -55°C ~ 175°C | - | - | Through Hole | TO-247-3 |
|
VS-U5FH120FA120DIODE MODULE GP 1200V 60A SOT227 |
476 |
|
Datasheet |
FRED Pt® | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 1200 V | 60A (DC) | 2.5 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 71 ns | 80 µA @ 1200 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|

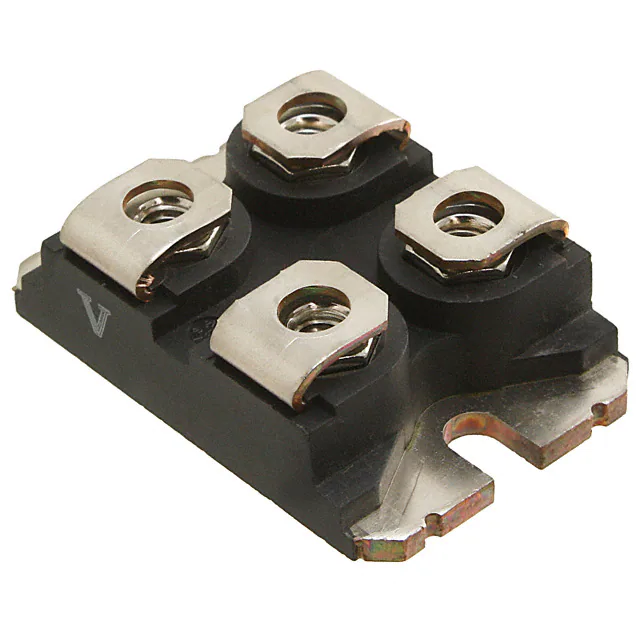

VS-UFB80FA20DIODE MODULE GP 200V 40A SOT-227 |
168 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Standard | 200 V | 40A (DC) | 1.08 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 34 ns | 50 µA @ 200 V | - | - | - | Chassis Mount | SOT-227 |
|
83CNQ100DIODE MODULE SCHOT 100V 40A PRM2 |
1,254 |
|
Datasheet |
- | PRM2 | Bulk | Active | 1 Pair Common Cathode | Schottky | 100 V | 40A | 1 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 100 V | -55°C ~ 175°C | - | - | Chassis Mount | PRM2 |
|
|
85CNQ015DIODE MODULE SCHOTT 15V 40A PRM2 |
532 |
|
Datasheet |
- | PRM2 | Bulk | Active | 1 Pair Common Cathode | Schottky | 15 V | 40A | 450 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 15 V | -55°C ~ 125°C | - | - | Chassis Mount | PRM2 |
