Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCA240DB160DIODE MODULE GEN PURP 1600V 240A |
10 |
|
Datasheet |
- | Module | Tray | Active | 1 Pair Series Connection | Standard | 1600 V | 240A | 1.35 V @ 750 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | - |
|
DKR200AB60DIODE MODULE GEN PURP 600V 100A |
46 |
|
Datasheet |
- | Module | Tray | Active | 1 Pair Common Cathode | Standard | 600 V | 100A (DC) | 1.4 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 200 mA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | - |
|
5962-90538012ADIODE ARRAY SCHOTT 50V 1A 20LCCC |
22 |
|
Datasheet |
- | 20-CLCC | Bulk | Active | 4 Independent | Schottky | 50 V | 1A | 1.2 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 20 ns | 100 µA @ 40 V | -55°C ~ 125°C | - | - | Surface Mount | 20-LCCC (8.89x8.89) |
|
CD411699CDIODE MODULE GEN PURP 1600V 100A |
35 |
|
Datasheet |
POW-R-BLOK™ | Module | Bulk | Active | 1 Pair Series Connection | Standard | 1600 V | 100A | - | Standard Recovery >500ns, > 200mA (Io) | - | 8 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | - |
|
CD412099CDIODE MOD GP 2000V 100A POWRBLOK |
10 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Active | 1 Pair Series Connection | Standard | 2000 V | 100A | 1.65 V @ 330 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 2000 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
DKR400AB60DIODE MODULE GEN PURP 600V 200A |
54 |
|
Datasheet |
- | Module | Tray | Active | 1 Pair Common Cathode | Standard | 600 V | 200A | 1.4 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 300 mA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | - |
|
DD170N16SHPSA1DIODE MOD GP 1600V 165A BGPB34SB |
6,243 |
|
Datasheet |
- | Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1600 V | 165A | - | - | - | 9 mA @ 1600 V | 135°C (Max) | - | - | Chassis Mount | BG-PB34SB-1 |
|
MF300K06F3-BPDIODE MODULE GP 600V 150A F3 |
10 |
|
Datasheet |
- | F3 Module | Tray | Active | 1 Pair Common Anode | Standard | 600 V | 150A | 1.4 V @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | 130 ns | 1 mA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | F3 |
|

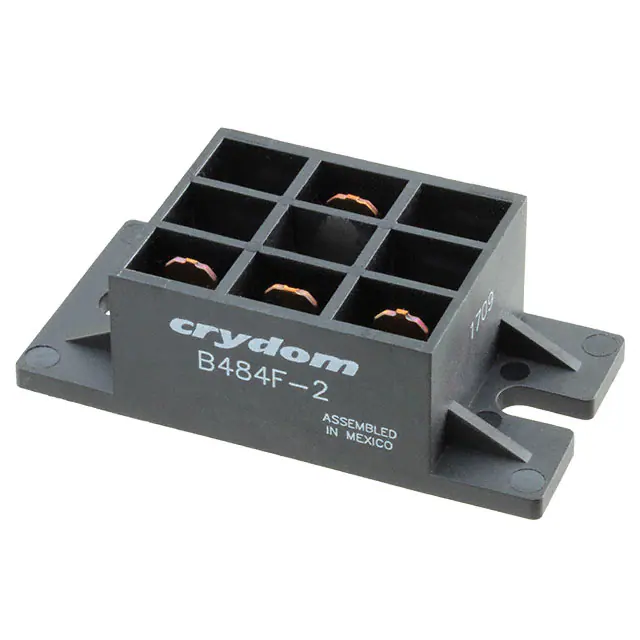

B484F-2DIODE MODULE GEN PURP 1200V 50A |
4,580 |
|
Datasheet |
B48 | B48 Module | Bulk | Obsolete | 3 Common Cathode | Standard | 1200 V | 50A (DC) | 1.35 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | - |
|
M5060CC600DIODE MODULE GP 600V 60A MODULE |
10 |
|
Datasheet |
- | Module | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 60A (DC) | 1.35 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
403CNQ100DIODE MODULE SCHOTTKY 100V PRM4 |
9 |
|
Datasheet |
- | PRM4 | Bulk | Active | 1 Pair Common Cathode | Schottky | 100 V | - | 830 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 100 V | -55°C ~ 175°C | - | - | Chassis Mount | PRM4 (Isolated) |
|
408CNQ060DIODE MODULE SCHOTTKY 60V PRM4 |
8 |
|
Datasheet |
- | PRM4 | Bulk | Active | 1 Pair Common Cathode | Schottky | 60 V | - | 680 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2.2 mA @ 60 V | -55°C ~ 150°C | - | - | Chassis Mount | PRM4 (Isolated) |
|
DD200KB160DIODE MODULE GEN PURP 1600V 200A |
6 |
|
Datasheet |
- | Module | Tray | Active | 1 Pair Series Connection | Standard | 1600 V | 200A | 1.3 V @ 620 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | - |
|
APT2X21DC60JDIODE MOD SIC 600V 20A SOT-227 |
4 |
|
- |
- | ISOTOP | Bulk | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 600 V | 20A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 400 µA @ 600 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
FRD100CA120DIODE MODULE GEN PURP 1200V 100A |
5 |
|
Datasheet |
- | Module | Tray | Active | 1 Pair Common Cathode | Standard | 1200 V | 100A (DC) | 1.8 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 5 mA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | - |
|
MSC2X100SDA070JDIODE MOD SIC 700V 100A SOT227 |
11 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 700 V | 100A (DC) | 1.8 V @ 100 A | No Recovery Time > 500mA (Io) | 0 ns | 400 µA @ 700 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 (ISOTOP®) |
|
|
M50100CC400DIODE MODULE GP 400V 100A MODULE |
2,170 |
|
Datasheet |
- | Module | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 100A | 1.2 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
CD611616BDIODE MOD GP 1600V 160A POWRBLOK |
2 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1600 V | 160A | 1.43 V @ 520 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
DDB6U144N16RBOSA1DIODE MODULE GP 1600V MODULE |
3 |
|
Datasheet |
- | Module | Bulk | Discontinued at Digi-Key | 3 Independent | Standard | 1600 V | - | 1.65 V @ 150 A | - | - | 5 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | Module |
|
B484G-2DIODE MODULE GEN PURP 1400V 50A |
3,112 |
|
Datasheet |
B48 | B48 Module | Bulk | Obsolete | 3 Common Cathode | Standard | 1400 V | 50A (DC) | 1.35 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | - |
Diode Arrays Electronic Components
Explore Diode Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
