Diode Arrays

Mfr. Part #	Availability	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Diode Configuration	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Grade	Qualification	Mounting Type	Supplier Device Package
203DMQ100 DIODE MOD SCHOTT 100V 100A PRM4 SMC Diode Solutions	5	RFQ	Datasheet	-	PRM4	Box	Active	1 Pair Series Connection	Schottky	100 V	100A	860 mV @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	-	3 mA @ 100 V	-55°C ~ 175°C	-	-	Chassis Mount	PRM4 (Isolated)
440CMQ030 DIODE MODULE SCHOT 30V 220A PRM4 SMC Diode Solutions	11	RFQ	Datasheet	-	PRM4	Bulk	Active	1 Pair Common Cathode	Schottky	30 V	220A	500 mV @ 220 A	Fast Recovery =< 500ns, > 200mA (Io)	-	20 mA @ 30 V	-55°C ~ 150°C	-	-	Chassis Mount	PRM4 (Isolated)
400CNQ045 DIODE MODULE SCHOTTKY 45V PRM4 SMC Diode Solutions	9	RFQ	Datasheet	-	PRM4	Bulk	Active	1 Pair Common Cathode	Schottky	45 V	-	570 mV @ 200 A	Fast Recovery =< 500ns, > 200mA (Io)	-	20 mA @ 45 V	-55°C ~ 150°C	-	-	Chassis Mount	PRM4 (Isolated)
VS-VSKD166/16PBF DIODE MOD GP 1600V 82.5A INTAPAK Vishay General Semiconductor - Diodes Division	11	RFQ	Datasheet	-	INT-A-Pak	Bulk	Active	1 Pair Common Cathode	Standard	1600 V	82.5A	-	Standard Recovery >500ns, > 200mA (Io)	-	20 mA @ 1400 V	-40°C ~ 150°C	-	-	Chassis Mount	INT-A-PAK
VS-VSKC236/04PBF DIODE MOD GP 400V 115A INTAPAK Vishay General Semiconductor - Diodes Division	8	RFQ	Datasheet	-	INT-A-Pak	Bulk	Active	1 Pair Common Cathode	Standard	400 V	115A	-	Standard Recovery >500ns, > 200mA (Io)	-	20 mA @ 400 V	-55°C ~ 175°C	-	-	Chassis Mount	INT-A-PAK
401CNQ045 DIODE MODULE SCHOTTKY 45V PRM4 SMC Diode Solutions	11	RFQ	Datasheet	-	PRM4	Bulk	Active	1 Pair Common Cathode	Schottky	45 V	-	670 mV @ 200 A	Fast Recovery =< 500ns, > 200mA (Io)	-	20 mA @ 45 V	-55°C ~ 175°C	-	-	Chassis Mount	PRM4 (Isolated)
406CMQ200 DIODE MODULE SCHOTTKY 200V PRM4 SMC Diode Solutions	9	RFQ	Datasheet	-	PRM4	Bulk	Active	1 Pair Common Cathode	Schottky	200 V	-	990 mV @ 200 A	Fast Recovery =< 500ns, > 200mA (Io)	-	10 mA @ 200 V	-55°C ~ 175°C	-	-	Chassis Mount	PRM4 (Isolated)
400CMQ045 DIODE MODULE SCHOTTKY 45V PRM4 SMC Diode Solutions	5	RFQ	Datasheet	-	PRM4	Bulk	Active	1 Pair Common Cathode	Schottky	45 V	-	570 mV @ 200 A	Fast Recovery =< 500ns, > 200mA (Io)	-	20 mA @ 45 V	-55°C ~ 150°C	-	-	Chassis Mount	PRM4 (Isolated)
MSC2X31SDA170J DIODE MOD SIC 1700V 30A SOT227 Microchip Technology	16	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	SiC (Silicon Carbide) Schottky	1700 V	30A	1.8 V @ 30 A	No Recovery Time > 500mA (Io)	0 ns	200 µA @ 1700 V	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227 (ISOTOP®)
MSC2X100SDA120J DIODE MOD SIC 1200V 100A SOT227 Microchip Technology	10	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	SiC (Silicon Carbide) Schottky	1200 V	100A (DC)	1.8 V @ 100 A	No Recovery Time > 500mA (Io)	0 ns	400 µA @ 1200 V	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227 (ISOTOP®)
F1842CCD400 DIODE MODULE GP 400V 40A MODULE Sensata-Crydom	1	RFQ	Datasheet	-	Module	Bulk	Not For New Designs	1 Pair Common Cathode	Standard	400 V	40A (DC)	1.4 V @ 120 A	Standard Recovery >500ns, > 200mA (Io)	-	-	-40°C ~ 125°C	-	-	Chassis Mount	Module
DD104N16KHPSA1 DIODE MOD GP 1600V 104A MOD Infineon Technologies	12	RFQ	Datasheet	-	Module	Tray	Active	1 Pair Common Cathode	Standard	1600 V	104A	1.4 V @ 300 A	Standard Recovery >500ns, > 200mA (Io)	-	20 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	Module
MSCDC100KK70D1PAG DIODE MODULE SIC 700V 100A D1P Microchip Technology	7	RFQ	Datasheet	-	Module	Box	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	700 V	100A	1.8 V @ 100 A	No Recovery Time > 500mA (Io)	0 ns	400 µA @ 700 V	-40°C ~ 175°C	-	-	Chassis Mount	D1P
MDD312-12N1 DIODE MODULE GP 1200V 310A Y1-CU IXYS	2	RFQ	Datasheet	-	Y1-CU	Box	Active	1 Pair Series Connection	Standard	1200 V	310A	1.32 V @ 600 A	Standard Recovery >500ns, > 200mA (Io)	-	30 mA @ 1200 V	-40°C ~ 150°C	-	-	Chassis Mount	Y1-CU

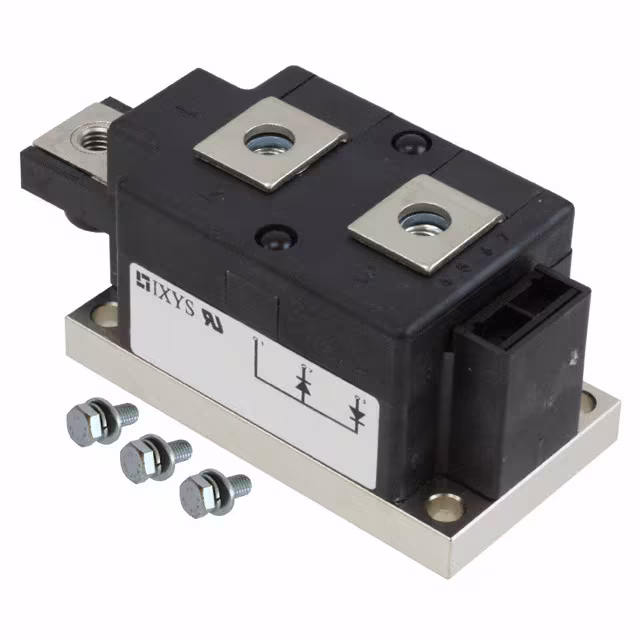

MDD312-16N1 DIODE MODULE GP 1600V 310A Y1-CU IXYS	2	RFQ	Datasheet	-	Y1-CU	Box	Active	1 Pair Series Connection	Standard	1600 V	310A	1.32 V @ 600 A	Standard Recovery >500ns, > 200mA (Io)	-	30 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	Y1-CU
MDD255-22N1 DIODE MODULE GP 2200V 270A Y1-CU IXYS	3	RFQ	Datasheet	-	Y1-CU	Box	Active	1 Pair Series Connection	Standard	2200 V	270A	1.4 V @ 600 A	Standard Recovery >500ns, > 200mA (Io)	-	30 mA @ 2200 V	-40°C ~ 150°C	-	-	Chassis Mount	Y1-CU
MSCDC200KK70D1PAG DIODE MODULE SIC 700V 200A D1P Microchip Technology	18	RFQ	Datasheet	-	Module	Box	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	700 V	200A	1.8 V @ 200 A	No Recovery Time > 500mA (Io)	0 ns	800 µA @ 700 V	-40°C ~ 175°C	-	-	Chassis Mount	D1P
MSCDC150KK120D1PAG DIODE MODULE SIC 1200V 150A D1P Microchip Technology	19	RFQ	Datasheet	-	Module	Box	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	1200 V	150A	1.8 V @ 150 A	No Recovery Time > 500mA (Io)	0 ns	600 µA @ 1200 V	-40°C ~ 175°C	-	-	Chassis Mount	D1P
MSCDC150A120D1PAG DIODE MODULE SIC 1200V 150A D1P Microchip Technology	4	RFQ	Datasheet	-	Module	Box	Active	1 Pair Series Connection	SiC (Silicon Carbide) Schottky	1200 V	150A	1.8 V @ 150 A	No Recovery Time > 500mA (Io)	0 ns	600 µA @ 1200 V	-40°C ~ 175°C	-	-	Chassis Mount	D1P
MDD175-34N1 DIODE MODULE GP 3400V 240A Y1-CU IXYS	3	RFQ	Datasheet	-	Y1-CU	Box	Active	1 Pair Series Connection	Standard	3400 V	240A	1.07 V @ 200 A	Standard Recovery >500ns, > 200mA (Io)	-	1 mA @ 3400 V	-40°C ~ 150°C	-	-	Chassis Mount	Y1-CU

Total 15087 Record«Prev 1... 215 216 217 218219220 221 222...755 Next»
